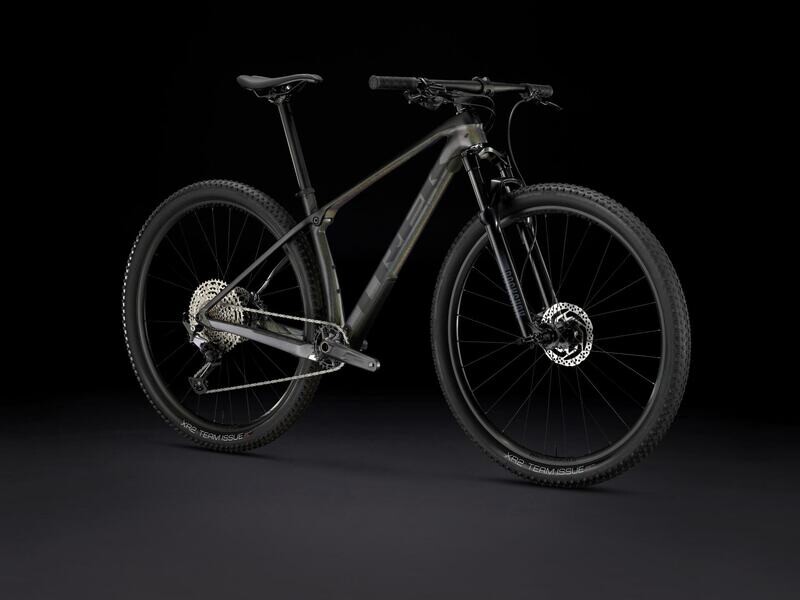

Procaliber 9.5 is a lightweight carbon hardtail with the unique advantage of our trail-smoothing IsoSpeed decoupler. It's the most affordable carbon model in the Procaliber mountain bike family, and it's built for speed and efficiency on singletrack with a wide-range Shimano Deore 1x12 drive train, RockShox Judy SL fork and speedy 29er wheels.
[tab name='FEATURES']
You love riding singletrack. You’ve entered several XC races, enjoyed every single one and want to give racing a serious go. You’re looking for a solid carbon race bike at an affordable price.
Procaliber 9.5 gives you the advantages of a carbon race bike with IsoSpeed at a wallet-friendly price and it gives you solid tech where it matters most.
Why you'll love it

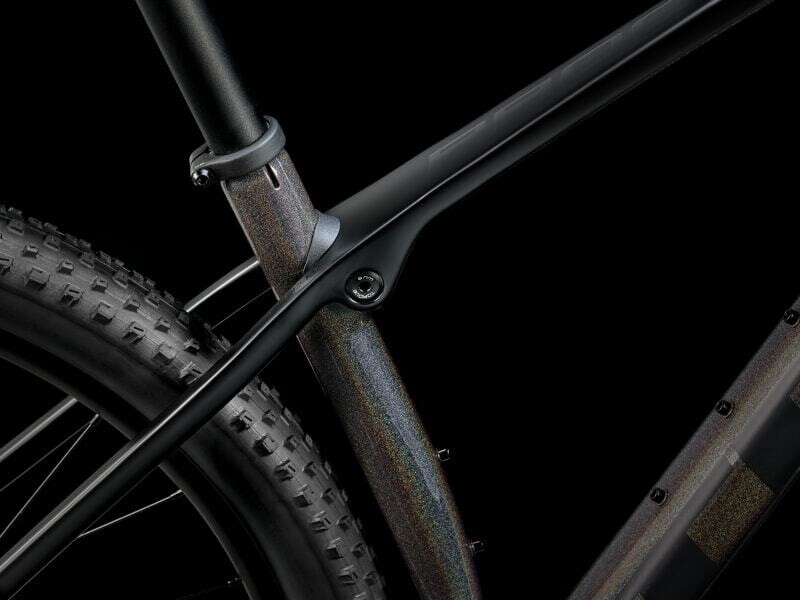

Our innovative decoupler allows the seat tube to rotate independently from the top-tube-to-seatstay junction, increasing vertical compliance without compromising pedalling efficiency.
Trek's mountain-specific carbon fibre is tougher carbon, with unique materials and lay-up procedures, Trek's advanced engineering, and a higher standard of testing.

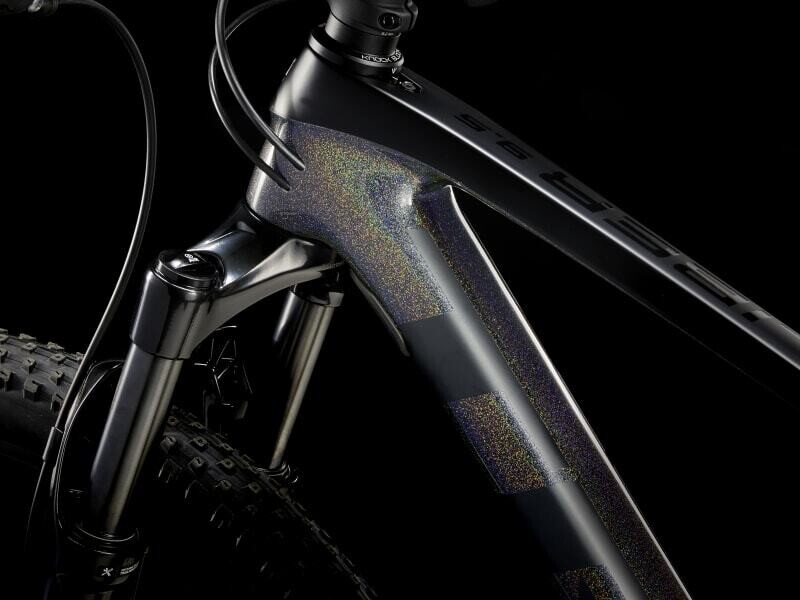

Straight Shot downtube
Straight Shot downtube gives you an extra-stiff frame without adding any weight, so you can stick your line through the rough stuff and still fly up the next climb.

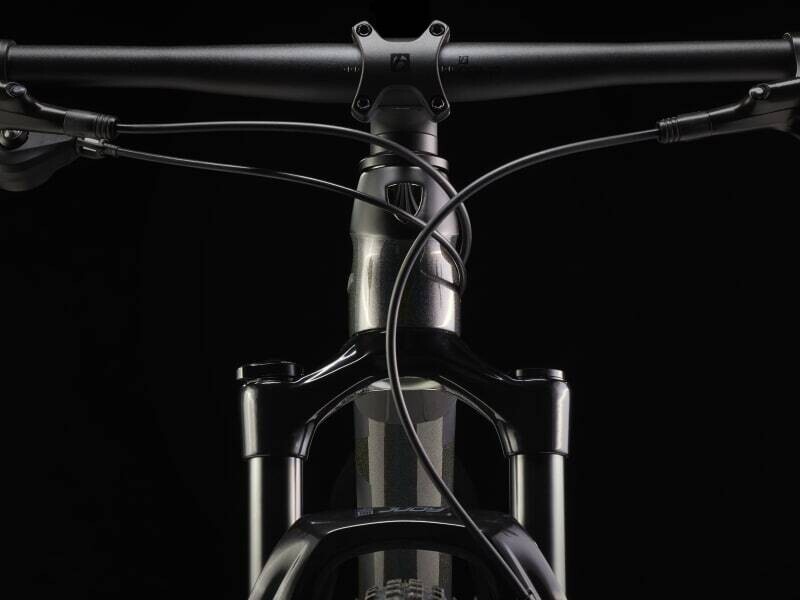

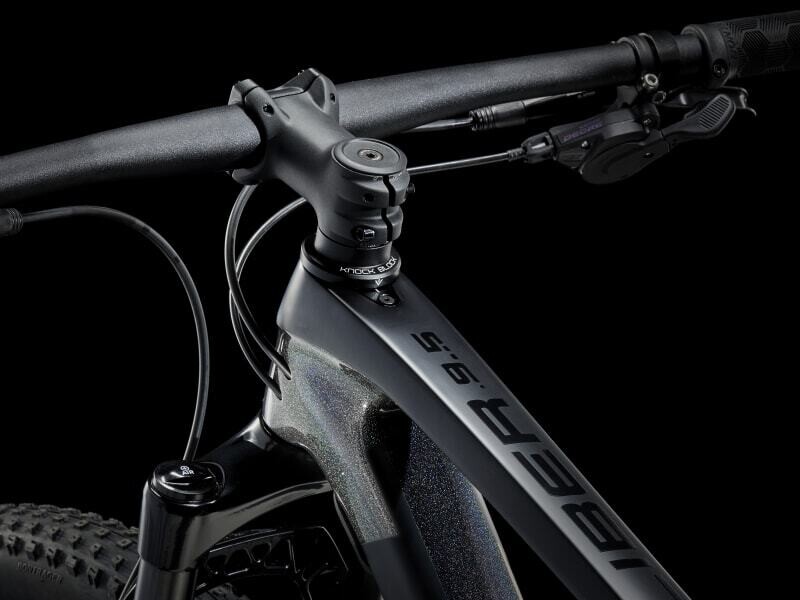

Knock Block has your frame's back when things go wrong. It prevents your handlebars from spinning all the way around in a crash, so your hoses won't get yanked and your controls won't hit the top tube.
[tab name= " SPECIFICATIONS"]
*spec applies to all sizes unless otherwise noted
| Frame | OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post-mount brake, Boost148 |
|---|---|
| Fork | RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15 mm Maxle Stealth, 100 mm travel |
| Max compatible fork travel | 110mm (515 axle-to-crown) |
Wheels
| Wheel front |
Bontrager Kovee TLR rim/DC-611 Boost hub, 29'', 28H, 15 Gauge Spokes, Black/Black
|
| Wheel rear |
Bontrager Kovee TLR rim/MST148A Boost hub, 29'', 28H, 15 Gauge Spokes, Micro Spline Freehub, Black rim graphics, spokes, and nipples
|
| Hub front |
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
|
| Hub rear |
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
|
| Skewer rear |
Bontrager Switch thru-axle, removable lever
|
| Rim |
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
|
| Tyre |

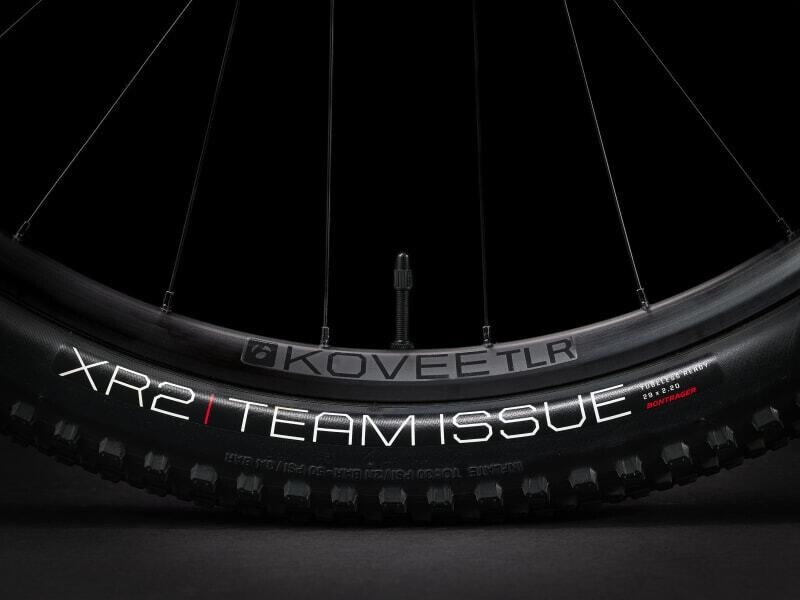

Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20"
|
| Tyre part |
Bontrager TLR sealant, 180 ml/6 oz
|
| Rim strip | Bontrager TLR |
| Max tyre size |
Frame: 29x2.40" Fork: See manufacturer
|
| Shifter | Shimano Deore M6100, 12-speed |

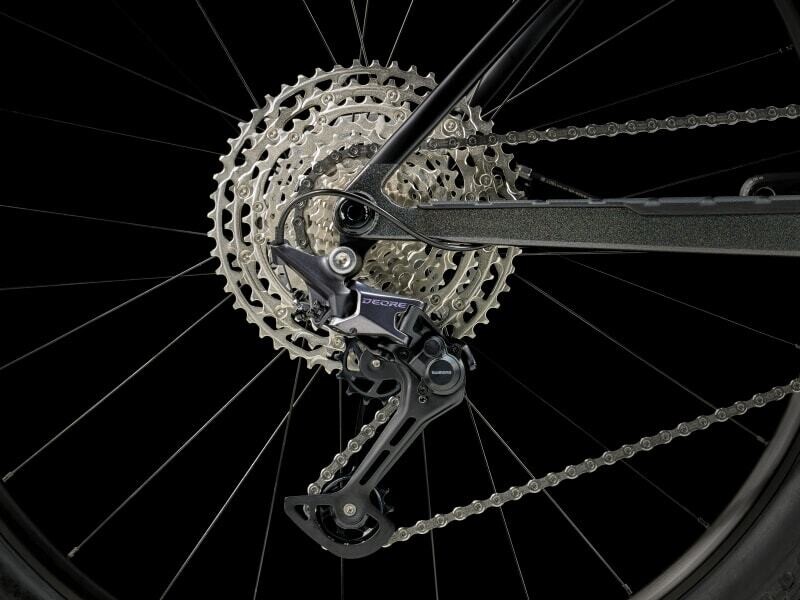

| Rear derailleur | Shimano Deore M6100, long cage |
|
*Crank
|

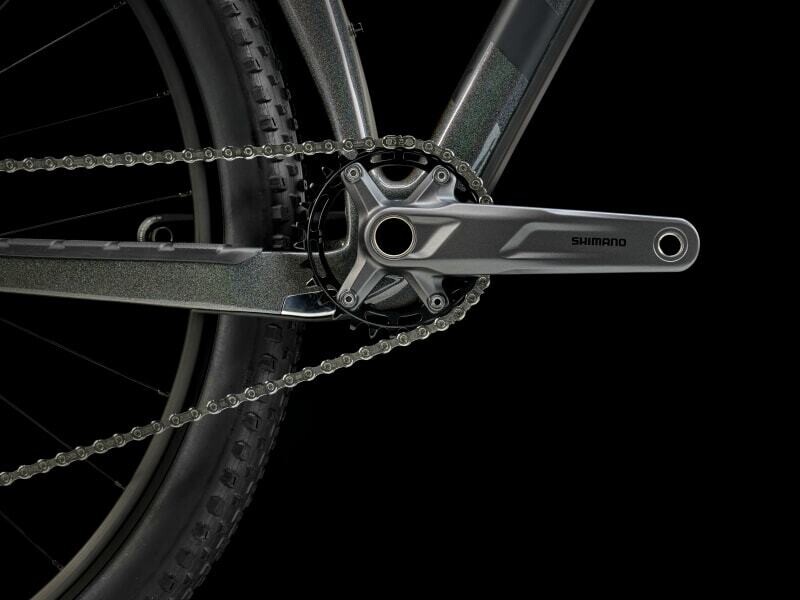

Size: M Shimano MT511, 30T steel ring, Boost, 170 mm length |
| Size: M/L, L, XL Shimano MT511, 30T steel ring, Boost, 175 mm length |
|
| Bottom bracket | Shimano MT500, 92 mm, PressFit |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Max. chainring size | 36T, Min 30T |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|
*Seatpost
|
Size: M Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length |
| Size: M/L, L, XL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
|
*Handlebar
|
Size: M, M/L Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width |
| Size: L, XL Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
|

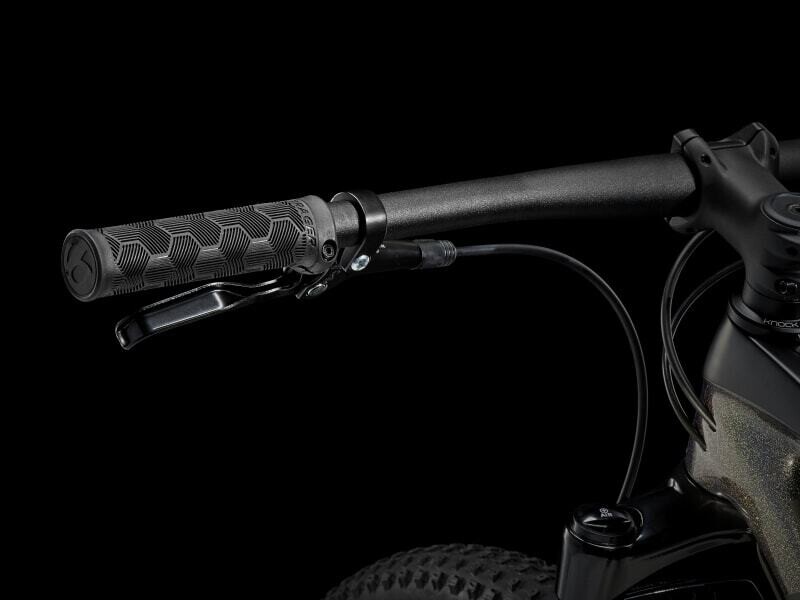

| Grips | Bontrager XR Trail Comp, nylon lock-on |
|
*Stem
|
Size: M, M/L Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 70 mm length |
| Size: L, XL Bontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 80 mm length |
|
| Head set | Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom |
| Brake | Shimano MT200 hydraulic disc |
|

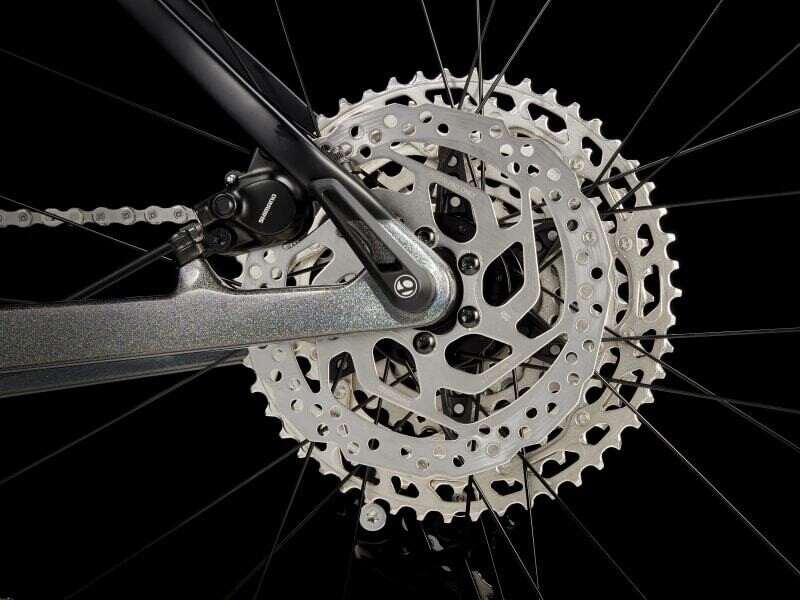

*Brake rotor
|
Size: M, M/L, L, XL Shimano RT26, 6-bolt,160 mm |
| Size: L, XL Shimano RT26, 6-bolt,180 mm |
Weight
| Weight | M - 25.66 lb / 11.64 kg (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
[tab name= " SIZING AND GEOMETRY"]
The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit. That’s why you’ll see some overlap in our recommendations. Not every rider who’s 5´8˝, for example, will fit on the same size bike. The best way to find your perfect fit is to consult the experts at your local retailer.
| S | M | M/L | L | XL | 2XL | |
| Rider Height | 153.0 - 166.0 cm | 161.0 - 172.0 cm | 165.0 - 179.0 cm | 177.0 - 188.0 cm | 186.0 - 196.0 cm |
195.0 - 203.0 cm
|
| 5'0.2" - 5'5.4" | 5'3.4" - 5'7.7" | 5'5.0" - 5'10.5" | 5'9.7" - 6'2.0" | 6'1.2" - 6'5.2" | 6'4.8" - 6'7.9" | |
| Inseam | 72.0 - 79.0 cm | 76.0 - 81.0 cm | 77.0 - 84.0 cm | 83.0 - 88.0 cm | 87.0 - 92.0 cm | 92.0 - 95.0 cm |
| 28.3" - 31.1" | 29.9" - 31.9" | 30.3" - 33.1" | 32.7" - 34.6" | 34.3" - 36.2" | 36.2" - 37.4" |
| Frame size number | 17.5 | 18.5 | 19.5 | 21.5 |
| Frame size letter | M | ML | L | XL |
| Wheel size | 29" | 29" | 29" | 29" |
| A — Seat tube | 41.9 | 44.4 | 47 | 51 |
| B — Seat tube angle | 72.8° | 72.8° | 72.8° | 72.8° |
| Effective seat tube angle | 73.8° | 73.8° | 73.8° | 73.8° |
| C — Head tube length | 9 | 9 | 9 | 10.5 |
| D — Head angle | 68.8° | 68.8° | 68.8° | 68.8° |
| E — Effective top tube | 59.5 | 61 | 62.5 | 65.9 |
| F — Bottom bracket height | 31.3 | 31.3 | 31.3 | 31.3 |
| G — Bottom bracket drop | 6 | 6 | 6 | 6 |
| H — Chainstay length | 43.2 | 43.2 | 43.2 | 43.2 |
| I — Offset | 4.2 | 4.2 | 4.2 | 4.2 |
| J — Trail | 10 | 10 | 10 | 10 |
| K — Wheelbase | 110.3 | 111.8 | 113.3 | 116.8 |
| L — Standover | 75.5 | 76.5 | 78.4 | 81.4 |
| M — Frame reach | 42 | 43.5 | 45 | 48 |
| N — Frame stack | 60 | 60 | 60 | 61.4 |
All measurements provided in cm unless otherwise stated.x
