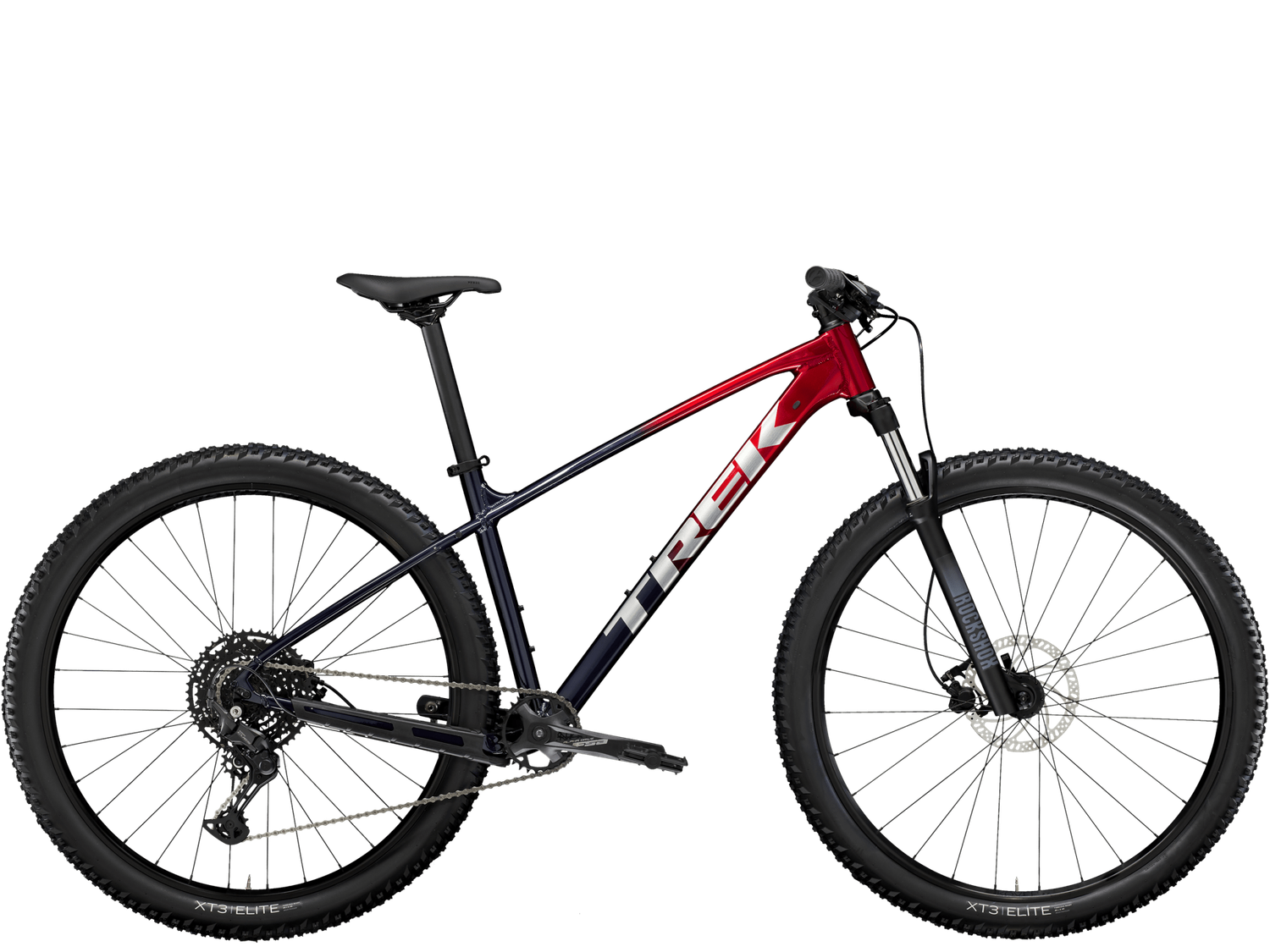

The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the upgraded suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.
It's right for you if...
You want a trail bike that's dialled for building confidence on the dirt, and versatile enough for commuting to work or school.
The tech you get
A lightweight aluminium frame with modern trail riding geometry and internal routing that keeps cables protected and keeps the bike looking sleek. A 100 mm RockShox Judy front suspension fork that cushions rocks, roots and bumps in the trail, 10-speed fuss-free Shimano CUES shifting and the serious stopping power of hydraulic disc brakes.The final word
The Marlin 6 is an ideal trail bike for riders who want to progress on the dirt, and want a bike that can keep them rolling off of the trail, too.
Why you'll love it
*Please note - spec applies to all sizes unless listed separately
| Frameset | |
| Frame | Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|
*Fork
|
Size: S RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel |
| Size: M , ML , L , XL RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
|
| Max compatible fork travel | 120mm, XXS: 80mm |
| Wheels | |
| Hub front | Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 173x5 mm QR |
| Rim | Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
|
*Tyre
|
Size: S Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.35" |
| Size: S Maxxis IKON, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.35'' |
|
| Size: M , ML , L Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.35" |
|
| Size: M , ML , L , XL Maxxis IKON, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.35'' |
|
| Max tyre size | Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
| Drivetrain | |
| Shifter | Shimano U6000, 10-speed |
| Rear derailleur | Shimano CUES U6000 GS |
|
*Crank
|
Size: S , M , ML FSA Alpha Drive, 30T, 170 mm length |
| Size: L , XL FSA Alpha Drive, 30T, 175 mm length |
|
| Bottom bracket | FSA, 73 mm, threaded cartridge, 122.5 mm spindle |
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
| Chain | Shimano LG500 |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: See FAQ, 2x: 36T, 3x: 42T |
| Components | |
| Saddle | Bontrager Verse Short, stainless steel rails |
|
*Seatpost
|
Size: S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
| Size: ML , L , XL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
|
*Handlebar
|
Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
| Size: M , ML , L , XL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
|
*Stem
|
Size: S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
| Size: M , ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
|
| Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length |
|
| Head set | Semi-integrated, 1-1/8" |
| Brake rotor | Tektro, 6-bolt, 160mm |
|
*Brake Set
|
Size: S Tektro HD-M276 hydraulic disc, short reach |
| Size: M , ML , L , XL Tektro HD-M275 hydraulic disc |
|
| Rotor size | Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
| Weight | |
| Weight | M - 14.50 kg / 31.97 lbs (with tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
How tall are you?
To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
What is your inside leg?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.
| Size | 2XS | XS | S | M | ML | L | XL | 2XL |
| Rider Height | 135 - 145 cm 4'5" - 4'9" |
145 - 155 cm 4'9" - 5'1" |
155 - 165 cm 5'1" - 5'5" |
165 - 176 cm 5'5" - 5'9" |
173 - 180 cm 5'8" - 5'11" |
177 - 188 cm 5'10" - 6'2" |
188 - 195 cm 6'2" - 6'5" |
195 - 203 cm 6'5" - 6'8" |
| Inseam | 64 - 68 cm 25" - 27" |
69 - 73 cm 27" - 29" |
74 - 78 cm 29" - 31" |
79 - 83 cm 31" - 33" |
81 - 86 cm 32" - 34" |
84 - 89 cm 33" - 35" |
89 - 91 cm 35" - 36" |
91 - 97 cm 36" - 38" |
All measurements provided in cm unless otherwise stated.

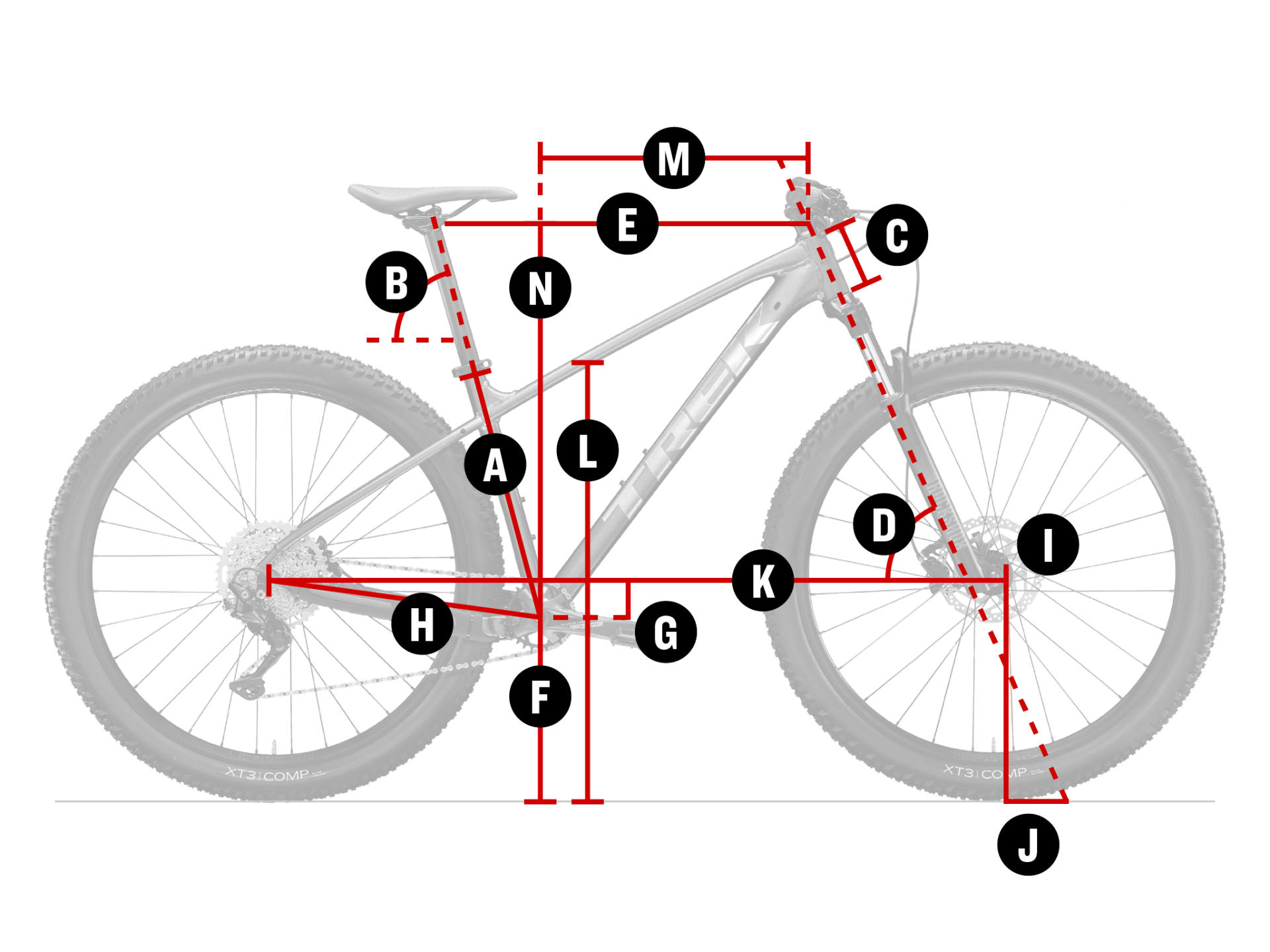

| Frame size number | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
| Frame size letter | S | M | ML | L | XL |
| Wheel size | 27.5" | 29" | 29" | 29" | 29" |
| A — Seat tube | 37 | 42 | 43.5 | 45 | 50 |
| B — Seat tube angle | 73.8° | 73.4° | 73.4° | 73.4° | 73.4° |
| Effective seat tube angle | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° |
| C — Head tube length | 10 | 10.5 | 11 | 11.5 | 13.5 |
| D — Head angle | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| E — Effective top tube | 57.9 | 61.5 | 63.1 | 64.7 | 67.8 |
| F — Bottom bracket height | 31.3 | 30.8 | 30.8 | 30.8 | 30.8 |
| G — Bottom bracket drop | 4.5 | 6 | 6 | 6 | 6 |
| H — Chainstay length | 43.3 | 43.8 | 43.8 | 43.8 | 43.8 |
| I — Offset | 4.2 | 4.6 | 4.6 | 4.6 | 4.6 |
| J — Trail | 11 | 11 | 11 | 11 | 11 |
| K — Wheelbase | 112.1 | 116.3 | 118 | 119.7 | 123 |
| L — Standover | 69.2 | 74.7 | 75.9 | 77.1 | 79.1 |
| M — Frame reach | 41.5 | 44 | 45.5 | 47 | 49.5 |
| N — Frame stack | 57.2 | 60.9 | 61.4 | 61.8 | 63.7 |
