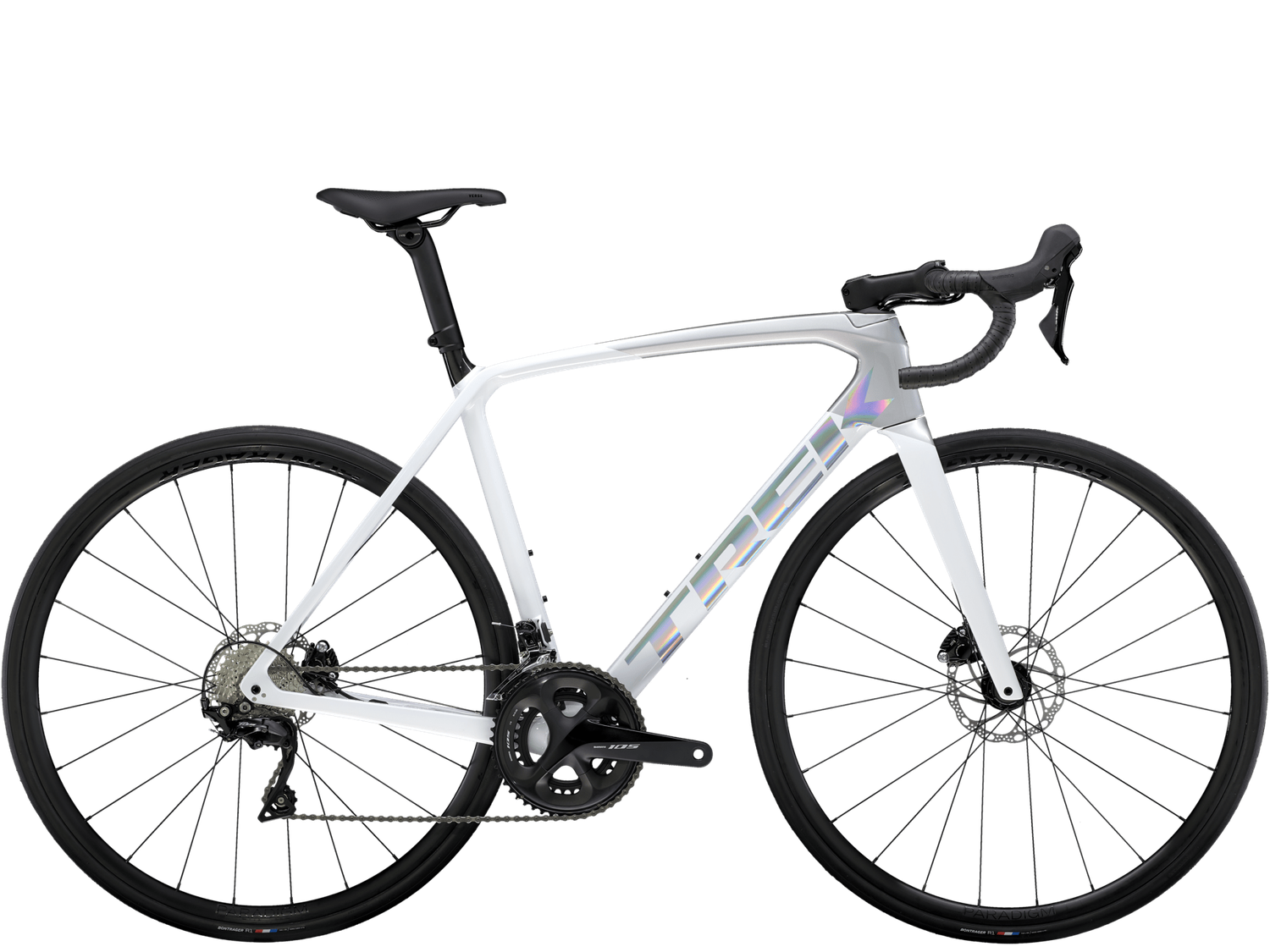

Trek Emonda SL 4 - Trek White/Quicksilver
SKU 5318026
₹195,199.00
SIZE
In stock
1
Save this product for later
Trek Emonda SL 4 - Trek White/Quicksilver
Product Details
Brand: TREK
UPC: 601842958858
IN-STORE PICKUP ONLY
Trek Bicycles & Bontrager Spares/Accessories are only available for in-store pickup from our Pune Bike Shop.
Please Call or Whatsapp (+91) 7020425618 to talk to our Product Specialists.
The Émonda SL 4 is a lightweight carbon road bike with a balanced ride quality, superior handling characteristics and the added benefit of free speed thanks to aero tube shaping. It's a great choice for century rides on hilly terrain, windy flats and speedy descents.
It's right for you if...
You want a lightweight carbon road bike that doesn't break the bank. You're new to racing or a dedicated road cyclist who wants the vibration-damping weight savings of carbon and reliable parts that you can upgrade over time.
The tech you get
A lightweight and aerodynamic 500 Series OCLV Carbon frame and fork, a full Shimano 105 11-speed drivetrain, powerful flat-mount Shimano hydraulic disc brakes, internal cable routing for clean looks and Bontrager Paradigm SL Tubeless Ready wheels.
The final word
Émonda SL 4 is a lightweight aero road bike that's just downright fast. It loves to soar across straightaways and up canyon climbs while delivering the control and stopping power you'll need for big descents.
Why you'll love it
- You get a lot of bike for your buck: Émonda SL 4 delivers a lightweight frame, race-ready geometry, and disc brakes for control and fun on every ride
- Aerodynamic tube shaping makes this our fastest Émonda SL platform ever – on flats and climbs alike
- It makes the perfect high-value upgrade from an aluminium road bike
- Hydraulic disc brakes give you stopping power and control in any weather, on any road
All-new aero design
Faster on climbs, faster on the flats. The aero tube shapes on the all-new Émonda give you an advantage wherever you’re riding. Plus, Émonda SLR is equipped with a sleek new Aeolus RSL bar/stem for front-end aero performance.
Outstanding bikes for everyone
Every rider – regardless of gender, body type, riding style or ability – deserves a great bike. The all-new Émonda is equipped with size-specific components that deliver a great fit to competitive riders of all genders.
Don’t forget your pedals
This bike doesn’t come with pedals because you’ll have a better time on your new bike if you choose your own. See the pedal guide to find the best pedals for your riding style. We recommend clipless road pedals for control and efficiency.
SPECIFICATIONS
*Please note - spec applies to all sizes unless listed separately
| Frameset | |
| Frame | Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle |
| Fork | Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle |
| Weight | |
| Weight | 56 - 9.38 kg / 20.68 lb |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| Drivetrain | |
| Shifter | Shimano 105 R7020, 11-speed |
| Front derailleur | Shimano 105 R7000, braze-on |
| Rear derailleur | Shimano 105 R7000, short cage, 30T max cog |
|
*Crank
|
Size: 47 Shimano 105 R7000, 50/34 (compact), 165 mm length |
| Size: 50, 52 Shimano 105 R7000, 50/34 (compact), 170 mm length |
|
| Size: 56 Shimano 105 R7000, 50/34 (compact), 175 mm length |
|
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 R7000, 11-30, 11 speed |
| Chain | Shimano 105 HG601, 11-speed |
| Max. chainring size | 1x: 50T, 2x: 52/36 |
| Wheels | |
| Hub front | Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle |
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 mm |
| Max tyre size | 28 mm |
| Components | |
| Saddle | Verse Short, steel rails, 145 mm width |
|
*Seatpost
|
Size: 47, 50, 52, 54 Bontrager alloy seat mast cap, 10 mm offset, short length |
| Size: 56 Bontrager alloy seat mast cap, 10 mm offset, tall length |
|
|
*Handlebar
|
Size: 47, 50 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width |
| Size: 52 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width |
|
| Size: 54, 56 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
|
*Stem
|
Size: 47 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Size: 50 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
| Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
| Size: 56 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|
| Brake | Shimano 105 hydraulic disc, flat mount |
| Brake rotor | Tektro wave, 6-bolt, 160 mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
SIZING
| Size | 47 | 50 | 52 | 54 | 56 | 58 | 60 | 62 |
| Rider Height | 152 - 158 cm 5'0" - 5'2" |
158 - 163 cm 5'2" - 5'4" |
163 - 168 cm 5'4" - 5'6" |
168 - 174 cm 5'6" - 5'9" |
174 - 180 cm 5'9" - 5'11" |
180 - 185 cm 5'11" - 6'1" |
185 - 190 cm 6'1" - 6'3" |
190 - 195 cm 6'3" - 6'5" |
| Inseam | 71 - 75 cm 28" - 30" |
74 - 77 cm 29" - 30" |
76 - 79 cm 30" - 31" |
78 - 82 cm 31" - 32" |
81 - 85 cm 32" - 33" |
84 - 87 cm 33" - 34" |
86 - 90 cm 34" - 35" |
89 - 92 cm 35" - 36" |

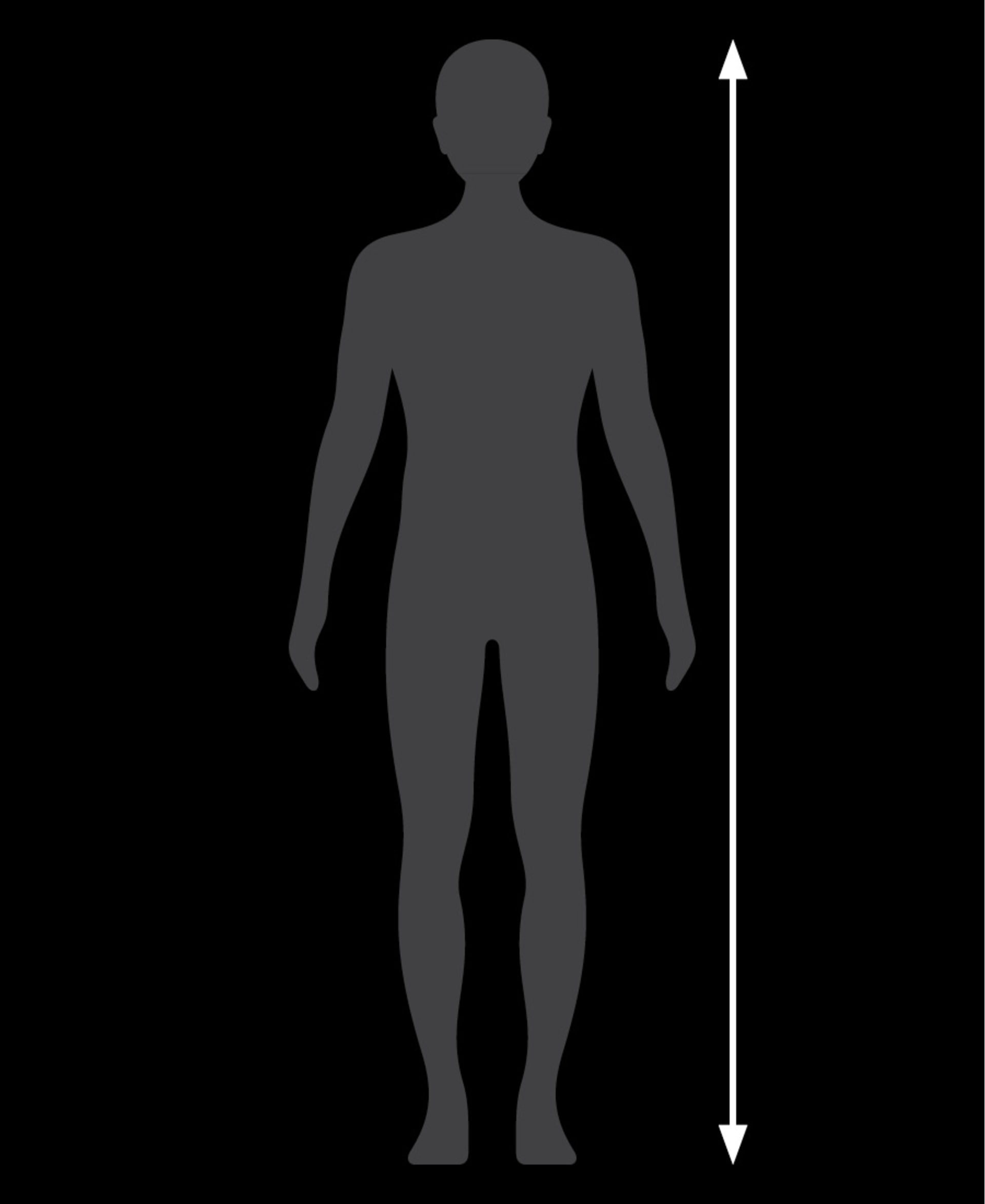

How tall are you?
To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

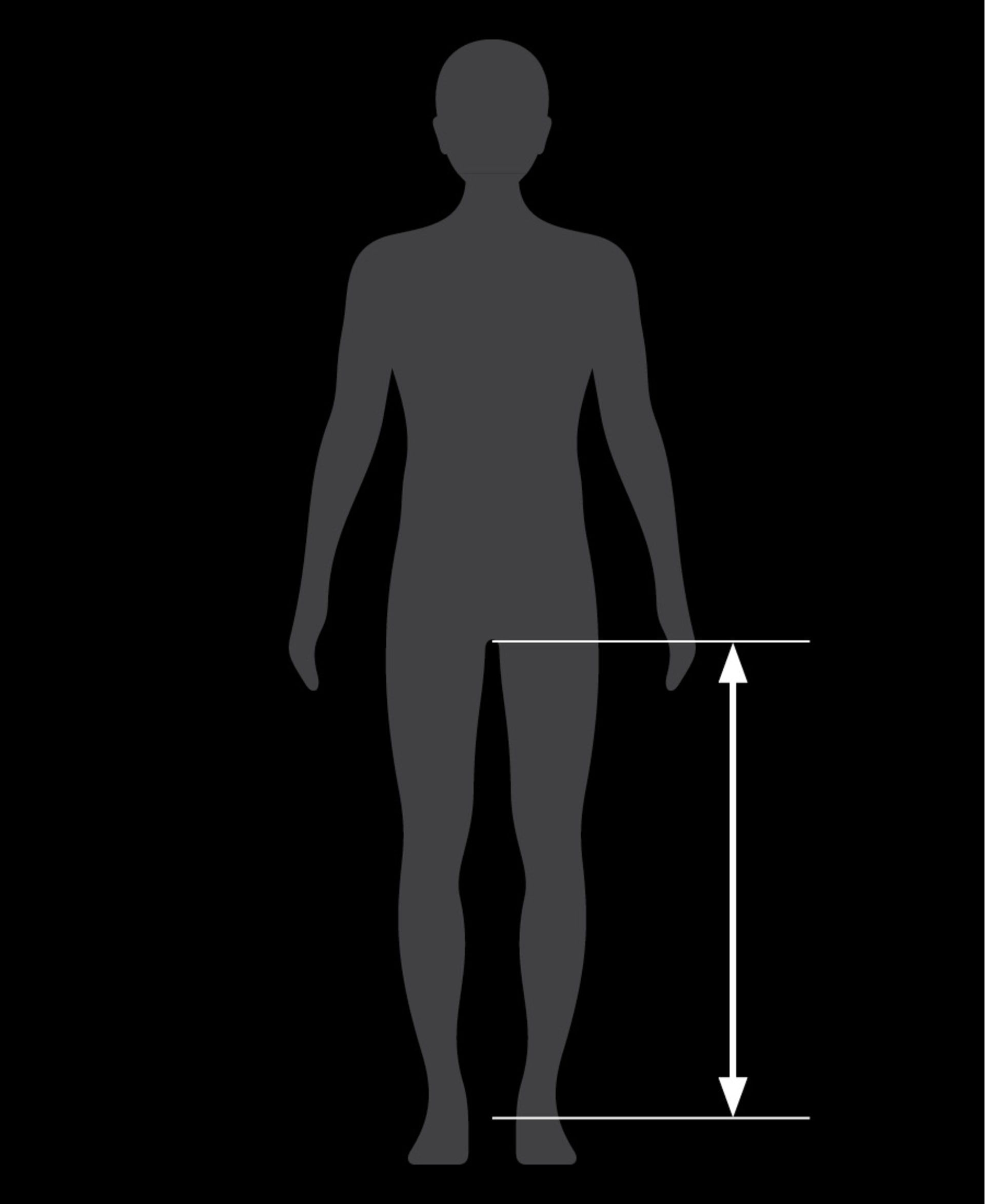

What is your inside leg?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.

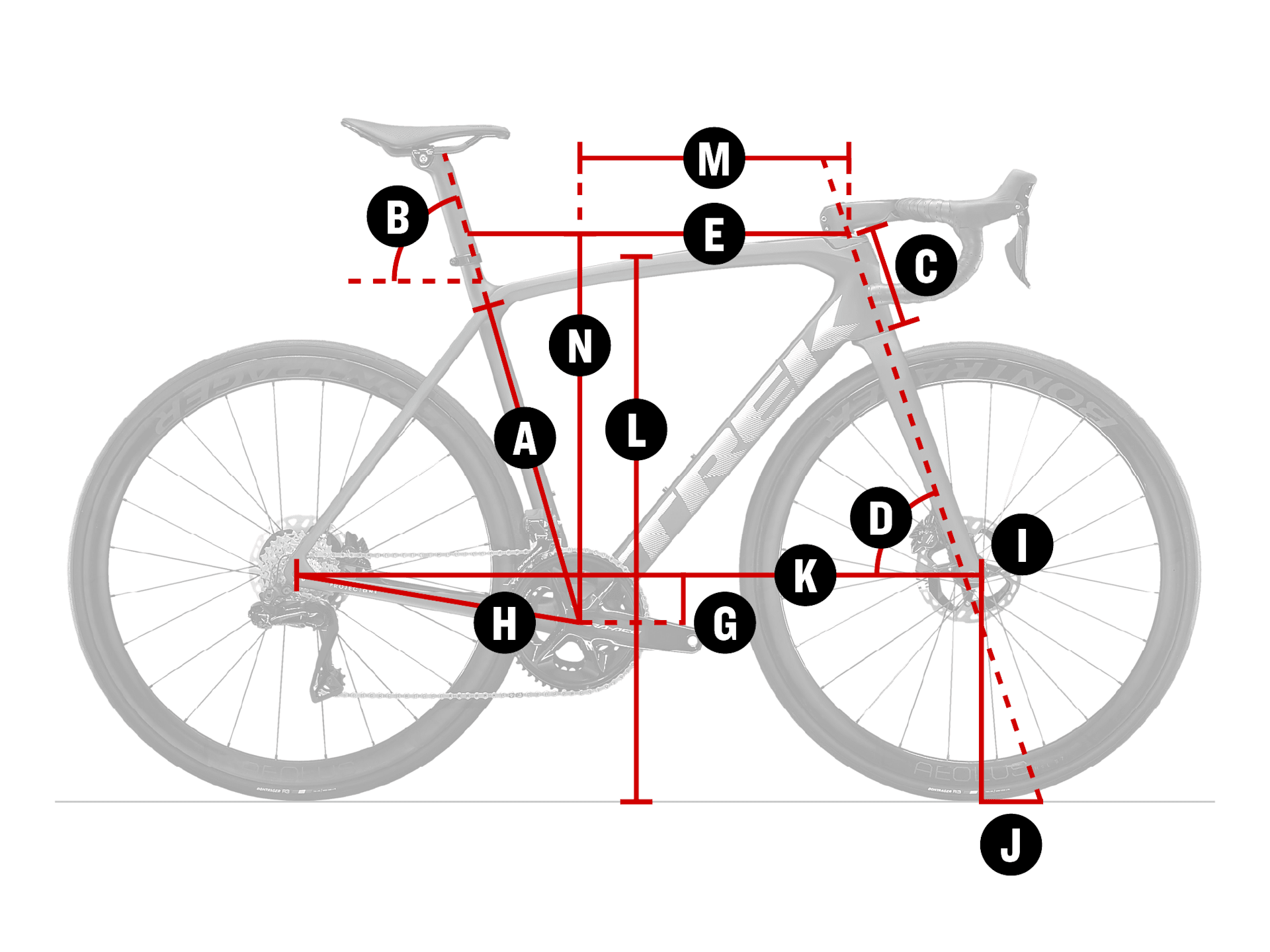

Geometry
| Frame size number | 47cm | 50cm | 52cm | 54cm | 56cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 42.4 | 45.3 | 48.3 | 49.6 | 52.5 |
| B — Seat tube angle | 74.6° | 74.6° | 74.2° | 73.7° | 73.3° |
| C — Head tube length | 10 | 11.1 | 12.1 | 13.1 | 15.1 |
| D — Head angle | 72.1° | 72.1° | 72.8° | 73.0° | 73.5° |
| E — Effective top tube | 51.2 | 52.1 | 53.4 | 54.3 | 55.9 |
| G — Bottom bracket drop | 7.2 | 7.2 | 7.2 | 7 | 7 |
| H — Chainstay length | 41 | 41 | 41 | 41 | 41 |
| I — Offset | 4.5 | 4.5 | 4.5 | 4.5 | 4 |
| J — Trail | 6.8 | 6.2 | 5.8 | 5.6 | 5.8 |
| K — Wheelbase | 97.2 | 97.4 | 97.7 | 98.1 | 98.3 |
| L — Standover | 69.2 | 71.1 | 73.2 | 74.4 | 76.8 |
| M — Frame reach | 37.3 | 37.8 | 38.3 | 38.6 | 39.1 |
| N — Frame stack | 50.7 | 52.1 | 53.3 | 54.1 | 56.3 |
| Saddle rail height min (w/short mast) | 55.5 | 58.5 | 61.5 | 64 | 67 |
| Saddle rail height max (w/short mast) | 61.5 | 64.5 | 67.5 | 70 | 73 |
| Saddle rail height min (w/tall mast) | 59 | 62 | 65 | 67.5 | 70.5 |
| Saddle rail height max (w/tall mast) | 65 | 68 | 71 | 73.5 | 76.5 |
