IN-STORE PICKUP ONLY
Trek Bicycles & Bontrager Spares/Accessories are only available for in-store pickup from our Pune Bike Shop.
Please Call or Whatsapp (+91) 7020425618 to talk to our Product Specialists.

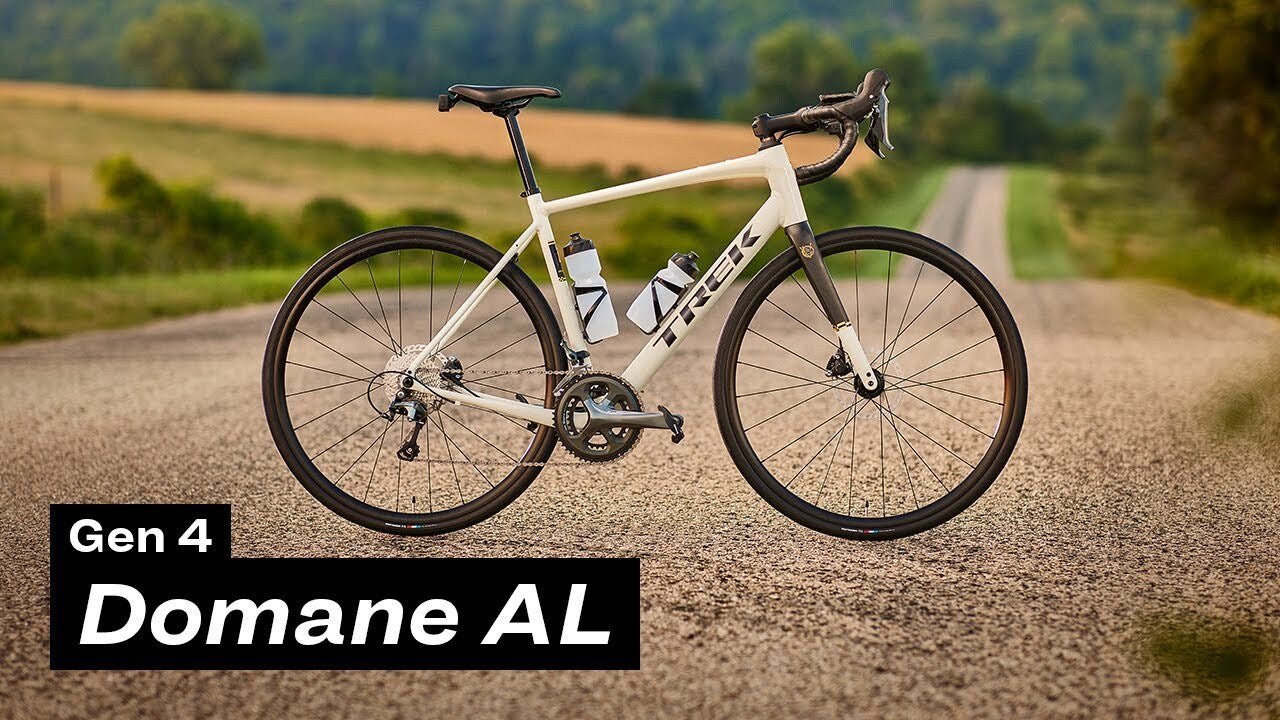

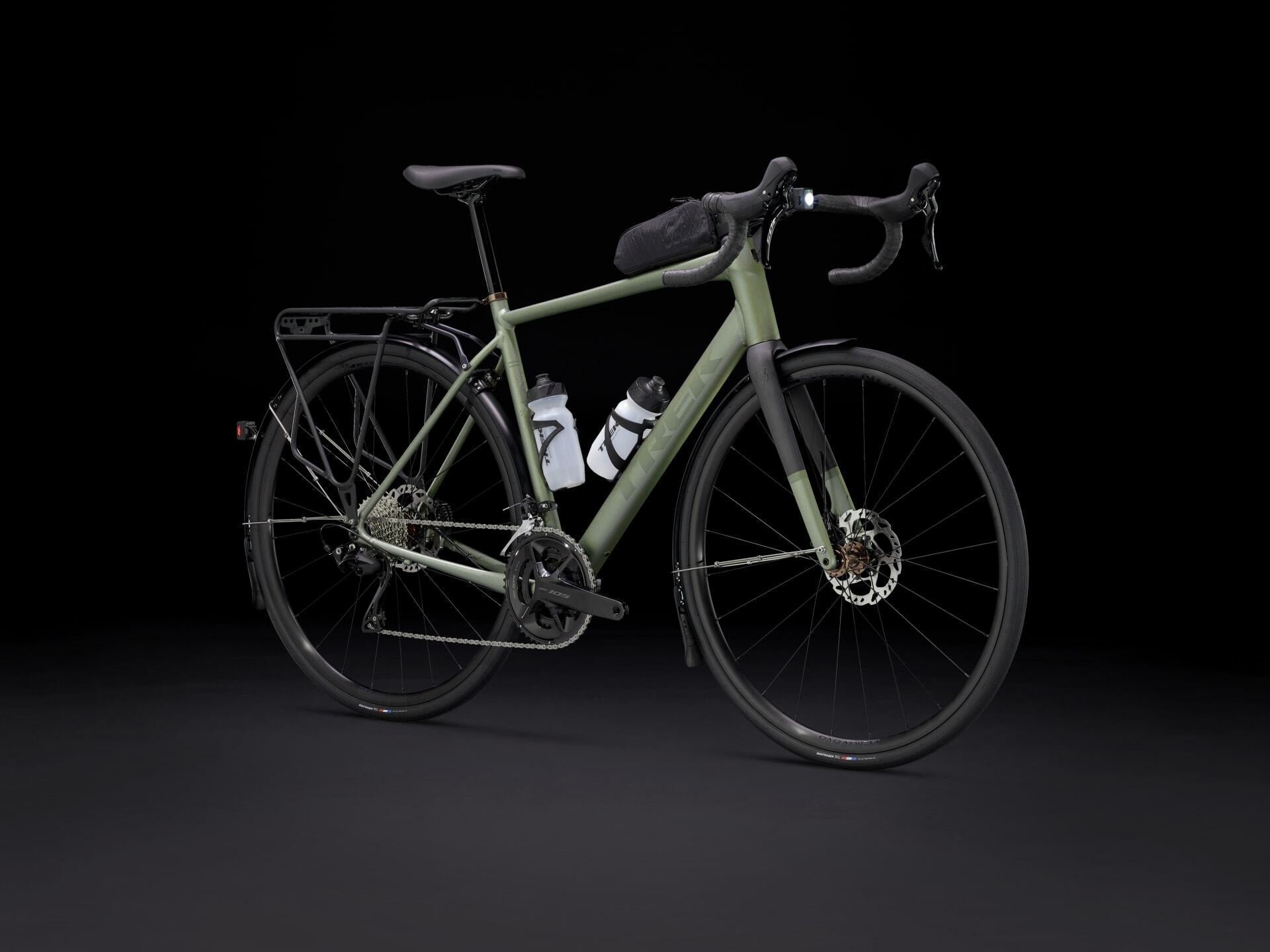

The Domane AL 5 is a speedy and versatile road bike that's a perfect starting point for anyone looking to get into road riding. With an Alpha Aluminium frame, clearance for larger tyres, a 12-speed Shimano 105 drivetrain, top tube mounts and an all-day road comfort geometry – the Domane AL 5 is perfect for casual pedalling, group rides, fast commutes and even venturing beyond tarmac roads to most gravel roads.
You're looking to venture into the world of road bikes and want one that's comfortable, smooth and most importantly, won't break the bank. You want to ride primarily on roads but also want a bike that can handle a rail trail or crushed gravel path and want versatile gearing that can handle any hill. Days spent pedalling under the sun sound perfect and you need a bike that is comfortable enough to let you ride as long as you see fit.
A 100 Series Alpha Aluminium frame with advanced tube shaping for high-end looks and ride quality, a Shimano 105 12-speed groupset, powerful disc brakes for all-weather stopping, super-durable wheels, integrated frame mounts for carrying additional gear, 32 mm tubeless-ready road tyres for added cushion and flared handlebars for extra control and stability.
The Domane AL 5 is a true road bike and the perfect option if you're just getting into riding. It's comfortable for long days, quick enough to hang with the group and extremely versatile for when you're ready to venture off road.
Frameset | |

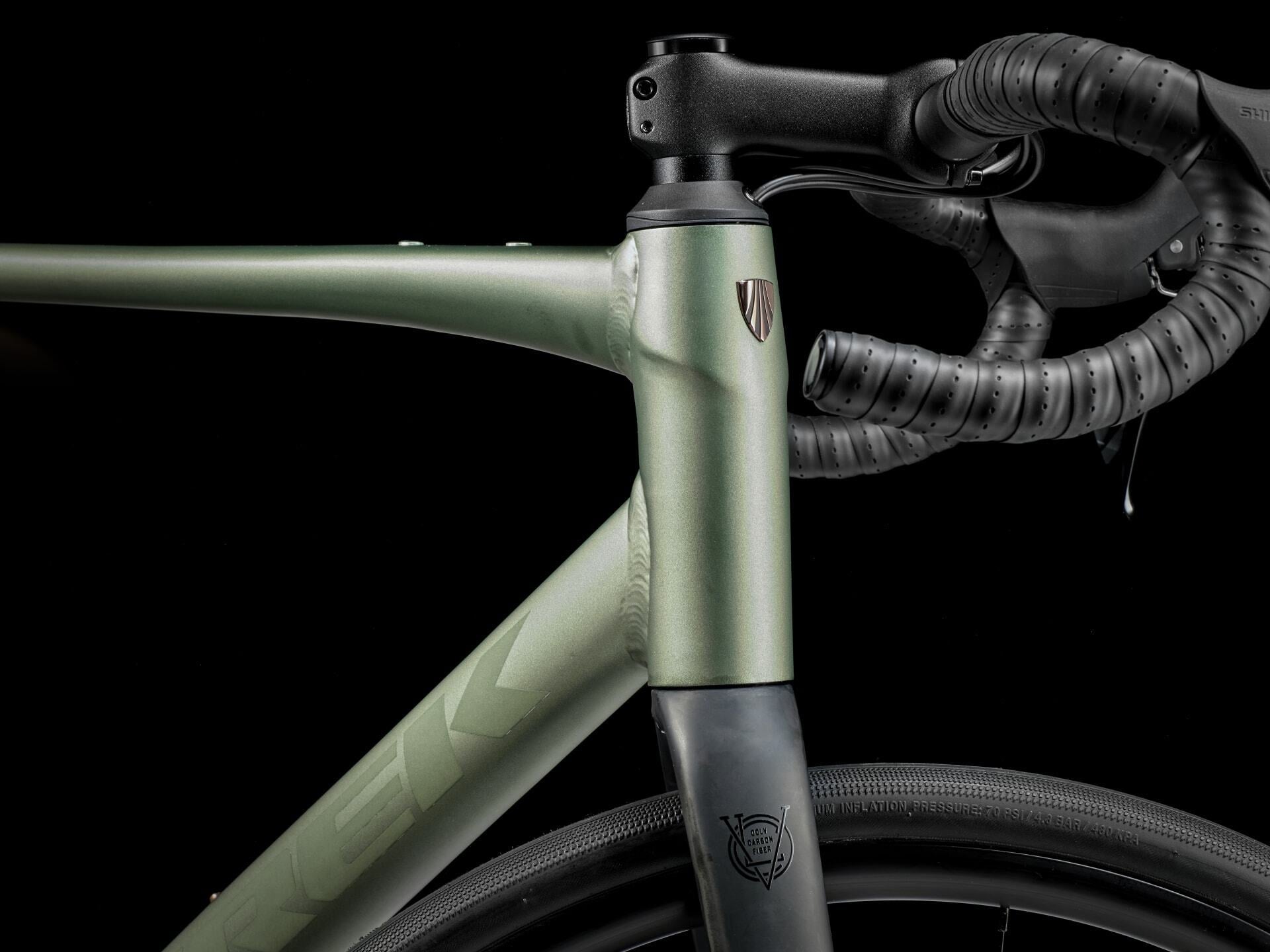

Frame | 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle |

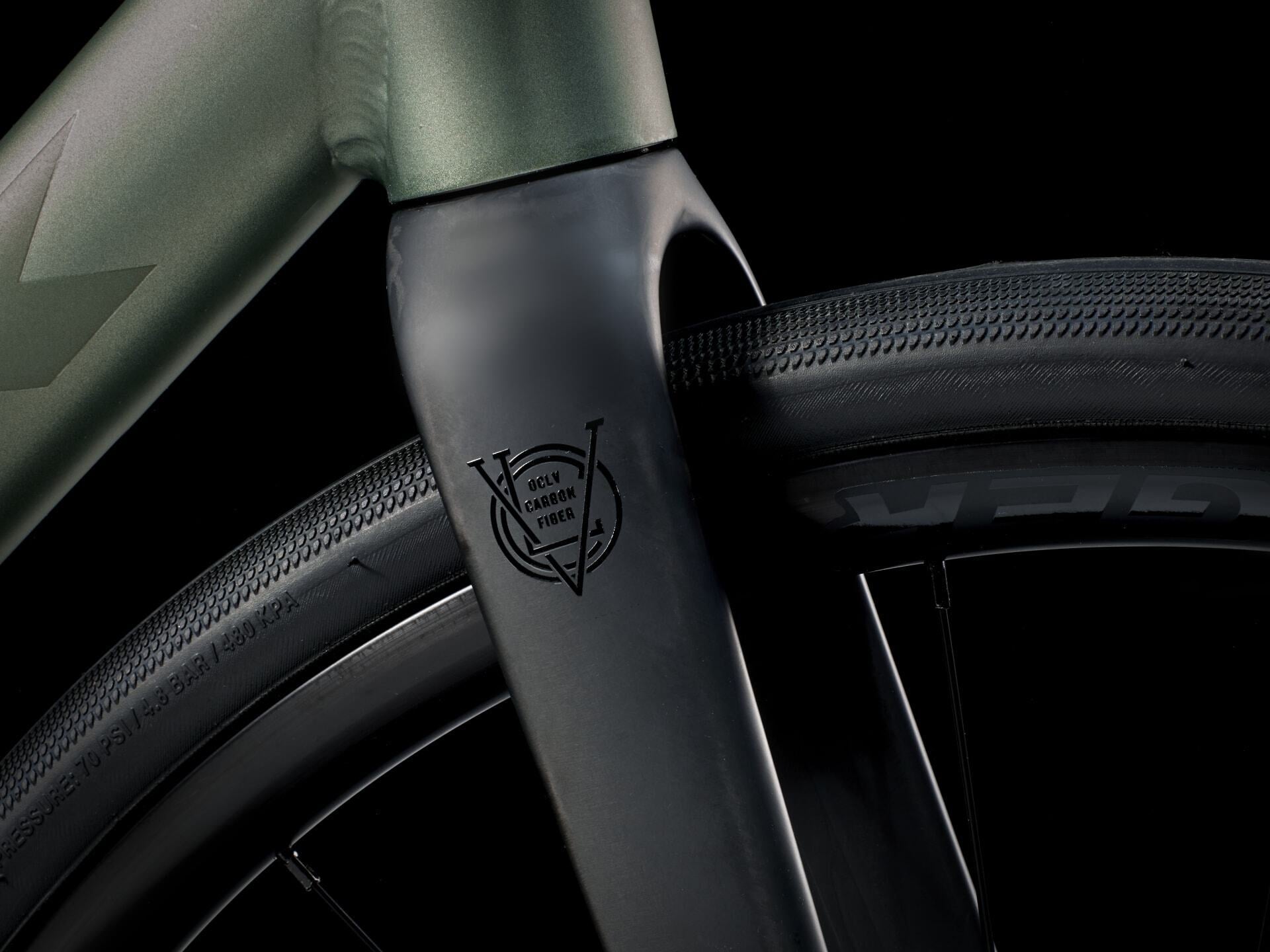

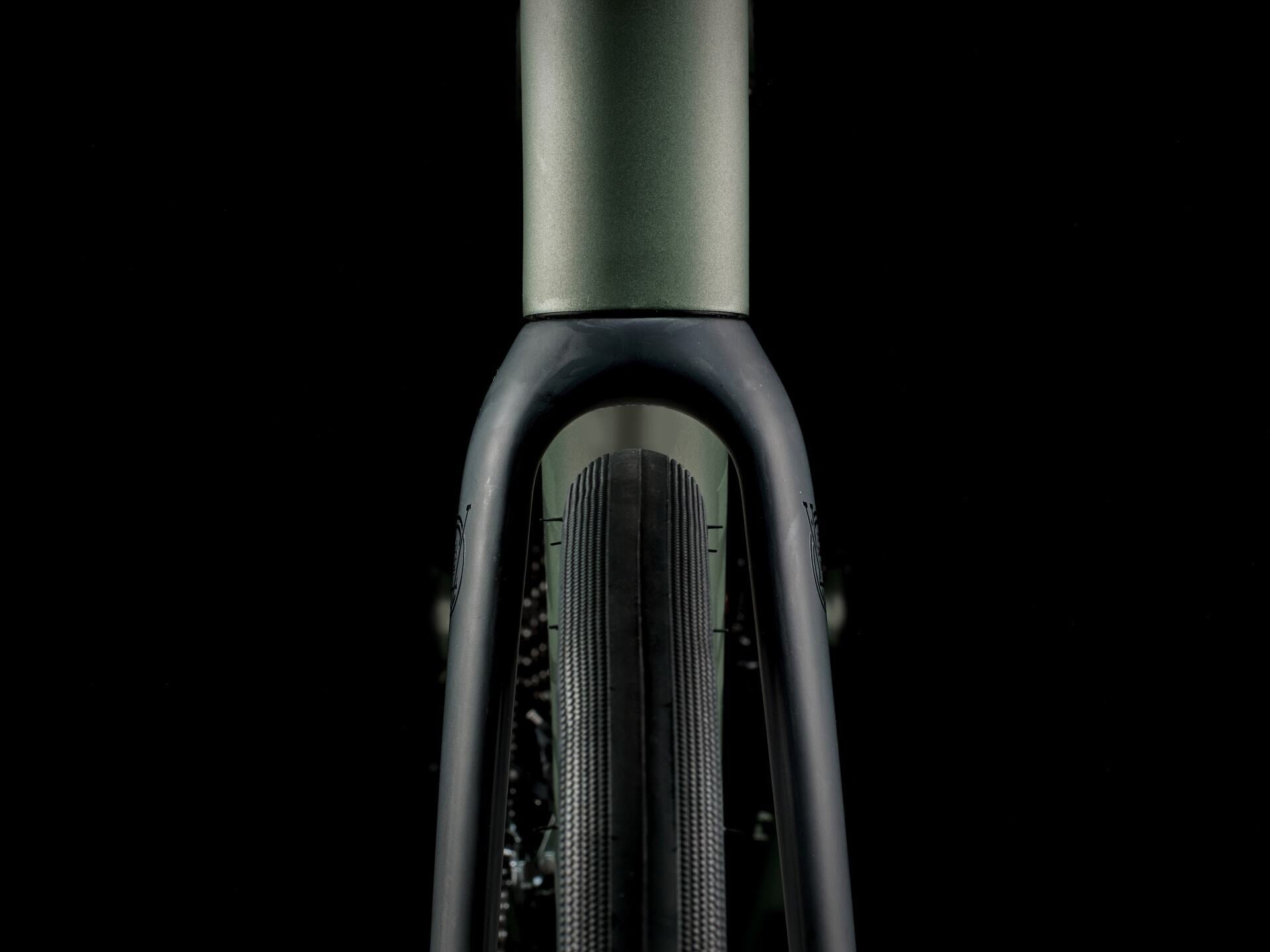

Fork | Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
Weight | |
Weight | 56 - 9.85 kg / 21.72 lbs (with tubes) |
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
Drivetrain | |

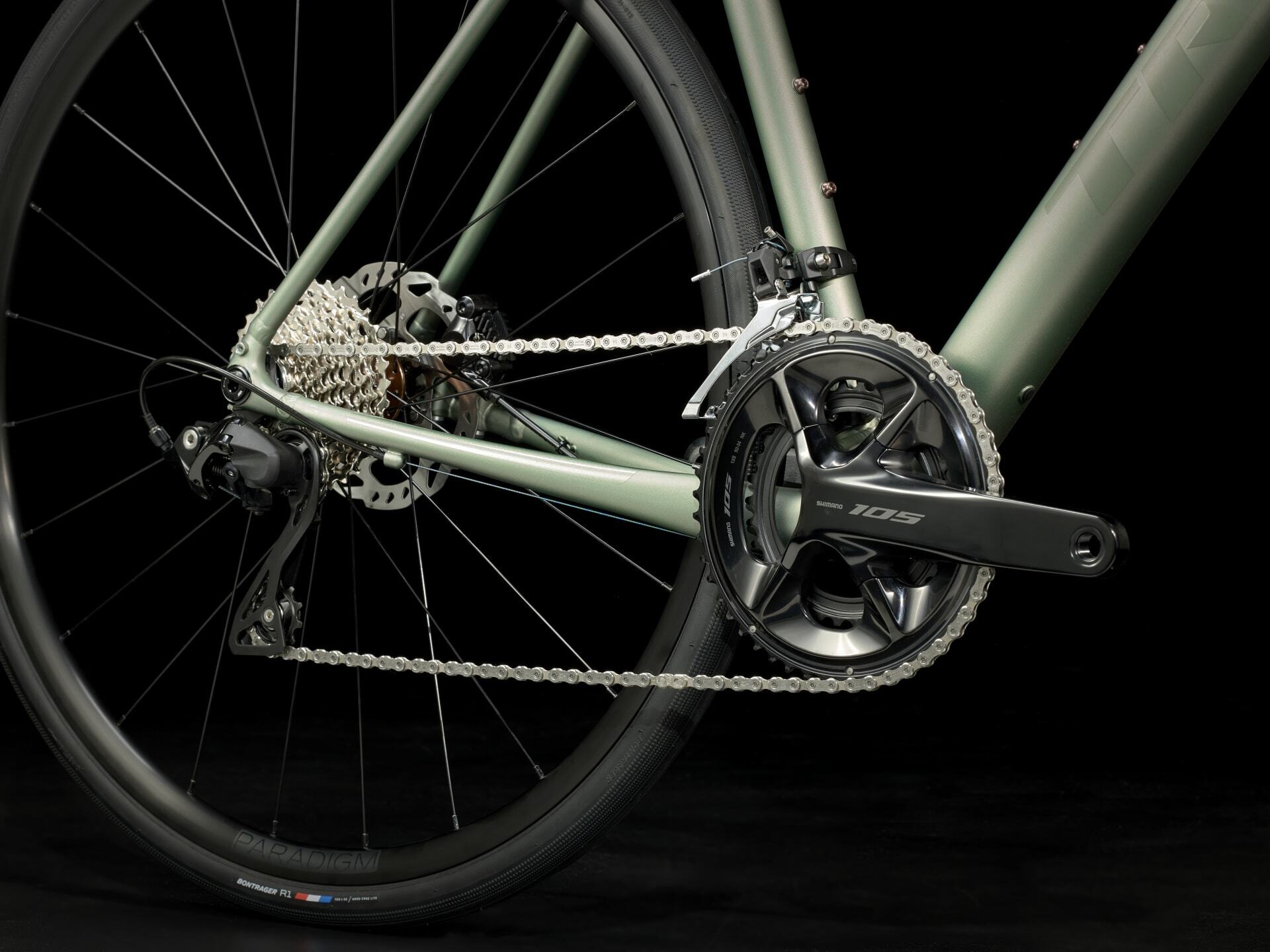

Shifter | Shimano 105 R7120, 12-speed |
Front derailleur | Shimano 105 R7100, 31.8 mm clamp, down swing |
Rear derailleur | Shimano 105 R7100, 36T max cog |
*Crank
|
Size: 44 Shimano 105 R7100, 50/34, 165 mm length |
Size: 49, 52 Shimano 105 R7100, 50/34, 170 mm length |
|
Size: 54, 56 Shimano 105 R7100, 50/34, 172.5 mm length |
|
*Bottom bracket
|
Size: 44, 49, 52, 54, 56 Shimano RS501 BSA |
Size: 44, 49, 52, 54, 56 Prowheel PW-BB73+, 68/73 mm, threaded external |
|
Cassette | Shimano 105 7101, 11-34, 12-speed |
Chain | Shimano SLX M7100, 12-speed |
Max. chainring size | 1x: 50T, 2x: 50/34 |
Wheels | |
Hub front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
Skewer front | Bontrager Switch thru axle, removable lever |
Hub rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
Skewer rear | Bontrager Switch thru axle |
Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
Spokes | 14 g stainless steel, black |
Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |
Max tyre size | 38mm without mudguards, 35mm with mudguards |
Components | |
Saddle | Verse Short, steel rails, 145 mm width |
*Seatpost
|
Size: 44, 49 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length |
Size: 52, 54, 56 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length |
|
*Handlebar
|
Size: 44, 49 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width |
Size: 52 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width |
|
Size: 54, 56 Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 42 cm width |
|
Handlebar tape | Bontrager Supertack Perf tape |
*Stem
|
Size: 44 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
Size: 56 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|

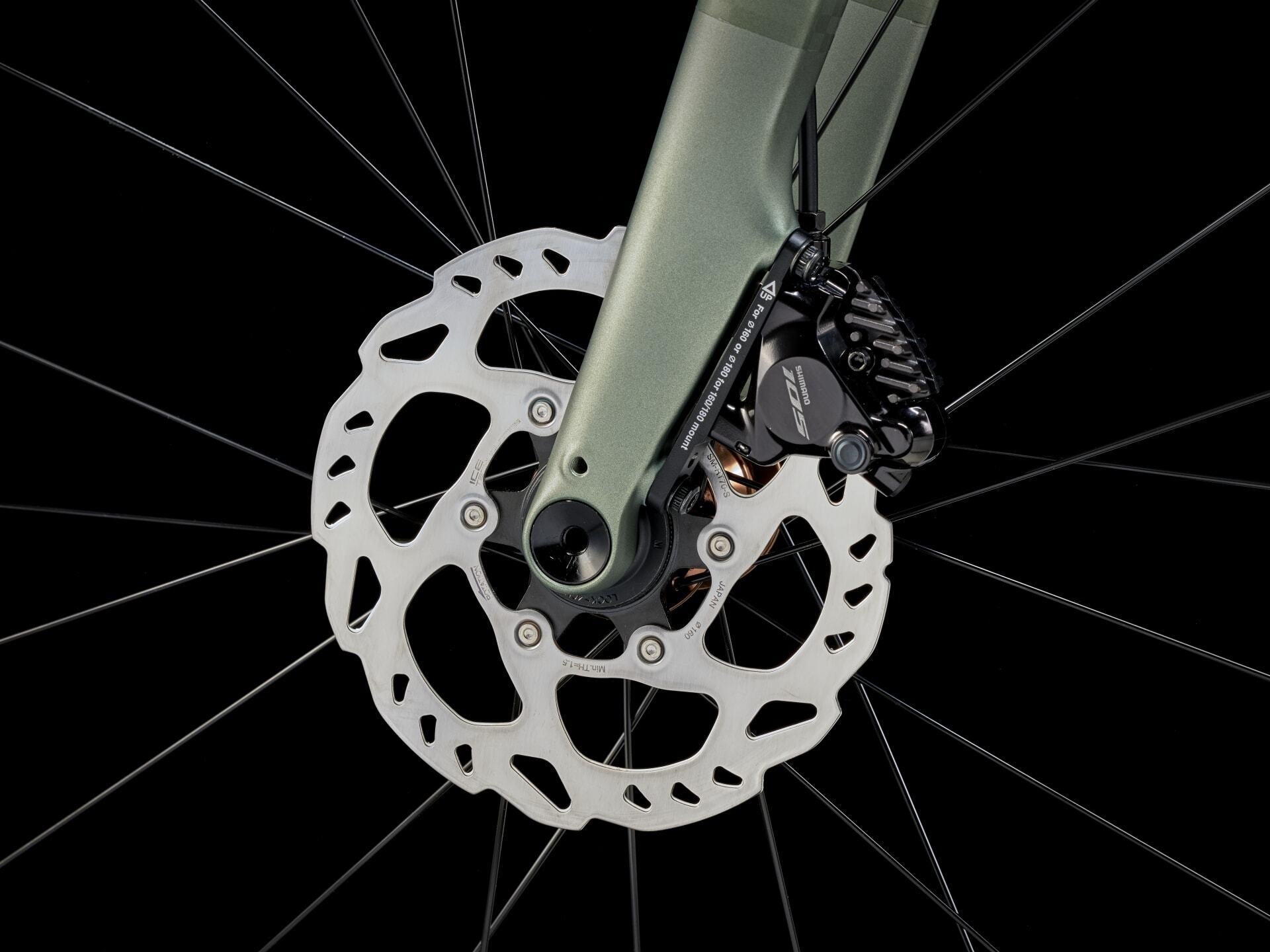

Brake | Shimano 105 hydraulic disc |
Brake rotor | Shimano RT70, centerlock, 160mm |
Rotor size | Max brake rotor sizes: 160 mm front and rear |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices. |
44 | 49 | 52 | 54 | 56 | 58 | 61 | |
Rider Height | 150.0 - 153.0 cm | 156.0 - 162.0 cm | 163.0 - 168.0 cm | 168.0 - 174.0 cm | 174.0 - 180.0 cm | 180.0 - 185.0 cm | 185.0 - 191.0 cm |
4'11.1" - 5'0.2" | 5'1.4" - 5'3.8" | 5'4.2" - 5'6.1" | 5'6.1" - 5'8.5" | 5'8.5" - 5'10.9" | 5'10.9" - 6'0.8" | 6'0.8" - 6'3.2" | |
Inseam | 71.0 - 73.0 cm | 74.0 - 77.0 cm | 76.0 - 79.0 cm | 78.0 - 82.0 cm | 81.0 - 85.0 cm | 84.0 - 87.0 cm | 86.0 - 90.0 cm |
28.0" - 28.7" | 29.1" - 30.3" | 29.9" - 31.1" | 30.7" - 32.3" | 31.9" - 33.5" | 33.1" - 34.3" | 33.9" - 35.4" |
All measurements provided in cm unless otherwise stated.
Frame size number | 44 cm | 49 cm | 52 cm | 54 cm | 56 cm |
Wheel size | 700c | 700c | 700c | 700c | 700c |
A — Seat tube | 39 | 44 | 47.5 | 50 | 52.5 |
B — Seat tube angle | 74.6° | 74.6° | 74.2° | 73.7° | 73.3° |
C — Head tube length | 9.5 | 12.3 | 14.5 | 16 | 17.5 |
D — Head angle | 70.3° | 70.8° | 71.3° | 71.3° | 71.9° |
E — Effective top tube | 50.7 | 51.6 | 53 | 54.2 | 55.4 |
G — Bottom bracket drop | 8 | 8 | 8 | 8 | 7.8 |
H — Chainstay length | 42 | 42.5 | 42 | 42 | 42 |
I — Offset | 5.3 | 5.3 | 5.3 | 5.3 | 4.8 |
J — Trail | 6.6 | 6.6 | 5.9 | 5.9 | 6.1 |
K — Wheelbase | 98.3 | 100.1 | 100.3 | 101 | 101.8 |
L — Standover | 65.7 | 71.7 | 73.5 | 75.4 | 77.6 |
M — Frame reach | 36 | 36.8 | 37.1 | 37.4 | 37.7 |
N — Frame stack | 51 | 54 | 56.1 | 57.5 | 59.1 |
Stem length | 70 | 80 | 90 | 90 | 100 |
