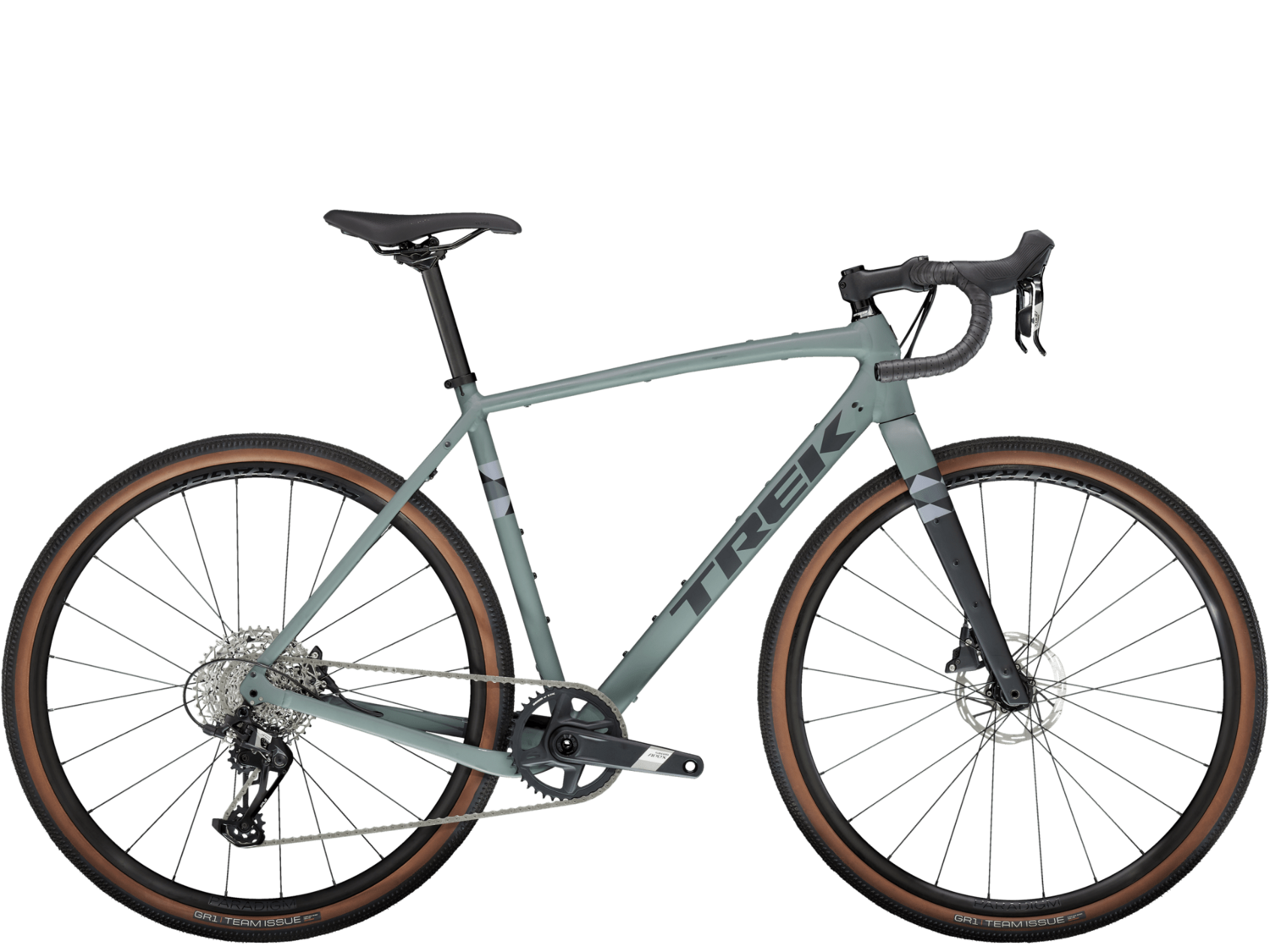

The Checkpoint ALR 5 is a high-value alloy gravel bike that's kitted out with quality parts for long, rugged, miles on anything from chunky gravel to smooth road surfaces. A wealth of features like nimble yet stable progressive geometry, loads of mounts for epic bikepacking adventures, plus a SRAM Apex 1x12-speed drivetrain makes customising for any adventure easy.
You favour epic gravel adventures that end with a big beverage and a burrito. But that doesn't mean you'll compromise on performance. You expect to get a lot for your hard-earned money, including quality, versatility, durability and a ridiculous amount of fun.
A stout 300 Series Alpha Aluminium frame with a progressive geometry that's stable at speed and efficient when you're grinding up a climb, hidden cables that won't interfere with bags, rack and mudguard mounts and integrated frame bag mounts, a 1x12 SRAM Apex drivetrain for grinding up hills or through rough gravel, hydraulic disc brakes for all-condition stopping power, tubeless-ready rims, and wide 700x40c gravel tyres for added stability and traction.
If the amount of adventure you can get per pound spent is a priority for you, the Checkpoint ALR 5 is your ride. Quality parts, a durable alloy frame and a wealth of features like extra tyre clearance and customisation options so you can confidently take on bigger, better adventures.
| Frameset | |
| Frame with Fork | 300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle |
| Fork | Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Weight | |
| Weight | 56 - 9.60 kg / 21.17 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| Drivetrain | |
| Shifter | SRAM Apex, 12-speed |
| Rear derailleur | SRAM Apex XPLR, 44T max cog |
|
*Crank
|
Size: 52 SRAM Apex 1, 40T, DUB Wide, 170 mm length |
| Size: 54, 56 SRAM Apex 1, 40T, DUB Wide, 172.5 mm length |
|
| Size: 58 SRAM Apex 1, 40T, DUB Wide, 175 mm length |
|
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM XG-1230, 11-44, 12-speed |
| Chain | SRAM Apex, 12-speed |
| Max. chainring size | 1x: 44T, 2x: 50/34 |
| Wheels | |
| Hub front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Tyre | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700 x 40 c |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | See service manual |
| Components | |
|
*Saddle
|
Size: 52 Bontrager Verse Comp, steel rails, 155 mm width |
| Size: 54, 56, 58 Bontrager Verse Comp, steel rails, 145 mm width |
|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
|
*Handlebar
|
Size: 52 Bontrager Elite Gravel, 40 cm width |
| Size: 54, 56 Bontrager Elite Gravel, 42 cm width |
|
| Size: 58 Bontrager Elite Gravel, 44 cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
|
*Stem
|
Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
| Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
| Brake | SRAM Apex hydraulic disc, flat mount |
| Brake rotor | SRAM Paceline, rounded, CentreLock, 160 mm |
| Brake lever | SRAM Apex, 12-speed |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
| Size | 49 | 52 | 54 | 56 | 58 | 61 |
| Rider Height | 156 - 163 cm 5'1" - 5'4" |
163 - 168 cm 5'4" - 5'6" |
168 - 174 cm 5'6" - 5'9" |
174 - 180 cm 5'9" - 5'11" |
180 - 185 cm 5'11" - 6'1" |
185 - 191 cm 6'1" - 6'3" |
| Inseam | 74 - 77 cm 29" - 30" |
76 - 79 cm 30" - 31" |
78 - 82 cm 31" - 32" |
81 - 85 cm 32" - 33" |
84 - 87 cm 33" - 34" |
86 - 90 cm 34" - 35" |
All measurements provided in cm unless otherwise stated.
|
All measurements provided in cm unless otherwise stated.
|
||||
| Frame size number | 52 cm | 54 cm | 56 cm | 58 cm |
| Wheel size | 700c | 700c | 700c | 700c |
| A — Seat tube | 47.5 | 50 | 52.5 | 54.8 |
| B — Seat tube angle | 74.2° | 73.7° | 73.3° | 73.0° |
| C — Head tube length | 14.5 | 16 | 17.5 | 19.5 |
| D — Head angle | 71.3° | 71.3° | 71.9° | 72.0° |
| E — Effective top tube | 53 | 54.2 | 55.4 | 56.7 |
| G — Bottom bracket drop | 8 | 8 | 7.8 | 7.8 |
| H — Chainstay length | 42 | 42 | 42 | 42.5 |
| I — Offset | 5.3 | 5.3 | 4.8 | 4.8 |
| J — Trail | 5.9 | 5.9 | 6.1 | 6 |
| K — Wheelbase | 100.3 | 101 | 101.8 | 102.2 |
| L — Standover | 73.5 | 75.4 | 77.6 | 79.6 |
| M — Frame reach | 37.1 | 37.4 | 37.7 | 38 |
| N — Frame stack | 56.1 | 57.5 | 59.1 | 61.1 |
| Stem length | 90 | 90 | 100 | 100 |
