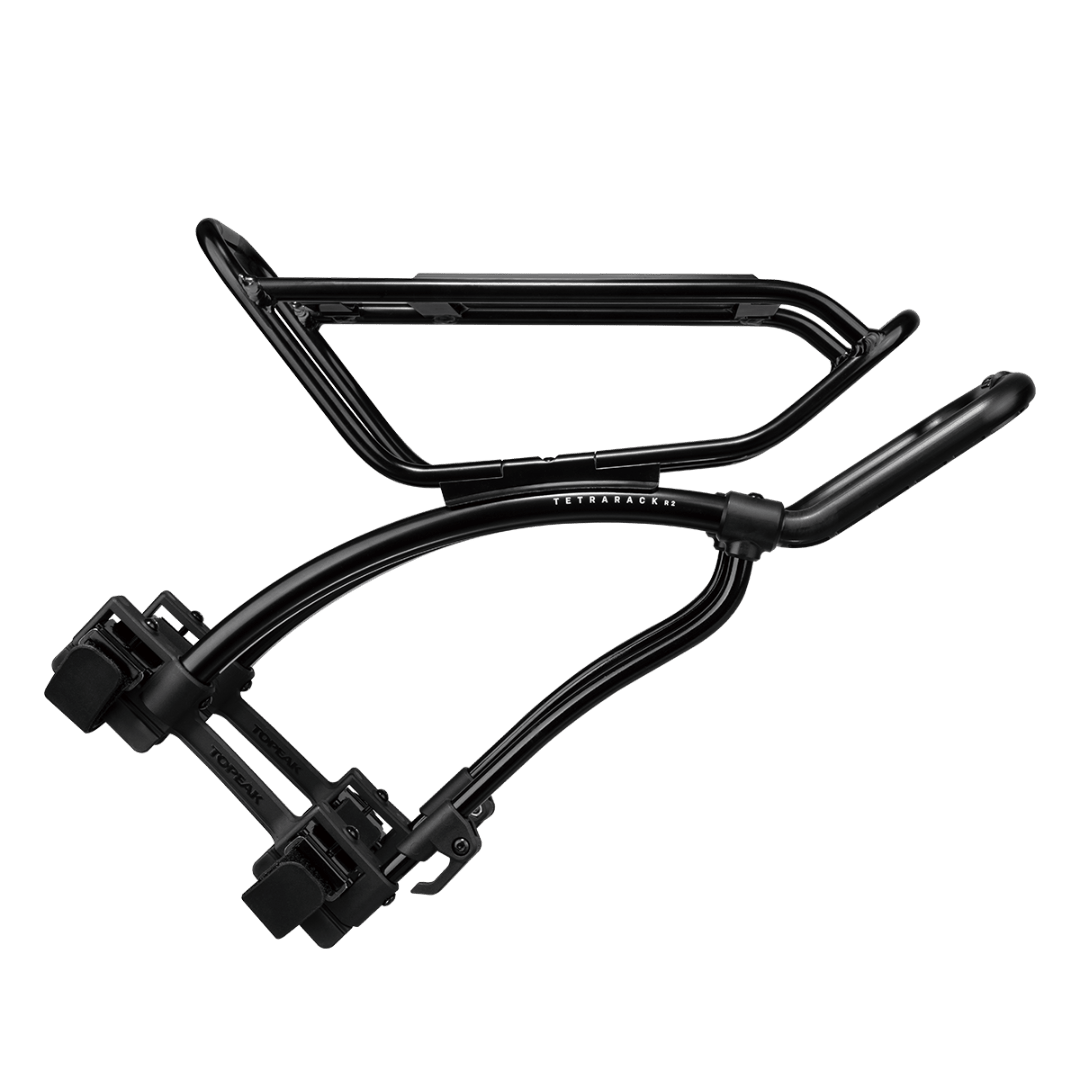

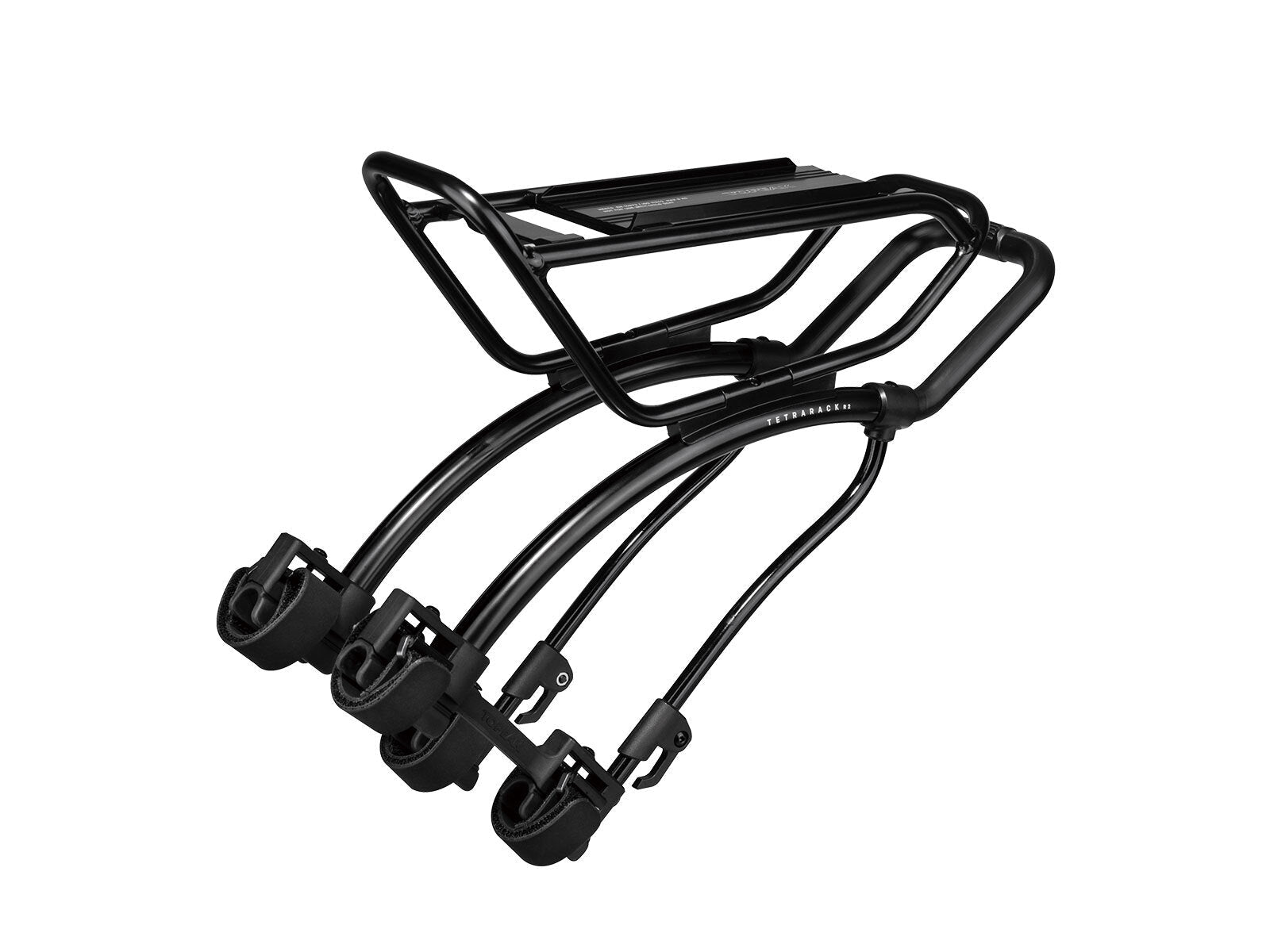

The perfect quick-mount rear rack system attaches to road, cross, hybrid or touring bike seat stays. This one-size-fits-all rear rack features an innovative top plate that adjusts to level independent of the seatstay angle. Integrated QuickTrack® system allows Topeak TrunkBags to slide and lock into place and release with a push of a button. Innovative hook and loop strap mounting system cinches down tight to keep the load stable and allow mounting on a wide range of bikes.
NOTE :
*TetraRack is not recommended for carbon forks and seat stays
*TetraRack series racks are not compatible with front or rear-mounted V-Brake type systems.
ATTACHMENTS | Seatstays with hook and loop straps |
ADJUSTMENT | Strut slots |
MATERIAL | Aluminum / Engineering grade polymer / Nylon straps |
COMPATIBILITY | Topeak MTX / RX TrunkBags |
MAX LOAD | 9 kg / 20 lb |
ADDED FEATURE | Clamp for front reflector, Tail Light Mount |
SIZE | 39.5 x 30 x 12 cm / 15.6” x 11.8” x 4.7” |
WEIGHT | 870 g / 1.92 lb |
Strut slot adjustments allow the rack top plate to be level independent of the seatstay angle

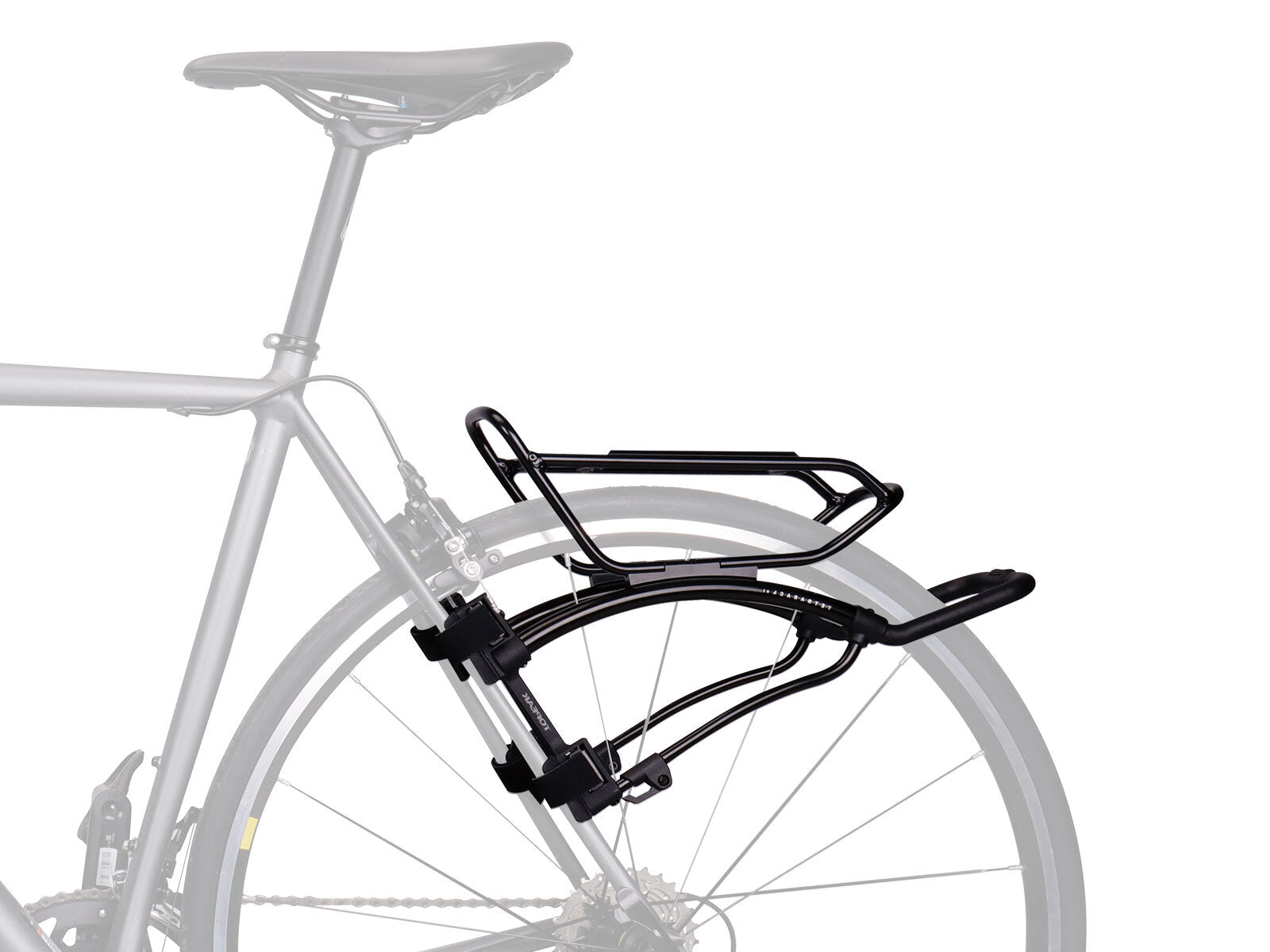

Adjustable straps with padded feet securely attach the rack to seat stays

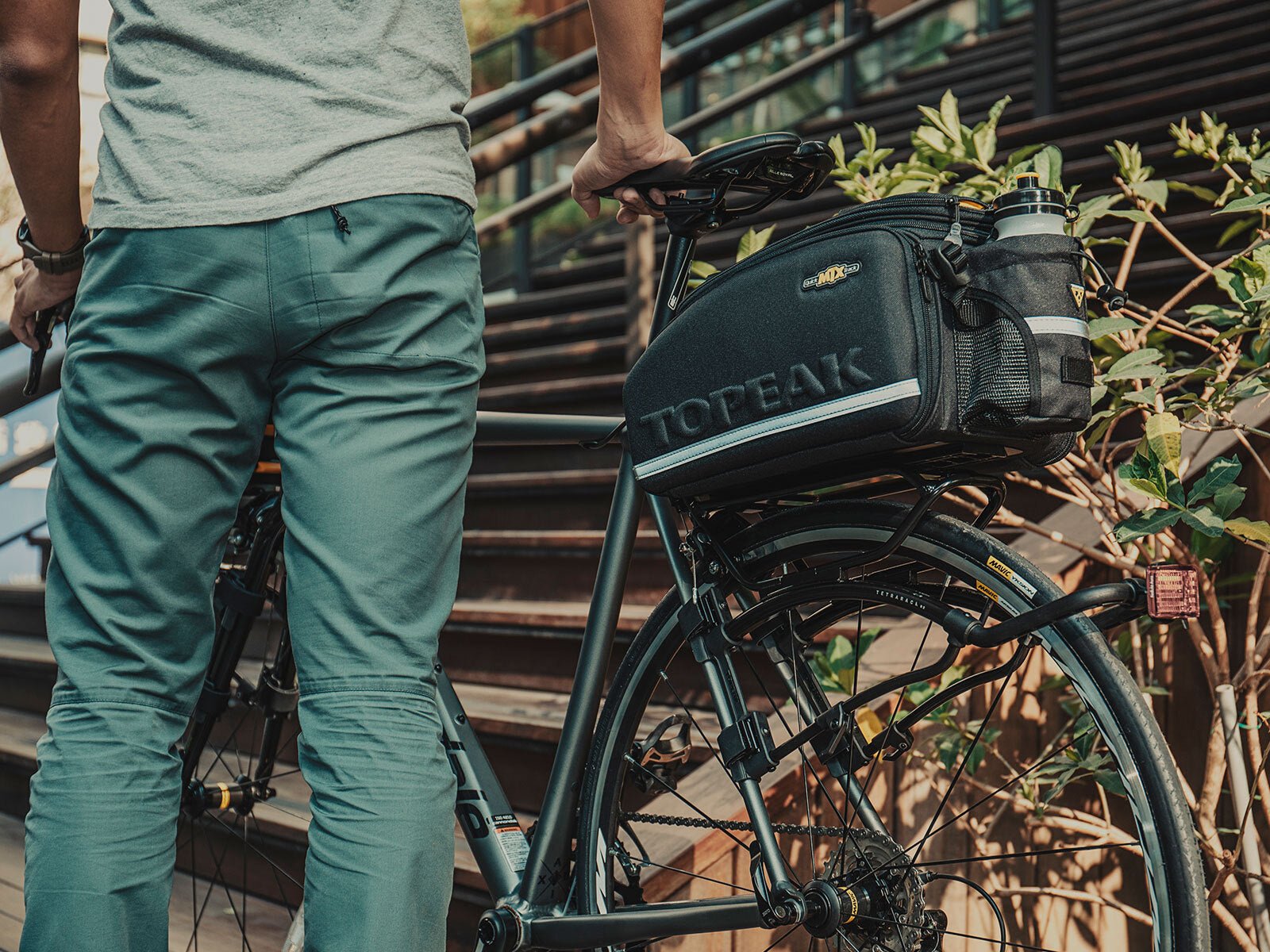

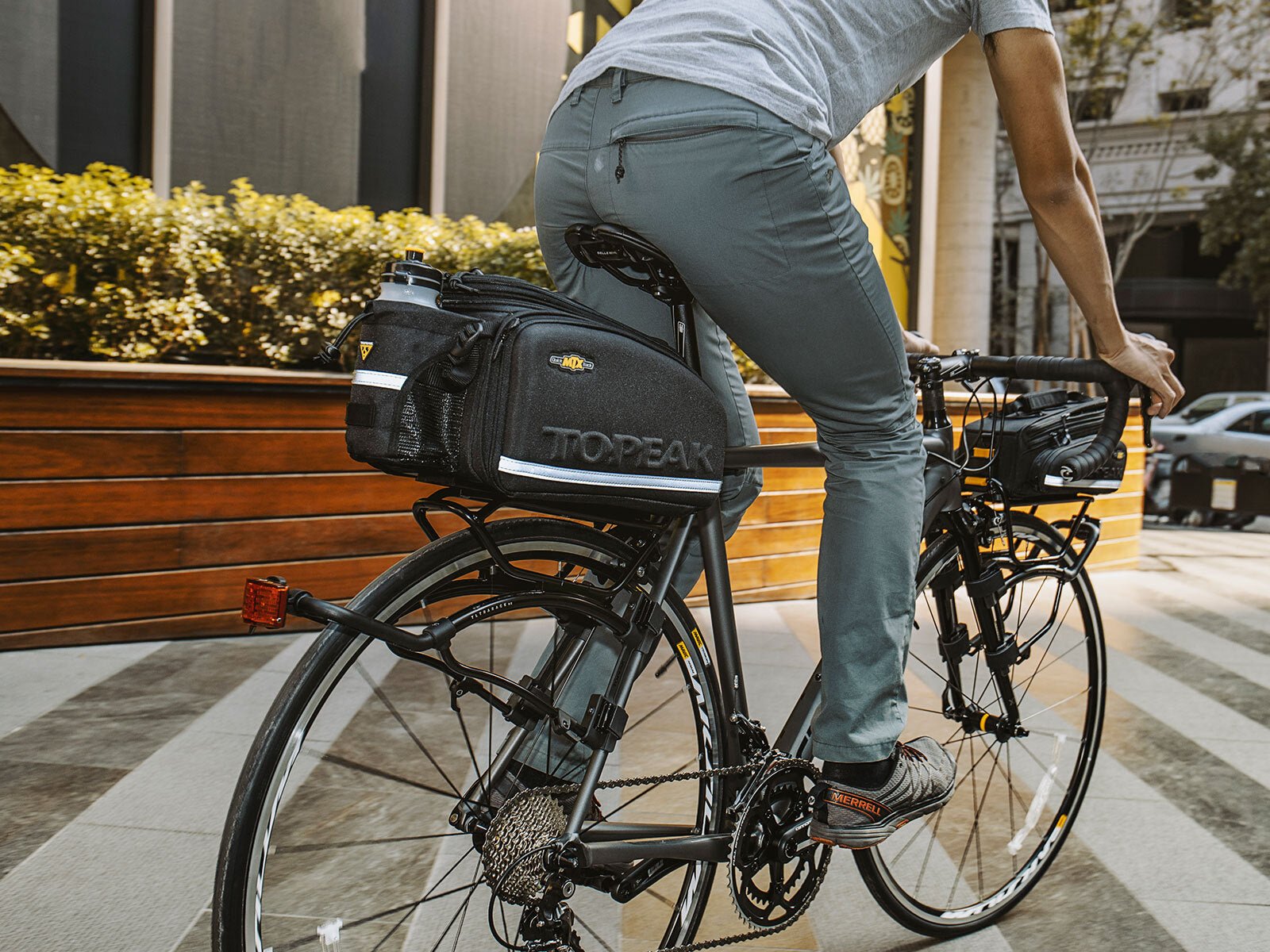

Compatible with Topeak QuickTrack® system bags
Clamp for rear reflector
TetraRack has a mounting length of 200mm. Seatstays and front forks must not contain any obstacles that prevent mounting TetraRack securely. Seatstay diameter must be larger than 15mm. It is not recommended to mount TetraRack R2 on carbon frames.
Compatible with seatstays width within 75-105mm. Ensure not to exceed max weight capacity. ( 9kg / 20lb )
[tab name= "USER GUIDE"]
Choose your language to download TETRARACK R2
