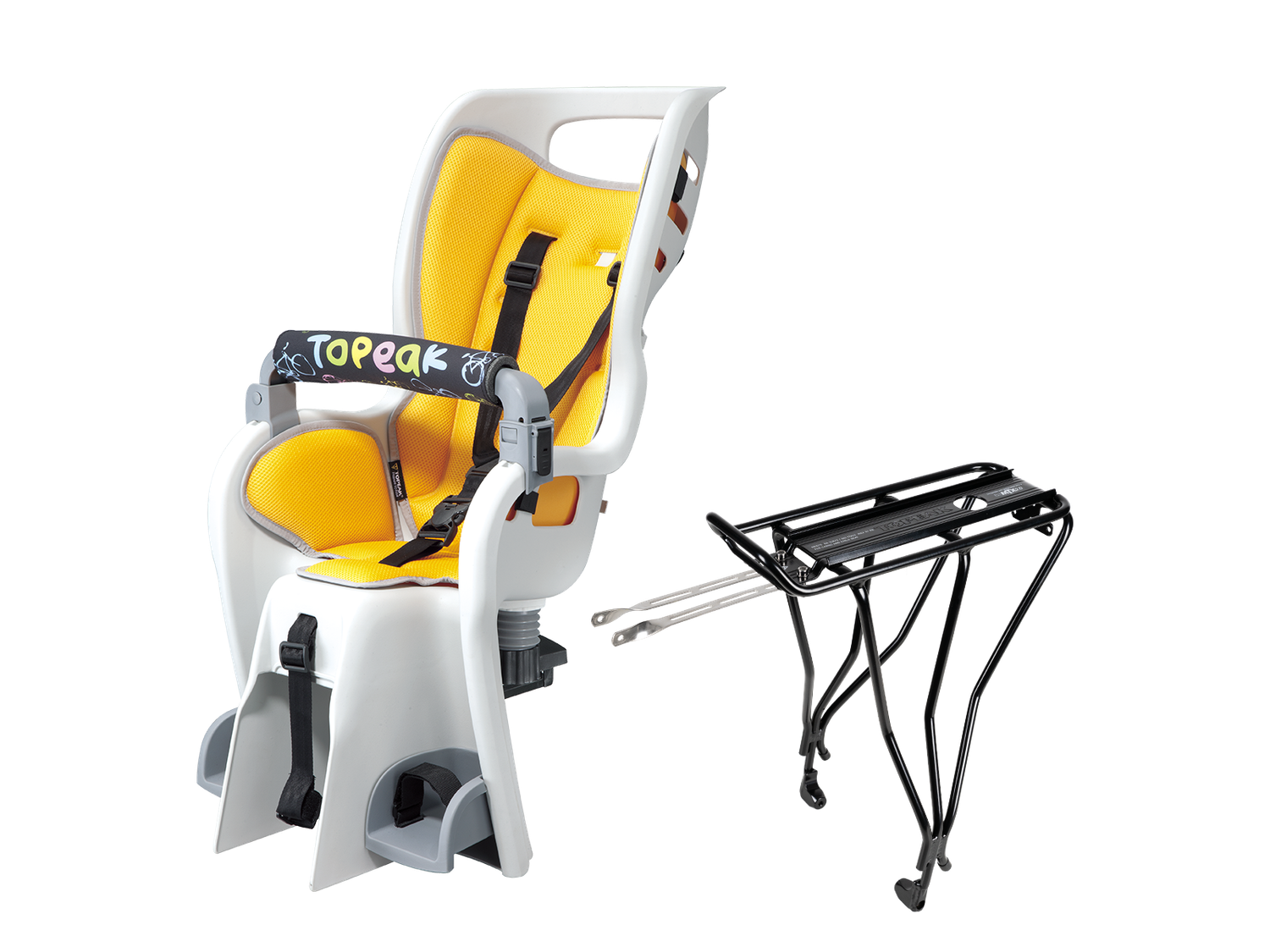

For 29" Wheels w/ Disc Brakes A wrap-around seat structure creates a virtual cocoon of protection and features an updated shoulder harness with a multiple height adjustment system. An innovative suspension system cushions bumps and jolts and the integrated roll bar provides extra head protection and doubles as a carrying handle. Adjustable footrests and straps keep small feet away from spinning wheels. Child seat complies with stringent European, CPSIA and Proposition 65 safety standards. The included heavy-duty disc mount rack features an innovative BabySeat™ attachment that requires no tools to attach and remove seat from rack. Once the seat is removed, the exposed QuickTrack® system is compatible with all Topeak MTX TrunkBags and MTX Rear Baskets.
Seat Structure | Molded engineering grade polymer |
Safety Features | Adjustable foot rests with straps, Roll bar handle Shoulder harness with multiple height adjustment system Full body cocoonRear reflector |
Suspension | Dual steel spring |
Rack | 6061 T-6 hollow aluminum |
Max Weight Capacity | BabySeat - 22 kg / 48.5 lb (Meets EN-14344 Class A22 regulations) 18 kg / 40 lb (Meets ASTM F1625 regulations) Rack - 27 kg / 60 lb, Meets EN 14872 / ISO 11243 |
Bag Compatibility | MTX QuickTrack® system |
Size | 77.4 x 58.5 x 39.5 cm / 23” x 15.5” x 30.5” (Seat) 42.5 x 34 x 23 cm / 16.7” x 13.4” x 9” (Disc Rack) |
Weight | 3.13 kg / 6.9 lb (Seat) 668 g / 1.47 lb (Disc Rack) |
GRAB BAR FIXER WITH LEVER
FOOT CUPS & STRAPS
GRAB BAR PAD
MOUNTING BRACKET ARM
SLIDING LOCK
SAFETY SHOULDER STRAP
MOUNTING BRACKET ARM
