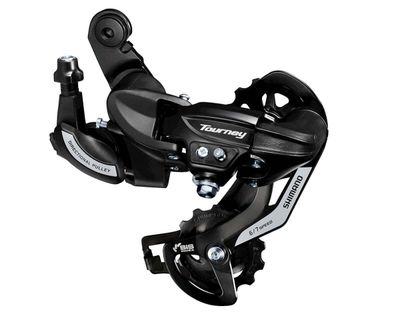

SHIMANO TOURNEY TY - Rear Derailleur - Long Cage - 6/7-speed
Compatible with 6 and 7-speed SIS Index Shifting drivetrains, the SHIMANO TOURNEY TY500 derailleur is offered in a wide range of fitments and cage options.
[tab name='SPECIFICATIONS']
MODEL NO | RD-TY500-SGS |
SERIES | TOURNEY |
Color | Series color |
Remarks |
w/ Wheel type cable guide
|
Compatible chain | HG-UG 7/6-speed |
Total capacity | 43T |
Cable adjuster | ✔ |
Mount_Direct attachment (Conventional) | ✔ |
Low sprocket_Max. | 34T |
Low sprocket_Min. | 28T |
Max. front difference | 20T |
Pulley_Teeth | 13/13T |
Pulley cage | SGS |
Mount_Riveted adapter (BMX-Track type) | ✔ |
Mount_Riveted adapter (Road type) | ✔ |
Top-Normal spring type_Double servo | ✔ |
Top sprocket_Max. | 14T |
Top sprocket_Min. | 11T |
Rear speeds | 7/6 |
