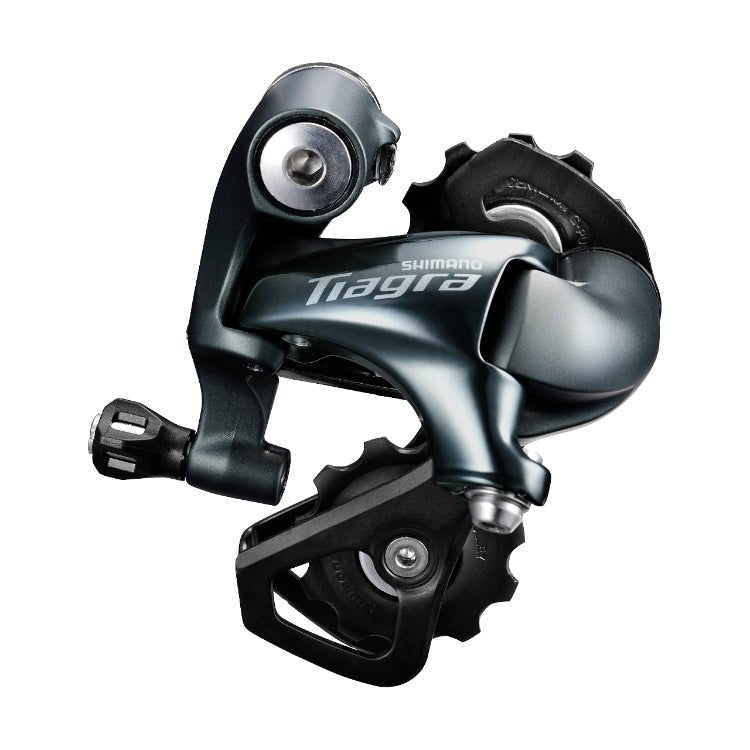

SHIMANO TIAGRA - Rear Derailleur - Short Cage - 10-speed
The SHIMANO TIAGRA rear derailleur shifts with a consistently smooth, light action. Designed for 10-speed road drivetrains, it is offered in short and medium cage options.
[tab name='SPECIFICATIONS']
MODEL NO | RD-4700-SS |
SERIES |
TIAGRA 4700 Series
|
Color | Series color |
Compatible chain | HG-X Chain |
Total capacity | 33T |
Cable adjuster | ✔ |
Mount_Direct attachment (Conventional) | ✔ |
Fluoric coated link bushings | 2 |
Low sprocket_Max. | 28T |
Low sprocket_Min. | 25T |
Max. front difference | 16T |
Pulley_Sunken type pulley bolt | ✔ |
Pulley_Teeth | 11T |
Pulley cage | SS |
Top-Normal spring type_Double servo | ✔ |
Top sprocket_Max. | 14T |
Top sprocket_Min. | 11T |
Rear speeds | 10 |
