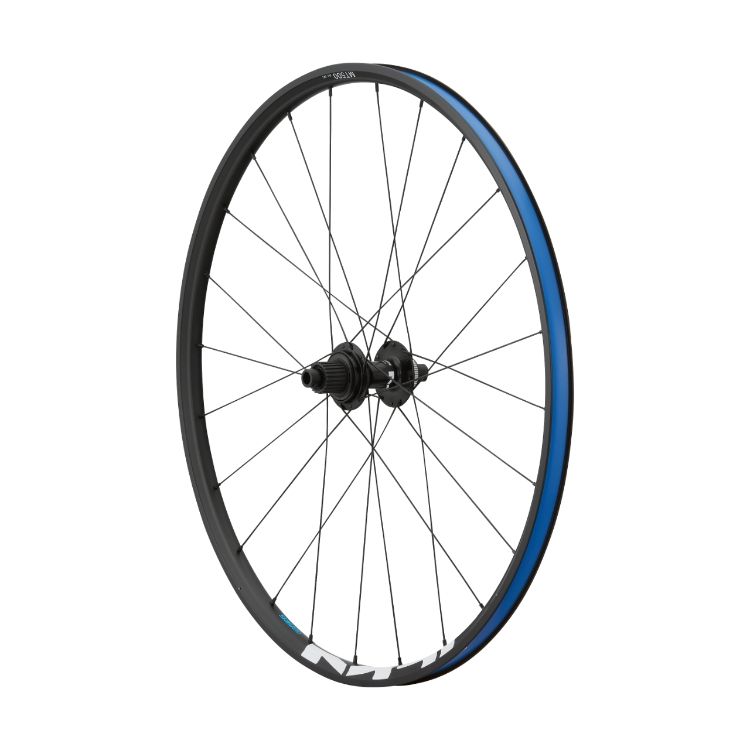

SHIMANO 29” Clincher Wheel 148x12 mm Thru Axle Rear
MODEL NO |
WH-MT501-CL-R12-B-29
|
SERIES | SHIMANO |
Color | Black |
Average weight | 1260 |
Model name |
WH-MT501-CL
|
Specification | R12-B-29 |
Color|1 Hub shell | Black |
Front/Rear | Rear |
Brake type |
CENTER LOCK disc brake
|
Rear speeds | 12 |
O.L.D. (mm) | 148 |
Wheel size |
622 x 24C (29 inch)
|
Tire|Type | Clincher |
Tire|Recommended size |
29 x 2.00 - 2.40
|
Rim|Height (mm) | 21 |
Rim|Internal width (mm) | 24 |
Rim|External width (mm) | 29.6 |
Rim|Rim joint | Sleeve |
Rim|Requires rim tape | X (24-622) |
Spokes|Number | 24 |
Spokes|Butted | 2.3 |
Spokes|J-bend | ✔ |
Spokes|Diameter (mm) | 2.3 |
Axle fixing method |
12 mm E-THRU
|
Thru axle (length x inner diameter ; mm)|148 x 12 | ✔ |
Spline type|MICRO SPLINE | ✔ |
Engagement type | Pawl ratchet |
Seal|Hub |
Labyrinth+Contact
|
Seal|FREEHUB body | Contact |
Reflector|JIS/CPSC |
CATEYE RR-550-WUW SW
|
Reflector|AS |
CATEYE RR-550-WUA SW
|
Reflector|DIN |
CATEYE RR317-WUA SW
|
