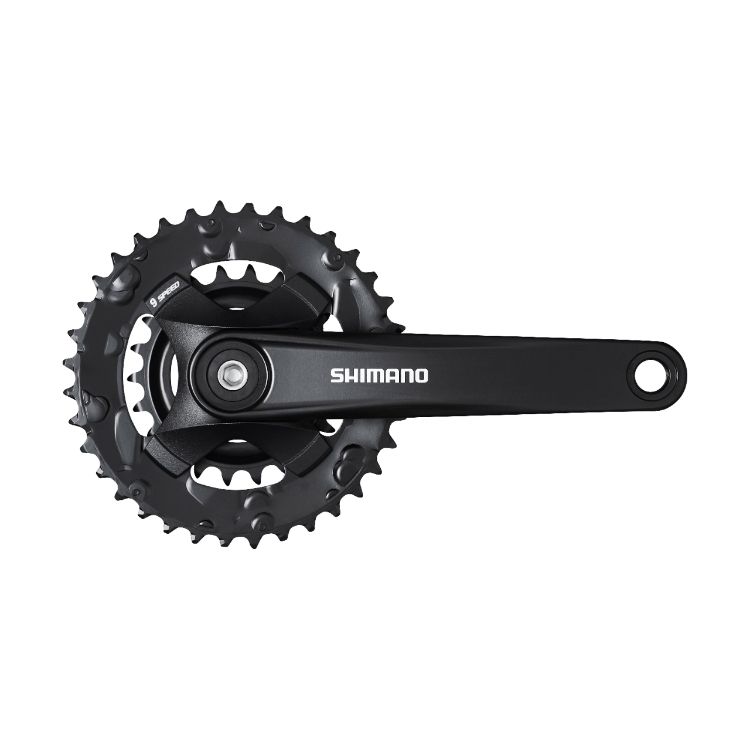

SHIMANO - HYPERDRIVE - MTB Crankset - 2x9-speed
The SHIMANO FC-MT101-2 crank is designed for 2x9 speed MTB drivetrains. With HYPERDRIVE technology it provides smooth and precise shifting.
PRODUCT SPECIFICATIONS
|
|
MODEL NO | FC-MT101-2 |
SERIES |
SHIMANO ALIVIO M3100 Series
|
Color | Black |
Remarks |
SHIMANO logo
|
Rear speeds | 9 |
Compatible chain | HG 9-speed |
Chain line (mm) | 48.8 |
O.L.D.|Thru (mm) | 142 |
O.L.D.|QR/Nut (mm) | 135 |
P.C.D. (mm) | Riveted |
Spider/gear arms | 4 |
Chainring combination | 36-22T |
Q-factor (mm) | 179.4 |
Crank arm length (mm)|170 | ✔ |
Crank arm length (mm)|175 | ✔ |
Optional chain guard|Without chain/bash guard | ✔ |
Compatible bottom bracket type|Square | ✔ |
Recommended bottom bracket|Threaded (normal) | BB-UN101 |
Axle length of BB-UN/ES (mm)|Threaded (normal) | LL123 |
Threaded bottom bracket shell width (mm)|68 | ✔ |
Threaded bottom bracket shell width (mm)|73 | ✔ |
Crank fixing screw included | ✔ |
