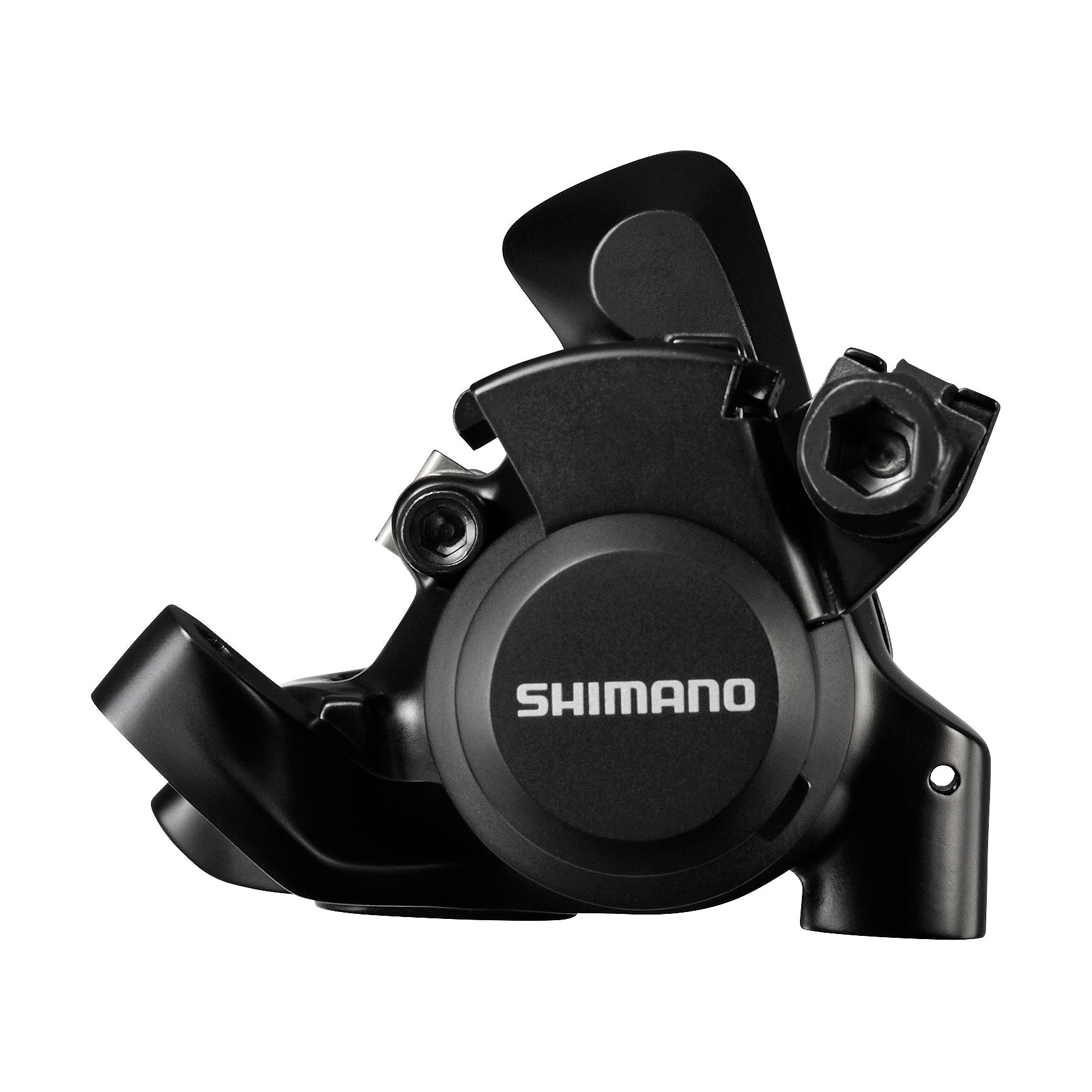

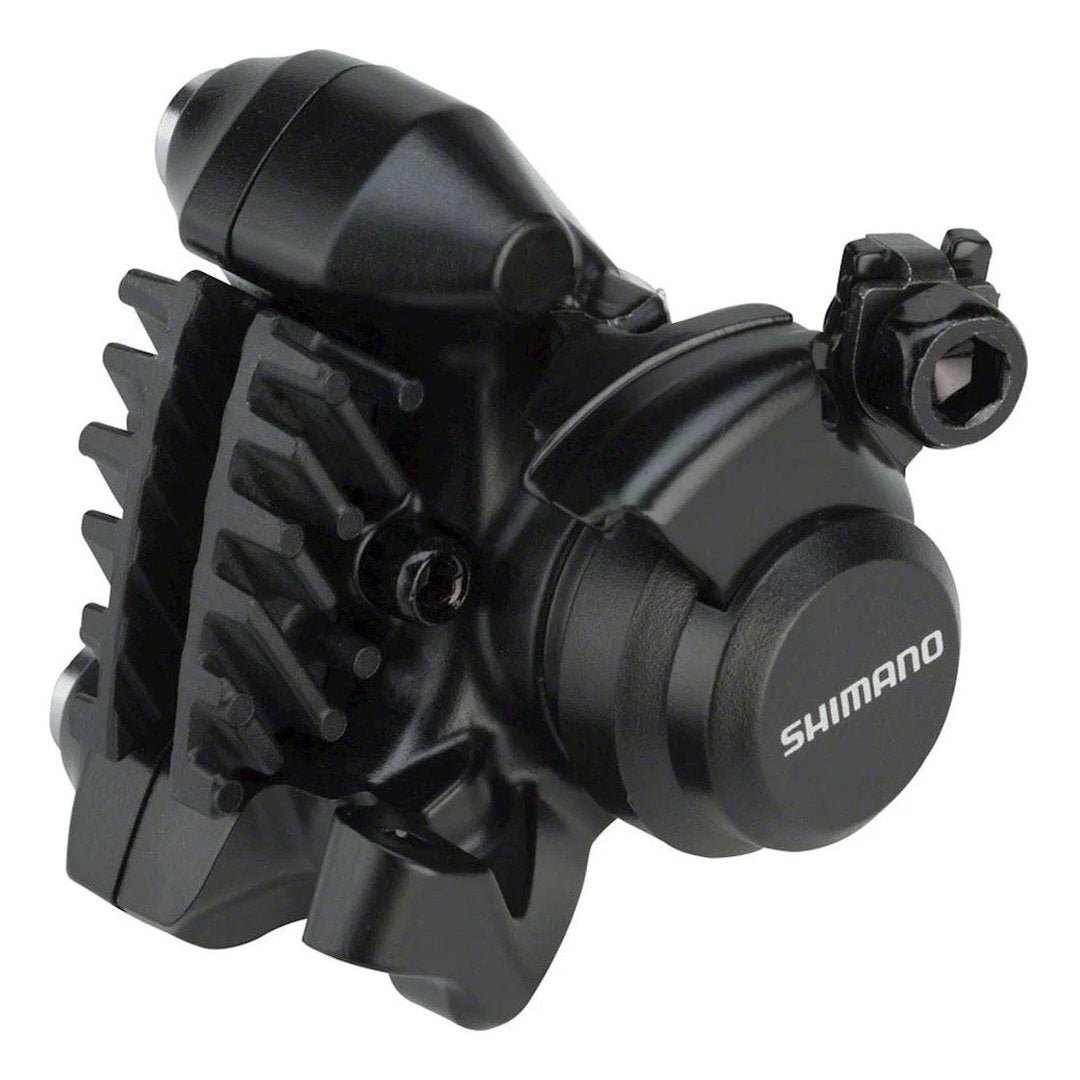

SHIMANO - Flat Mount - Mechanical Disc Brake - Rear Caliper
The SHIMANO RS305 mechanical disc brake is easy to control as well as set up and maintain. It mounts via SHIMANO's Flat Mount interface.
[tab name='SPECIFICATIONS']
MODEL NO | BR-RS305-R |
SERIES | SHIMANO |
Color | Black |
Remarks |
SHIMANO logo
|
Compatibility |
NEW SUPER SLR
|
Brake type |
Mechanical disc brake
|
Caliper fixing bolt_Anti loosen method | Bolt fix pin |
Caliper fixing bolt_Tool size | 4 mm |
Fixing screw spec for rear mount_10 mm mount | ✔ |
Fixing screw spec for rear mount_15 mm mount | ✔ |
Fixing screw spec for rear mount_20 mm mount | ✔ |
Fixing screw spec for rear mount_25 mm mount | ✔ |
Fixing screw spec for rear mount_30 mm mount | ✔ |
Fixing screw spec for rear mount_35 mm mount | ✔ |
Mount type | Flat mount |
Pad_Option | L03A Resin |
Pad_Standard | K03S Resin |
Pad mount | Pad axle |
Piston | 1 |
Recommended disc brake rotor |
SM-RT54/RT56 (160 mm), SM-RT70 (140 mm/160 mm)
|
ICE TECHNOLOGIES pad compatible caliper | ✔ |
Pad_Option 1 | L03A Resin |
Pad_Standard 1 | K03S Resin |
