[tab name="DESCRIPTION"]

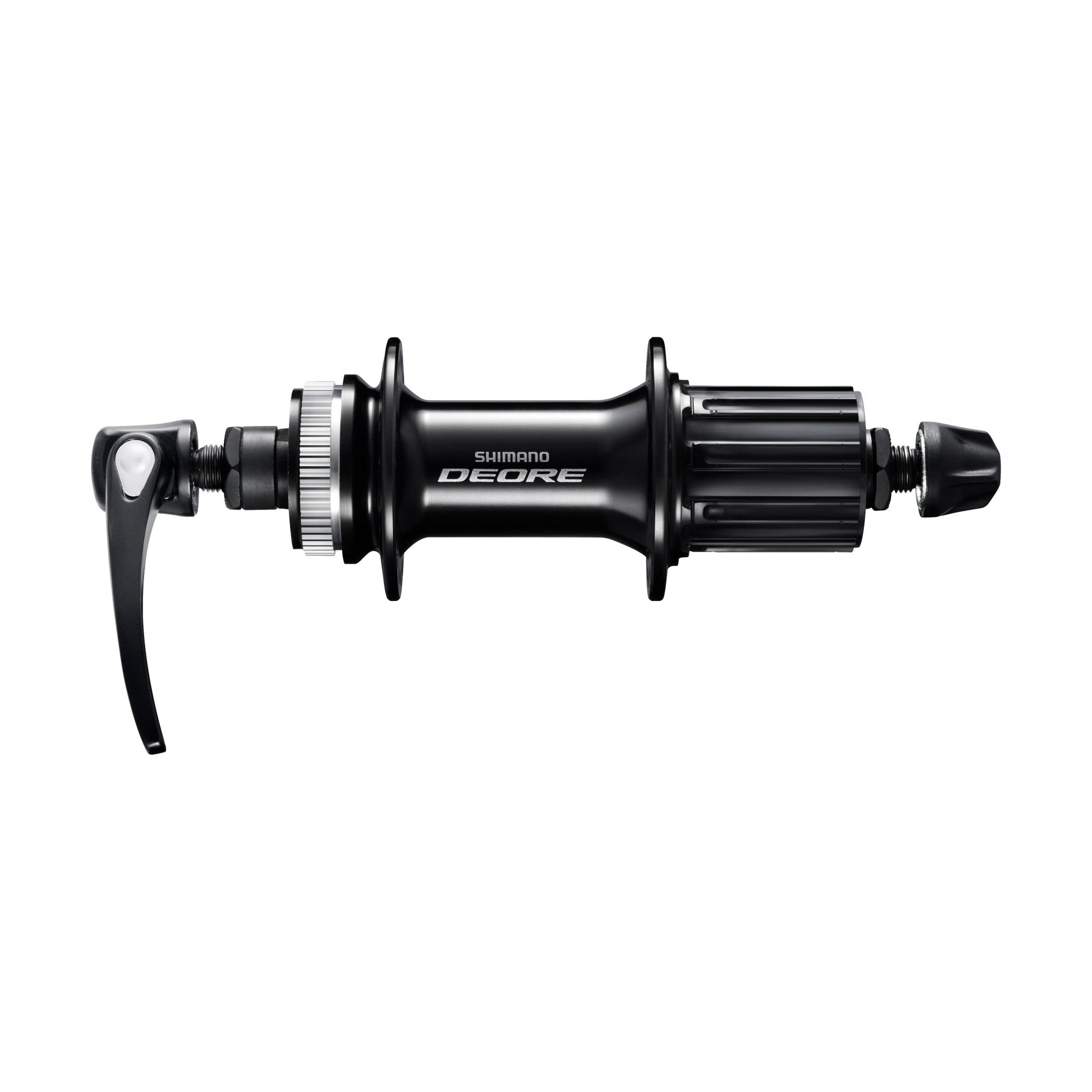

SHIMANO DEORE - Rear FREEHUB - CENTER LOCK - Disc Brake - Quick Release - 10-speed
The SHIMANO DEORE FH-M6000 rear hub is compatible with 10-speed cassettes, CENTER LOCK rotors, and quick release dropouts. Thanks to its high quality seals and angular contact bearings it will deliver years of reliable service.
[tab name="SPECIFICATIONS"]
MODEL NO | FH-M6000 |
SERIES |
DEORE M6000 Series
|
Color | Series Black |
Remarks | * for Trekking |
Brake type |
CENTER LOCK disc brake
|
Axle fixing method | Quick release |
Bearing_Cone | CBN |
External serration disc brake rotor lock ring_without | ✔ |
Flange diameter Left/Right (mm) | 53.8 |
Flange distance (mm) | 57.4 |
Internal serration disc brake rotor lock ring_without | ✔ |
Offset (mm) | 6.6 |
P.C.D. left / right (mm) | 45 |
Internal grease sleeve | ✔ |
O.L.D. (mm) | 135 |
Spoke hole_32H | ✔ |
Spoke hole_36H | ✔ |
Rear speeds |
8-10-speed, MTB 11-speed
|
Quick release skewer length (mm)_168 | ✔ |
Quick release skewer length (mm)_173 | ✔ |
Seal_FREEHUB body | Contact |
Seal_Hub |
Labyrinth & Contact
|
Color_1 Hub shell | Series Black |
Color_1 Quick release | Series Black |
HG spline (Others) | ✔ |
Engagement type | Pawl ratchet |
