Superior chain retention and power transfer for fun riding over the rough stuff
Grow your confidence riding hard over the rough stuff with this crankset's wide-range gearing and seamless pedaling.
FEATURES

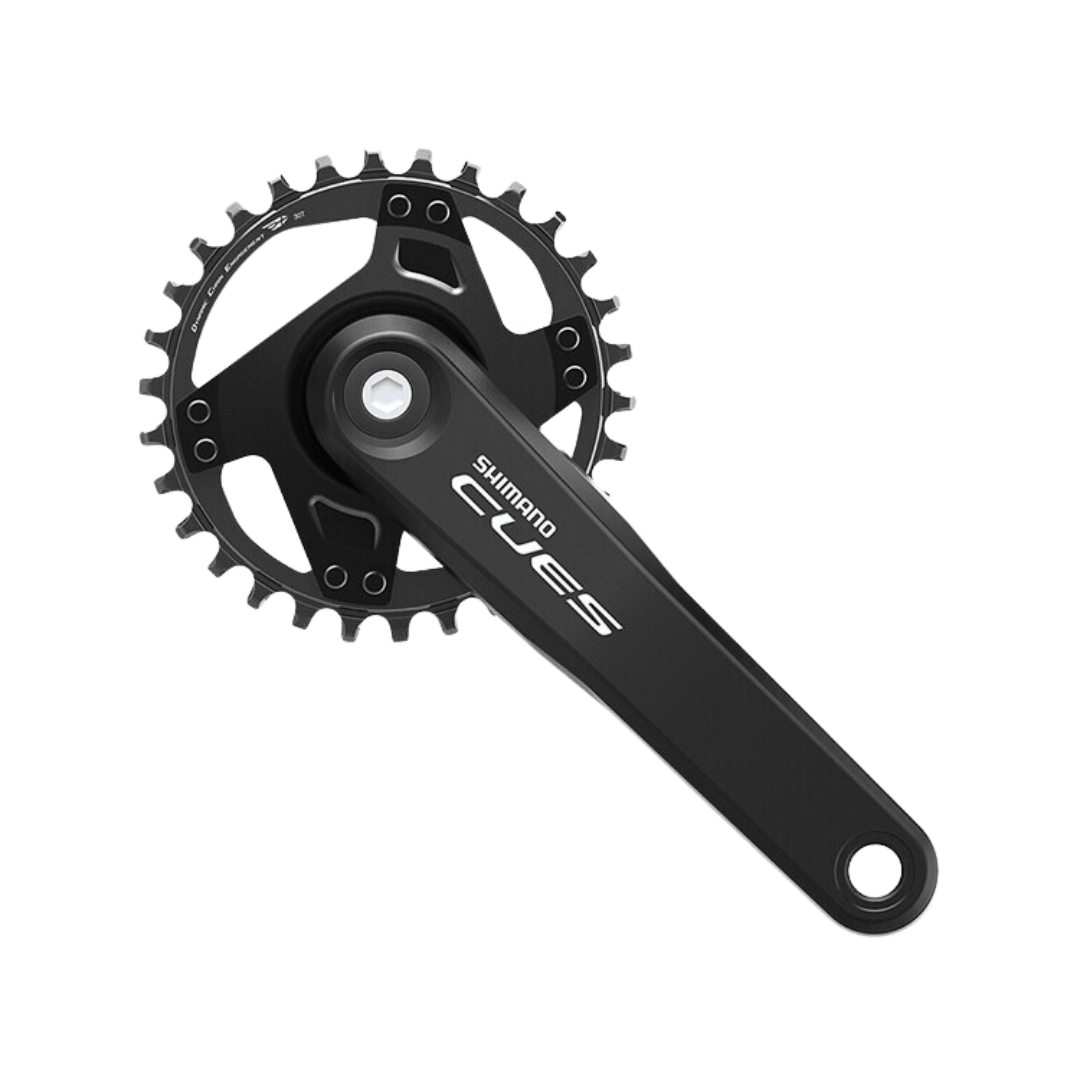

MODEL NO | FC-U4000-1 |
SERIES | CUES U4000 Series |
Color | Series color |
Rear speeds | 11/10/2009 |
Compatible chain | LINKGLIDE, HG 11-speed |
Chain line (mm) | 52 (30T, 32T), 50 (40T, 42T) |
O.L.D.|Thru (mm) |
148, 142 (30T, 32T), 142 (40T, 42T)
|
O.L.D.|QR/Nut (mm) |
141, 135 (30T, 32T), 135 (40T, 42T)
|
P.C.D. (mm) | Riveted |
Spider/gear arms | 4 |
Chainring combination | 30T, 32T, 40T, 42T |
Q-factor (mm) | 178 |
Crank arm length (mm)|170 | ✔ |
Crank arm length (mm)|175 | ✔ |
Optional chain guard|With chain guard | X (40T, 42T) |
Optional chain guard|Without chain/bash guard | ✔ |
Compatible bottom bracket type|Square | ✔ |
Recommended bottom bracket|Threaded (normal) | BB-UN101 |
Axle length of BB-UN/ES (mm)|Threaded (normal) | LL123 |
Threaded bottom bracket shell width (mm)|68 | ✔ |
Threaded bottom bracket shell width (mm)|73 | ✔ |
Chain case compatible | X (40T, 42T) |
Stainless chain guard fixing screw | ✔ |
Crank fixing screw included | ✔ |
