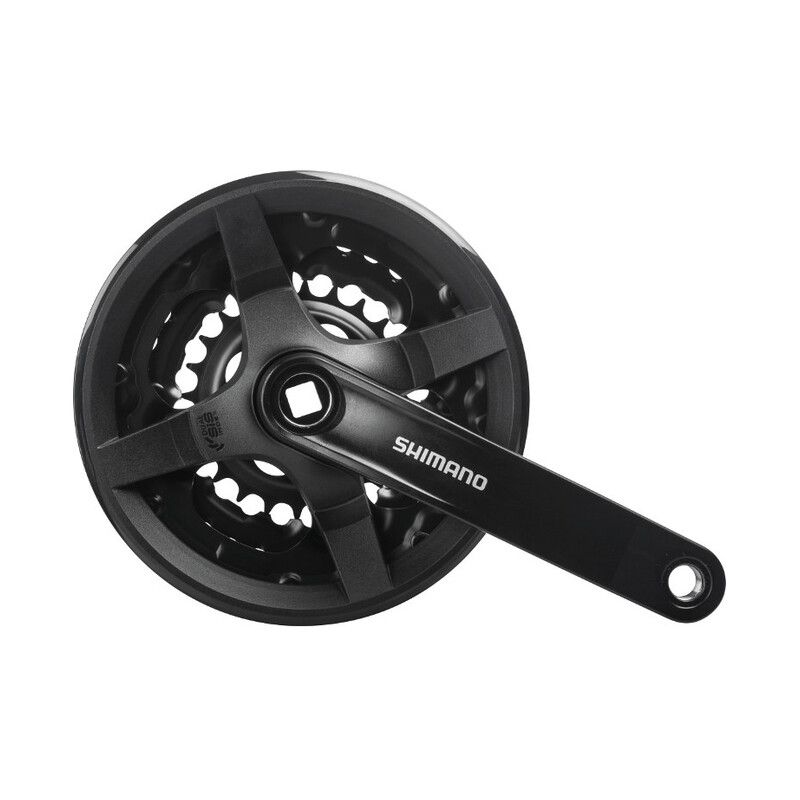

Name: Shimano Crankset 3X8/7/6 FC-TY301
Brand: SHIMANO
SKU: 90634
Price: 1640.0 INR
Availability: InStock

Shimano Crankset 3X8/7/6 FC-TY301

Product Details

Brand: SHIMANO

UPC: 689228945111

SHIMANO TOURNEY TY - MTB Crankset - 181.5 mm Q-Factor - 3x8/7/6-speed

Compatible with a 3x8, 3x7, and 3x6 speed drivetrains, the SHIMANO TOURNEY TY crank delivers reliable, precise DUAL SIS shifting.

Light and reliable shifting

Versatile performance

Wide compatibility with multiple components

Quick and precise assembly

MODEL NO	FC-TY301
SERIES	TOURNEY
Color	Black
Remarks	150 mm spec. available for 42-34-24T (Black) * Bottom bracket Spec for Chain line 50 mm
Axle length of BB-UN/ES (mm)_Threaded (chain case)	D-NL K
Axle length of BB-UN/ES (mm)_Threaded (normal)	D-NL, *D-EL
Chain case compatible	✔
Chainring combination	42-34-24T
Compatible bottom bracket type_Square	✔
Crank arm length (mm)_170	✔
Crank arm length (mm)_175	✔
Spider/Gear arms	4
Optional chain guard_With chain guard	X (integrated type)
Optional chain guard_Without chain/bash guard	✔
Recommended bottom bracket_Threaded (chain case)	BB-UN101-K, BB-UN300K
Recommended bottom bracket_Threaded (normal)	BB-UN101, BB-UN300
Threaded bottom bracket shell width (mm)_68	✔
Threaded bottom bracket shell width (mm)_73	✔
Q-factor (mm)	181.5
Chain line (mm)	47.5/47.5 + t/50
Compatible chain	HG 8/7/6-speed
P.C.D. (mm)	Riveted
Rear speeds	8/7/2006
O.L.D._QR/Nut (mm)	135
O.L.D._Thru (mm)	142
