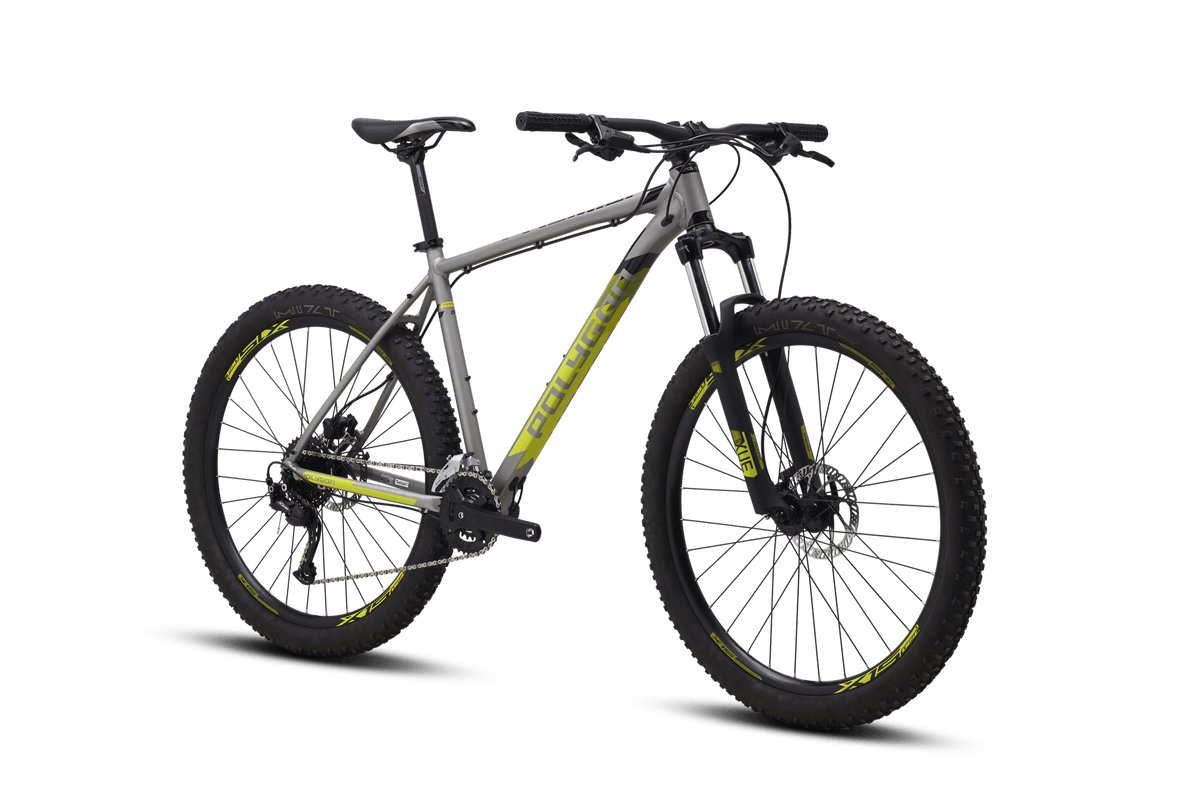

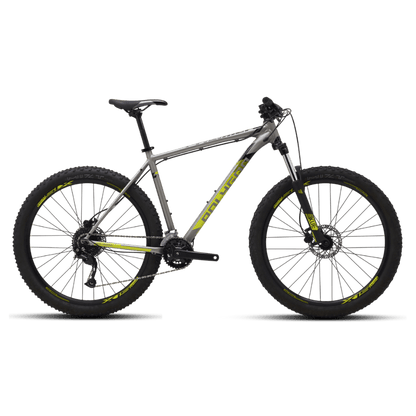

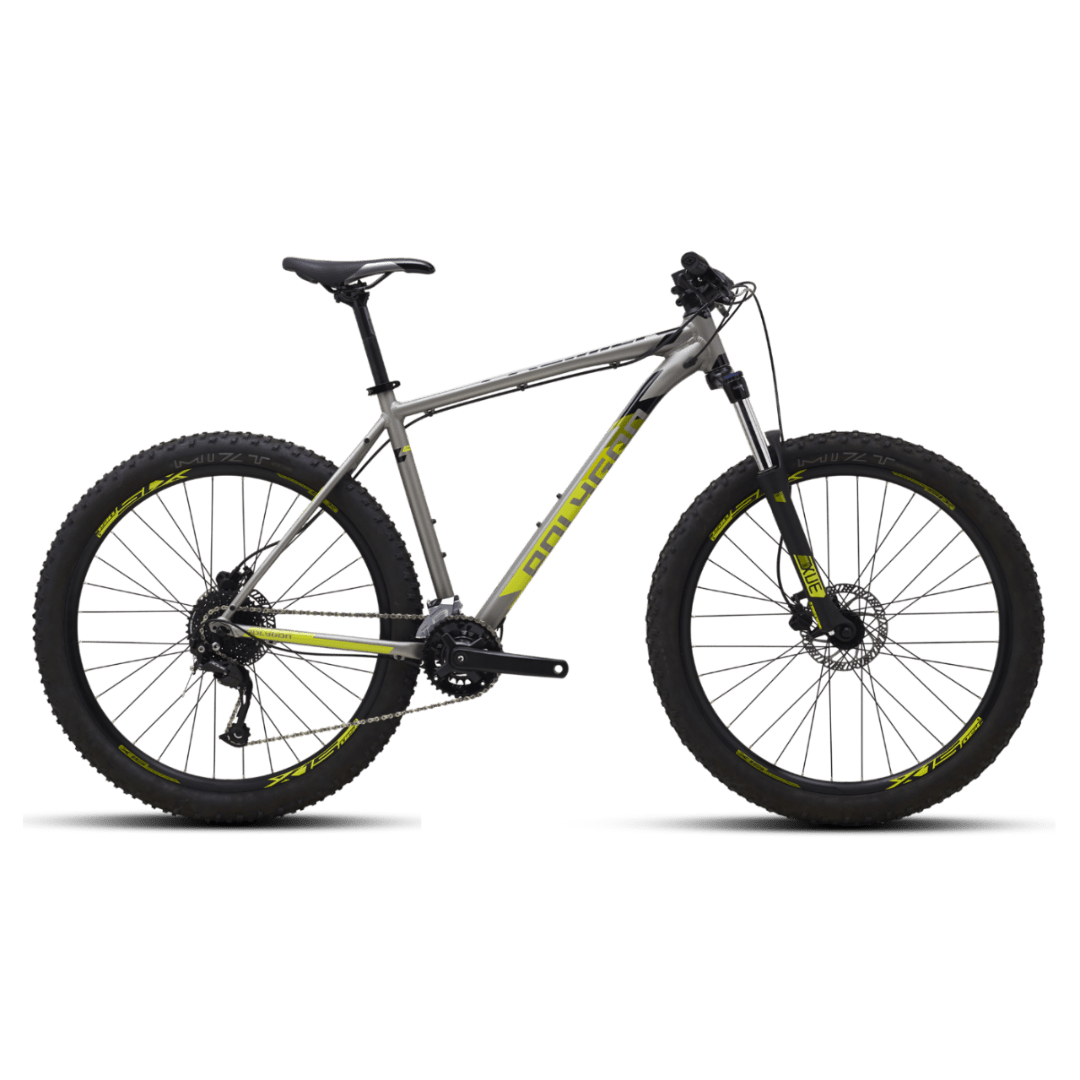

The Premier series was created for riders who want a versatile mountain bike. Built with a lightweight and durable AL6 frame with modern geometry for a more comfortable leisure ride, the Premier will keep riders enthusiastic about riding for years to come. The Premier series fits the rider and sets them up for optimal efficiency and power transfer for day to day ride and sports.
[tab name='SPECIFICATIONS']
Frame |
ALUTECH XC SPORT FRAME
|
Fork |
SUNTOUR XCM-HLO 120mm TRAVEL
|
Rear Shock | - |
Head Set |
ZERO STACK (ZS) THREADLESS
|
Stem |
ENTITY SPORT, ALLOY
|
Handlebar |
ENTITY SPORT, ALLOY
|
Rear Derailleur |
SHIMANO M3100 ALIVIO 9-SP
|
Shifter |
SHIMANO M2010 ALTUS 9-SP
|
Bottom Bracket | CARTRIDGE BB |
Crank Set |
ALLOY TN-CY10, 36/22T, 170MM
|
Cassette |
SHIMANO CS-HG200 11-36T, 9-SP
|
Chain | KMC X9 |
Pedal | - |
Brake |
HYDRAULIC DISC BRAKE
|
Wheel Set |
DOUBLE WALL ALLOY RIMS W/ ALLOY HUBS
|
Tire |
PERFORMANCE TIRE 27.5" X 2.10"
|
Saddle | ENTITY VOID |
Seat Post |
ENTITY SPORT, ALLOY
|
Wheel Size | 27.5 |
Color | GREY |
Weight | - |
The specifications, colors, and availability of the products can be subjects to alter without prior notification
[tab name='SIZING']
Size | Height/cm | Seat Tube Length/in |
S | 152.5-165 | ✔ |
M | 162.5-175 | ✔ |
L | 172.5-185 | ✔ |
XL | 182.5-195 | ✔ |

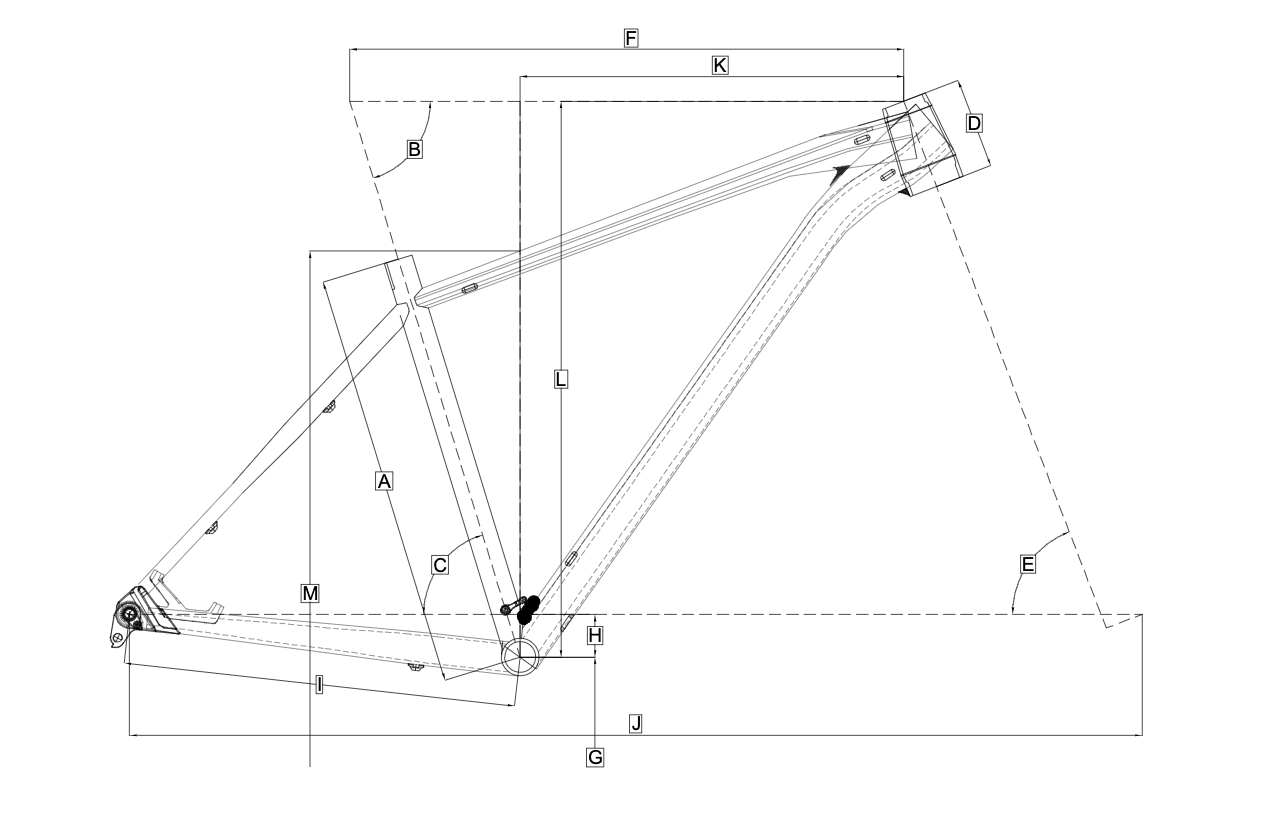

Size | S | M | L | |
A | Seat Tube Length | 406 | 456 | 506 |
B | Seat Tube Angle | 73 | 73 | 73 |
C | Effective Seat Tube Angle | 73 | 73 | 73 |
D | Head Tube Length | 100 | 100 | 105 |
E | Head Tube Angle | 69 | 69 | 69 |
F | Effective Top Tube | 570 | 585 | 605 |
G | BB Height | 299 | 299 | 299 |
H | BB Offset | 47 (DROP) | 47 (DROP) | 47 (DROP) |
I | Chainstay Length | 430 | 430 | 430 |
J | Wheelbase | 1072 | 1087 | 1107 |
K | Frame Reach | 383.5 | 398.5 | 417 |
L | Frame Stack | 610 | 610 | 615 |
M | Standover Height | 713 | 753 | 793 |
