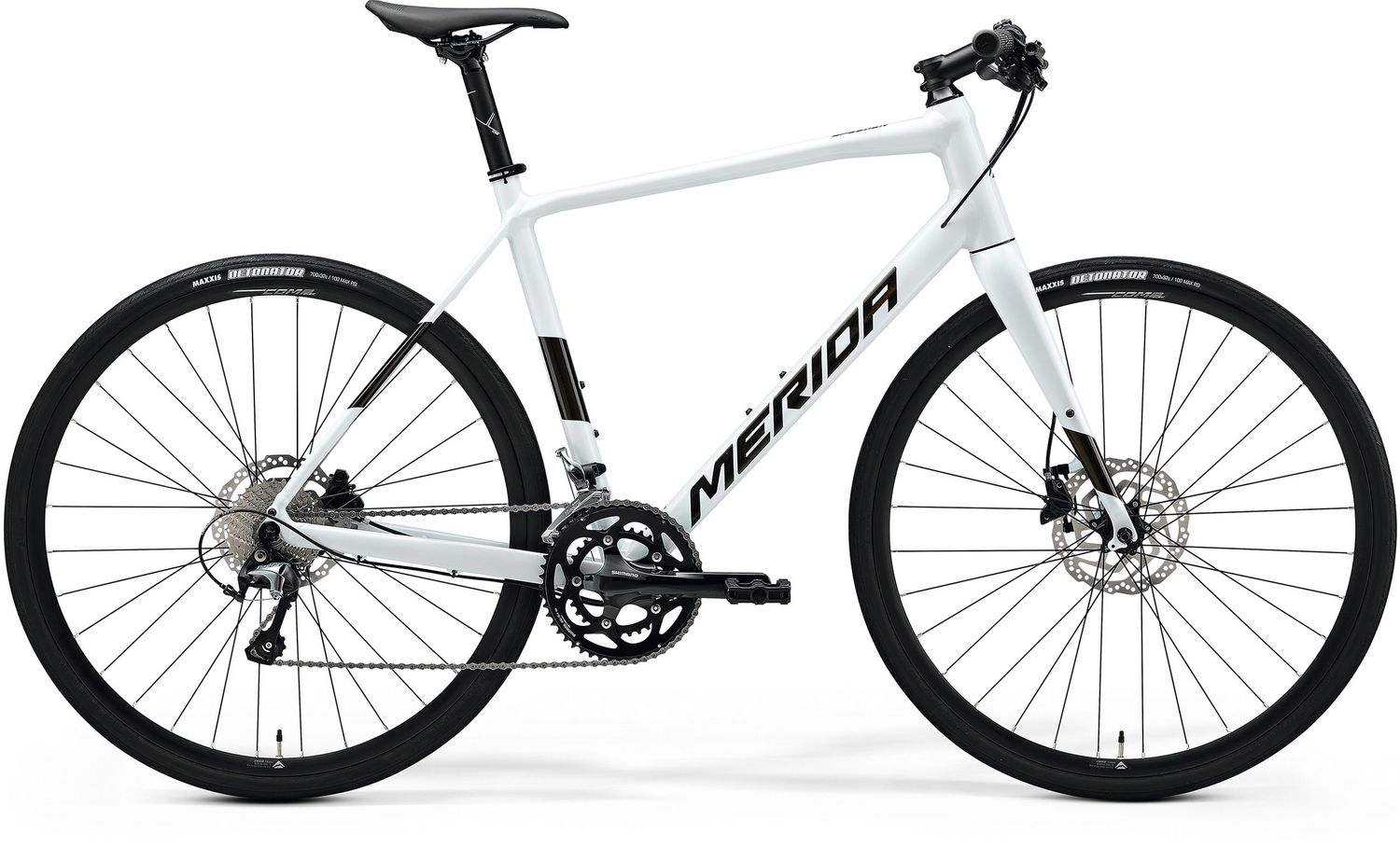

A sleek and stylish fitness bike with quality components that deliver smooth and accurate action at a sensible price. The triple butted aluminium frame paired with the full carbon fork keeps weight down, while the straight handlebar setup creates a more upright and, therefore, comfortable riding position and improves the visibility of what lies ahead. Multiple fixing points enhance the day to day usability.
Fast and lightweight, the SPEEDER shares its genes with our road bike range. The geometry offers an extended reach for added stability while providing a more upright and comfortable riding position. The sporty yet comfort inspired geometry paired with control enhancing flat handlebars and powerful disc brakes make the SPEEDER ideal for fast commuting or fitness rides. Wider tyres and more tyre clearance underline the comfort element even further and give the SPEEDER more grip when it counts. Road.cc call the 900 an 'excellent fast flat-bar road bike with awesome performance' and the 200 'an enjoyable flat-barred flyer for fitness, commuting and everyday riding'.
Component | Details |
Frame | SPEEDER LITE III
|
Frame Size | XXS, XS, S, M, L, XL |
Color | PEARL WHITE (GUARDED GOLD) |
Fork | MERIDA SPEEDER CF2
|
Brakes | Shimano MT200 2 piston |
Rotors | Shimano RT10 180mm |
Brake Lever | Shimano MT200 |
Headset | MERIDA M2331 Neck |
Handlebar | MERIDA EXPERT CC
|
Handlebar Stem | MERIDA EXPERT CC
|
Grip | MERIDA Comp EC |
Derailleur (Front) | Shimano Tiagra |
Derailleur (Rear) | Shimano Tiagra GS |
Shifters | Shimano Tiagra |
Seat Post | MERIDA COMP CC
|
Seat Clamp | MERIDA EXPERT |
Saddle | MERIDA COMP SL
|
Pedal | VP VPE-891 |
Chain | KMC X10 |
Crank | Shimano RS400
|
Freewheel | Shimano GRX HG500
|
Bottom Bracket | Shimano BB-RS500 BSA |
Hubs | Shimano HB-QC300 / FH-QC300-HM
|
Rim | MERIDA COMP SL
|
Tyre (Front) | Maxxis Detonator 700x32C wire |
Tyre (Rear) | Maxxis Detonator 700x32C wire |
Axles | QR |
Spokes | Black stainless |
Approx. Weight | 10.5 kg
|
FRAME SIZE | Height (CM) |
XS | 150-159 |
S/M | 155-167 |
M/L | 168-183 |
L | 175-189 |
XL | 184-195 |
XXL | 190-200 |
Frame Size | XXS | XS | S | M | L | XL |
Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" |
ST seat tube [mm] | 470 | 500 | 520 | 540 | 560 | 590 |
TT top tube [mm] | 555 | 561 | 571 | 583 | 597 | 610 |
CS chain stay length [mm] | 438 | 438 | 438 | 438 | 438 | 438 |
HTA head tube angle [°] | 70 | 70.5 | 71 | 71.5 | 72 | 72 |
STA seat tube angle [°] | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
BD bottom bracket drop [mm] | 65 | 65 | 65 | 65 | 65 | 65 |
HT head tube [mm] | 150 | 160 | 170 | 190 | 215 | 240 |
FL fork length [mm] | 395 | 395 | 395 | 395 | 395 | 395 |
R reach [mm] | 389 | 392 | 398 | 404 | 410 | 416 |
S stack [mm] | 562 | 573 | 585 | 606 | 631 | 655 |
WB wheel base [mm] | 1051 | 1053 | 1058 | 1066 | 1075 | 1088 |
SH stand over height [mm] | 744 | 769 | 787 | 806 | 828 | 855 |
