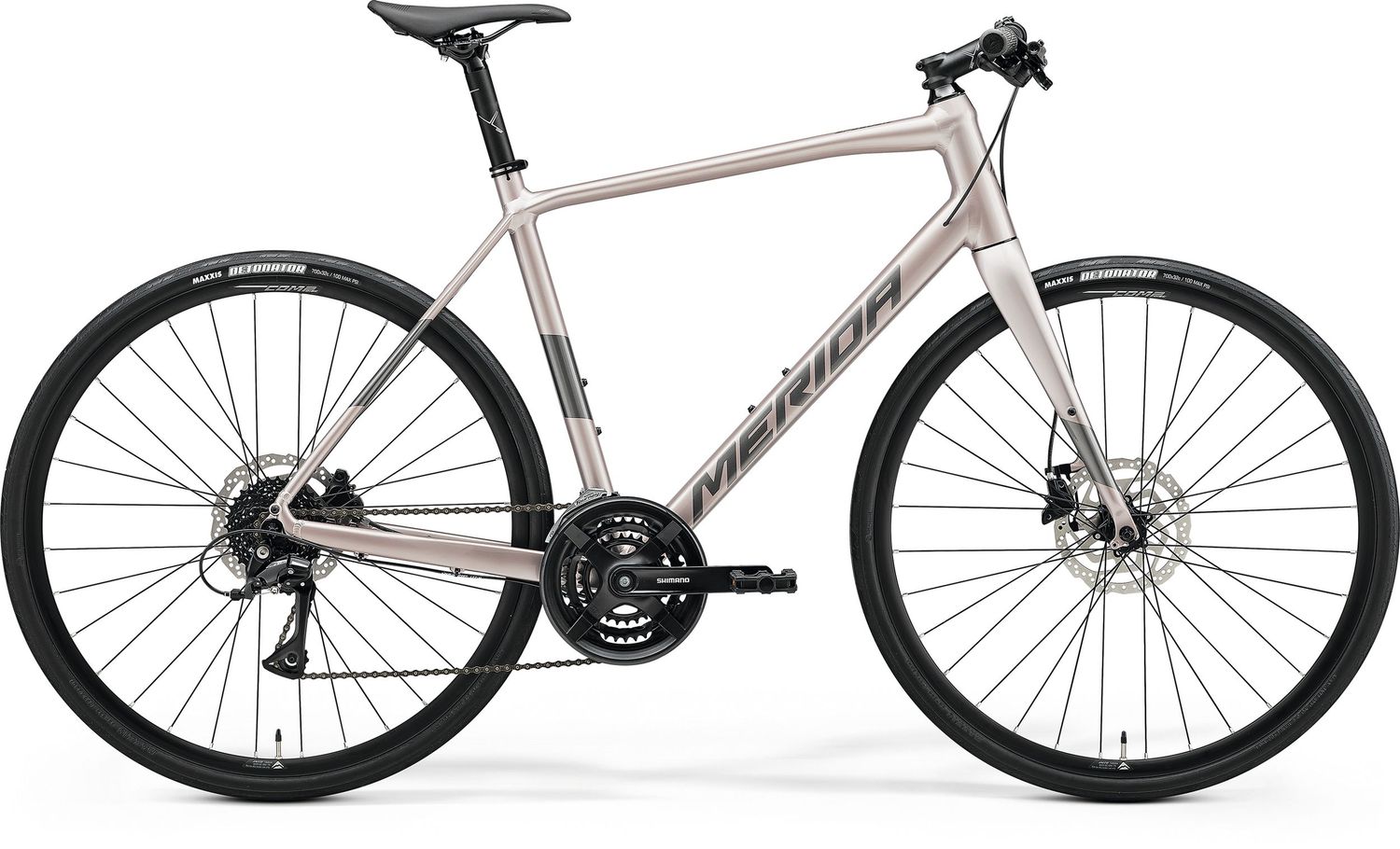

Our entry model into our SPEEDER range, the SPEEDER 100 brings the same high-quality aluminium frame and full carbon fork to the table as its more high-end family members, but combines it with high-value components. Powerful disc brakes enable perfect speed control, while the broad gear range of the triple chain ring drivetrain makes climbing a breeze and keeps top speeds high. Multiple fixing points allow bottle cages, fenders, kickstand and a rear rack to be fitted.
Fast and lightweight, the SPEEDER shares its genes with our road bike range. The geometry offers an extended reach for added stability while providing a more upright and comfortable riding position. The sporty yet comfort inspired geometry paired with control enhancing flat handlebars and powerful disc brakes make the SPEEDER ideal for fast commuting or fitness rides. Wider tyres and more tyre clearance underline the comfort element even further and give the SPEEDER more grip when it counts. Road.cc call the 900 an 'excellent fast flat-bar road bike with awesome performance' and the 200 'an enjoyable flat-barred flyer for fitness, commuting and everyday riding'.
Component | Details |
Frame | SPEEDER LITE III |
Frame Size | XXS, XS, S, M, L, XL |
Color |
CITY ROSE (GUNMETAL GREY)
|
Fork |
MERIDA SPEEDER CF2
|
Brakes | Shimano MT200 |
Rotors | Shimano RT10 |
Brake Lever | Shimano MT200 |
Headset |
MERIDA M2331 Neck
|
Handlebar | MERIDA COMP TK |
Handlebar Stem | MERIDA COMP CC |
Grip | MERIDA Comp EC |
Derailleur (Front) | Shimano TY601 |
Derailleur (Rear) |
Shimano Acera-Altus 8S
|
Shifters | Shimano Altus |
Seat Post | MERIDA COMP CC |
Seat Clamp | MERIDA EXPERT |
Saddle | MERIDA COMP SL |
Pedal | VP VPE-891 |
Chain | Sunrace CN-M84 |
Chainguard | Attached |
Crank | Shimano TY301 |
Freewheel | Sunrace CSM558 |
Bottom Bracket |
FSA TH-7420ST, Cartridge Bearing
|
Hubs |
Shimano HB-QC300 / FH-QC300-HM
|
Rim | MERIDA COMP SL |
Tyre (Front) | Maxxis Detonator |
Tyre (Rear) | Maxxis Detonator |
Axles | QR |
Spokes | Black stainless |
Approx. Weight | 11 kg |
FRAME SIZE | Height (CM) |
XS | 150-159 |
S/M | 155-167 |
M/L | 168-183 |
L | 175-189 |
XL | 184-195 |
XXL | 190-200 |
Frame Size | XXS | XS | S | M | L | XL |
Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" |
ST seat tube [mm] | 470 | 500 | 520 | 540 | 560 | 590 |
TT top tube [mm] | 555 | 561 | 571 | 583 | 597 | 610 |
CS chain stay length [mm] | 438 | 438 | 438 | 438 | 438 | 438 |
HTA head tube angle [°] | 70 | 70.5 | 71 | 71.5 | 72 | 72 |
STA seat tube angle [°] | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
BD bottom bracket drop [mm] | 65 | 65 | 65 | 65 | 65 | 65 |
HT head tube [mm] | 150 | 160 | 170 | 190 | 215 | 240 |
FL fork length [mm] | 395 | 395 | 395 | 395 | 395 | 395 |
R reach [mm] | 389 | 392 | 398 | 404 | 410 | 416 |
S stack [mm] | 562 | 573 | 585 | 606 | 631 | 655 |
WB wheel base [mm] | 1051 | 1053 | 1058 | 1066 | 1075 | 1088 |
SH stand over height [mm] | 744 | 769 | 787 | 806 | 828 | 855 |
