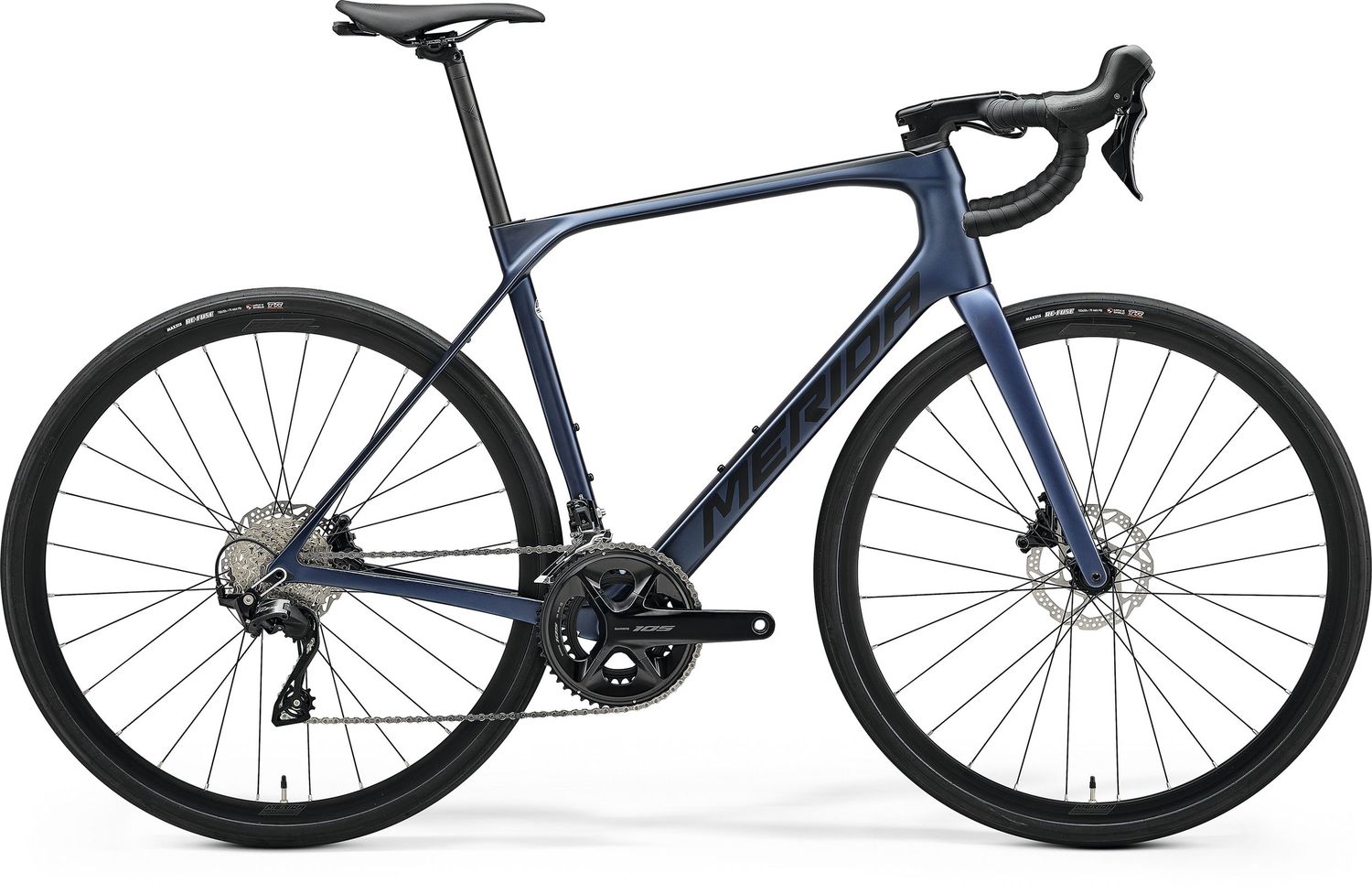

Our SCULTURA ENDURANCE 4000 is far from being a conventional entry-level carbon bike. Featuring the same test and award-winning CF3 carbon frame as its 'bigger brothers', it comes equipped with the latest Shimano 105 12-speed groupset that offers accurate shifting and pinpoint braking. The well-proven WIRE PORT cable management system keeps the cockpit free of cables and helps to give the bike a super sleek overall appearance.
The SCULTURA ENDURANCE is the perfect choice for more leisure-focused cyclists who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike. Wide tyres offer plenty of comfort, even on the most pothole-littered country lanes, while a longer head tube provides a more relaxed riding position. An instant hit with the international cycling press and besides being given a 'comfort' award by RennRad, it also managed to get a long list of compliments like 'excellent comfort', ‘confidence inspiring', 'lively feel' and 'enjoyable' by reference cycling media such as Gran Fondo, Cyclingnews, Cyclingtips and Road.cc. Compared to its namesake, the SCULTURA, the ENDURANCE has a more comfort-orientated geometry, plenty of tyre clearance and seamless integration of the latest standards. It sits between the road-biased SCULTURA on one side and the gravel/adventure SILEX on the other, while the SCULTURA ENDURANCE GR lineup offers gravel-racing focussed options with off-road ready tyres and flared handlebars.
Component | Specification |
Model Year | 2025 |
Frame | SCULTURA ENDURANCE CF3 II
|
Frame Size | XXS, XS, S, M, L, XL |
Fork | SCULTURA ENDURANCE CF3 DISC
|
Rim | MERIDA EXPERT SLII
|
Front Hub | Shimano HB-TC500
|
Rear Hub | Shimano HB-TC500-HL
|
Front Tyre | Maxxis RE-FUSE 700x32C Fold |
Rear Tyre | Maxxis RE-FUSE 700x32C Fold |
Alternate Rear Hub | MERIDA EXPERT TR / MERIDA EXPERT SL
|
Crank | Shimano 105 R7100
|
Bottom Bracket | Shimano SM-BB72-41B Pressfit 86.5 |
Cassette | Shimano 105 R7101
|
Chain | Shimano M6100-12 |
Shifters | Shimano 105 disc |
Front Derailleur | Shimano 105 |
Rear Derailleur | Shimano 105 GS |
Brake Lever | Shimano 105 |
Brakes | Shimano 105 Hydraulic disc |
Rotors | Shimano RT54 160mm |
Headset | MERIDA TEAM SL, VP-MRBHB (SE-301 neck) |
Stem | MERIDA EXPERT SL 2PII
|
Stem Size | 90 mm (XXS/XS/S), 100 mm (M), 110 mm (L/XL) |
Handlebar | MERIDA EXPERT SLII
|
Grip | MERIDA ROAD Expert |
Seat Post | MERIDA EXPERT CC
|
Seat Clamp | MERIDA EXPERT |
Saddle | MERIDA COMP SL
|
Approximate Weight | 9.3 kg (weighed at frame size M)
|
FRAME SIZE | Height (CM) |
XS | 158-167 |
S | 163-172 |
S/M | 168-177 |
M/L | 173-182 |
L | 178-187 |
XXL | 183-193 |
Frame Size | XXS | XS | S | M | L | XL |
Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" |
ST Seat Tube [mm] | 440 | 470 | 490 | 510 | 530 | 560 |
TT Top Tube [mm] | 515 | 524 | 538 | 553 | 568 | 583 |
CS Chain Stay Length [mm] | 418 | 418 | 418 | 418 | 418 | 418 |
HTA Head Tube Angle [°] | 70.5 | 71 | 72 | 73 | 73.5 | 73.5 |
STA Seat Tube Angle [°] | 74 | 74 | 73.5 | 73.5 | 73.5 | 73.5 |
BD Bottom Bracket Drop [mm] | 66 | 66 | 66 | 66 | 66 | 66 |
HT Head Tube [mm] | 140 | 152 | 161 | 177 | 197 | 222 |
FL Fork Length [mm] | 380 | 380 | 380 | 380 | 380 | 380 |
R Reach [mm] | 360 | 366 | 376 | 380 | 389 | 397 |
S Stack [mm] | 539 | 552 | 565 | 584 | 603 | 629 |
WB Wheel Base [mm] | 992 | 997 | 1001 | 1001 | 1016 | 1026 |
SH Stand Over Height [mm] | 742 | 767 | 785 | 801 | 823 | 852 |
