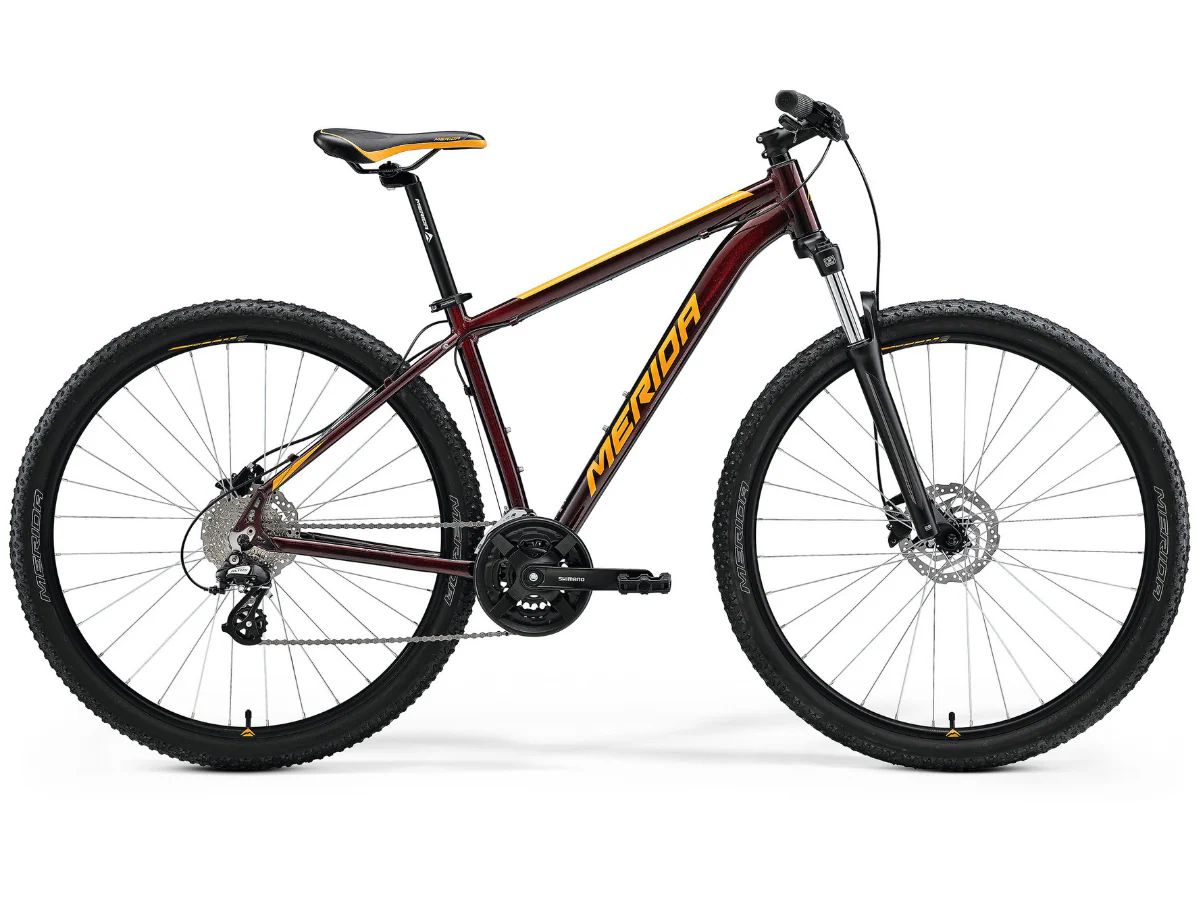

Merida Big Nine 15 - Burgundy Red / Orange

Our start into the world of 29er hardtails. The larger wheels combined with the 100 mm suspension fork offer additional comfort and control, and the chosen components help tackle your next off-road adventure.

Features

• Double butted aluminium frame with 29er wheels
• Less aggressive and more upright geometry for maximum control and comfort
• Shimano 8-speed drivetrain

Specifications

• Intended Use- Mountain
• Wheel Size- 29"
• Braking System- Power Hydraulic Brake System
• Frame Material- Aluminium
• Fork Material- Aluminium

Components

• Frame- BIG.NINE SPEED material: aluminium 29x2.25" max. wheelsize 135x9mm axle standard BSA bottom bracket standard
• Fork- SR Suntour XCT30 Coil 100mm suspension travel 29x2.25" max. wheelsize
• Bottom Bracket- FSA TH-7420ST-W, CARTRIDGE BEARING
• Chain- SUNRACE M84
• Crank- Shimano TY301 42-34-24 teeth 170 mm-S, 175 mm-M/XXL
• Shift Levers- Micro Shift TS39-L / Micro Shift TS39-8R
• Cassette- SUNRACE CSM668 11-32 teeth 8 speed
• Front Derailleur- Shimano FD-TY700
• Rear Derailleur- Shimano RD-M310
• Grips/Bartape- MERIDA EC
• Handlebar- MERIDA CC material: aluminium 690mm width 15mm rise
• Stem- MERIDA CC material: aluminium 31.8mm diameter 6° stem angle 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
• Saddle- MERIDA SPORT COMFORT
• Seatpost- MERIDA CC material: aluminium 30.9mm diameter 15mm setback
• Front Brake- Power DS100 2 piston hydraulic disc brake
• Rear Brake- Power DS100 2 piston hydraulic disc brake
• Front Wheel- MERIDA CC,Shimano TX505 100x9mm width front hub 32 spoke holes Centerlock
• Rear Wheel- MERIDA CC, Shimano TX505 135x9mm width rear hub 32 spoke holes Centerlock
• Tire- MERIDA K1080 29x2.2" wire
• Pedal- VP VPE-891
