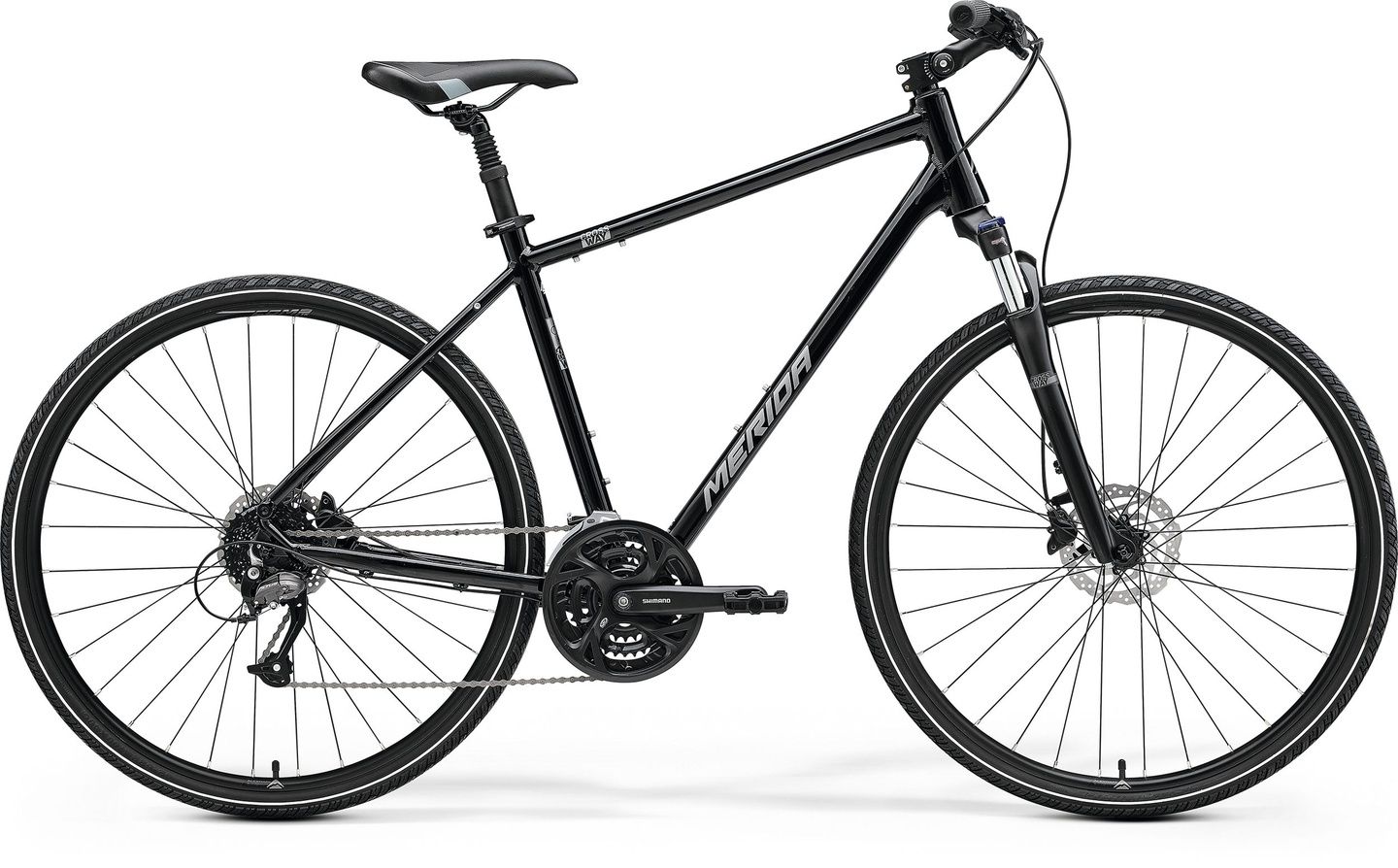

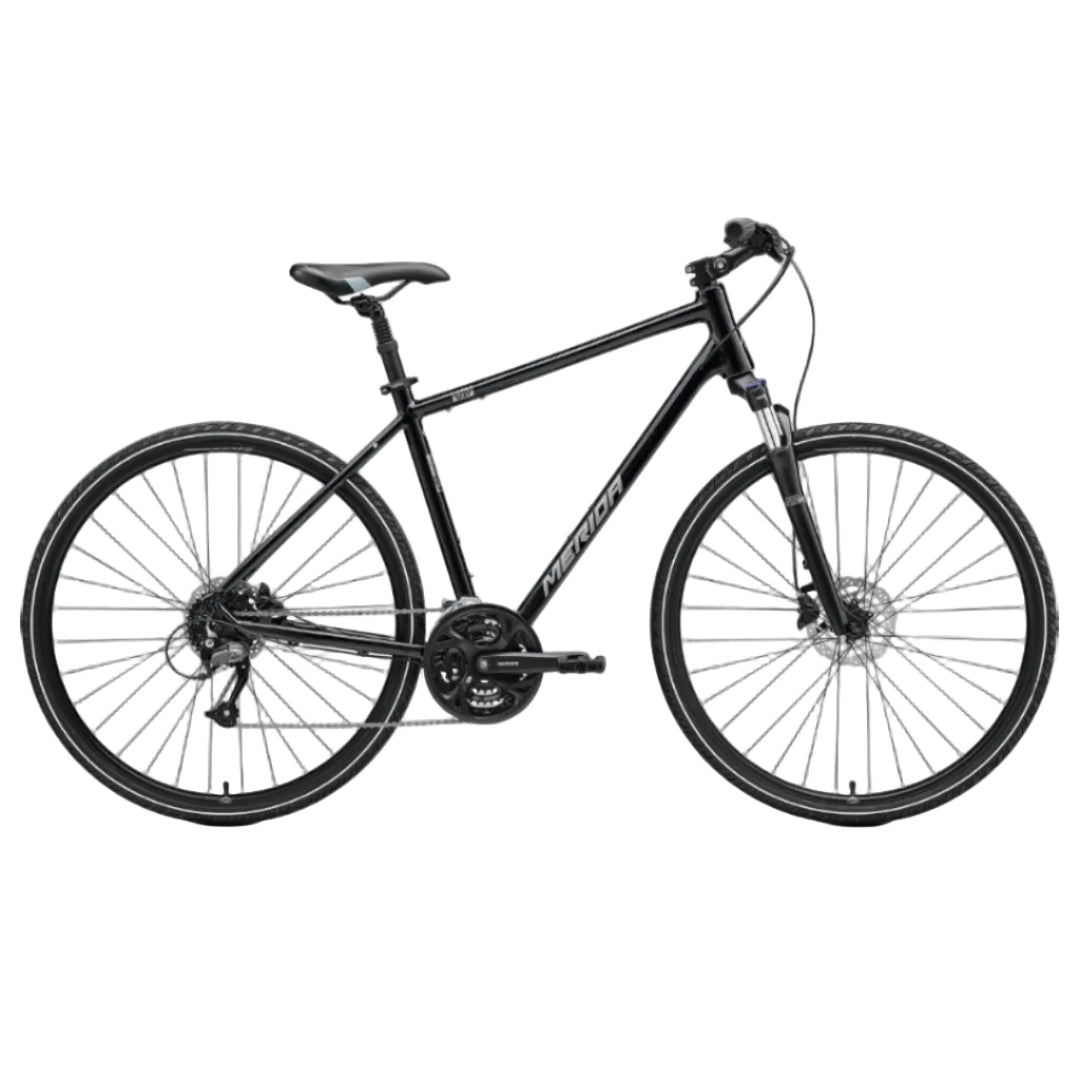

Merida Big Crossway 40 2022 - Black Silver

Merida Big Crossway 40 2022 - Black Silver

Home/Store/Bikes/Hybrids
SKU 90619
₹58,990.00
SIZE
In stock
1
Save this product for later
Merida Big Crossway 40 2022 - Black Silver
Home/Store/Bikes/Hybrids
Product Details
Brand: MERIDA
SKU: Big Crossway 40 Black
UPC: 4710949847951

HIGHLIGHTS

  1. Lightweight aluminium frame with comfort geometry
  2. Lockable suspension fork
  3. Hydraulic disc brakes
  4. Shimano gears
  5. Multiple fixing points for rear rack and fenders
  6. Suspension seat post and adjustable stem

Description

Hydraulic disc brake featuring trekking/hybrid bike with suspension seat post and fork for added comfort and safety. Your reliable disc brake equipped companion around town and cross country.

Hydraulic disc brake equipped trekking/hybrid bike that combines a lightweight aluminium frame featuring a comfort-orientated geometry with key components like a lockable suspension fork for added comfort and riding safety and reliable Shimano gears, allowing you to tackle steeper slopes with ease. Furthermore, the multiple fixing points make it easy to fit fenders, a rear rack and a kickstand, increasing the day to day versatility.

The CROSSWAY family has been the MERIDA range's backbone since its introduction. They are used worldwide and are proven as a reliable, versatile and fun-packed way of getting around. Designed to provide a comfortable place to take in the surroundings thanks to an upright riding position and comfort focused equipment such as suspension fork, suspension seat posts and adjustable stems, they offer the perfect blend of comfort, enjoyment and all-round functionality. They are suitable for fitness training, commuting and leisurely rides through forests and on trails. Made from high-quality, lightweight aluminium with the ability to mount mudguards, racks and kickstands, the CROSSWAY range is the perfect choice for everyday riding. The fitted 700c wheels cover ground quickly, while the extra volume of the 40 mm wide tyres offers puncture protection, grip and comfort. All CROSSWAY models are available as a low step-through frame, making mounting and dismounting straightforward.

Specifications

Component Specification
Frame CROSSWAY TFS III
Frame Size S (47)
Fork SR Suntour NEX HLO
Brakes Power DS100
Rotors Shimano RT10
Headset FSA TH888/NO.10
Handlebar MERIDA CC
Handlebar Stem MERIDA TK
Grip MERIDA EC
Derailleur (F) Shimano FD-M370
Derailleur (R) Shimano RD-M370
Shifters Shimano SL M370 9*3 Speed
Seat Post MERIDA TK
Seat Clamp MERIDA COMP QR
Saddle MERIDA CROSS SPORT
Pedal VP VPE-891
Chain KMC M99
Crank Shimano FC-M371
Freewheel Shimano CS-HG200
Bottom Bracket FSA TH-7420ST-W, Cartridge Bearing
Hubs Shimano TX505
Rim MERIDA CC
Tyre (Front) MERIDA K1171
Tyre (Rear) MERIDA K1171
Spokes Black steel
Max. Weight 120 kg
Color Orange Black
Country of Origin Taiwan

SIZE CHART

FRAME SIZE Height (CM)
XS 150-159
S/M 155-167
M/L 168-183
L 175-189
XL 184-195
XXL 190-200

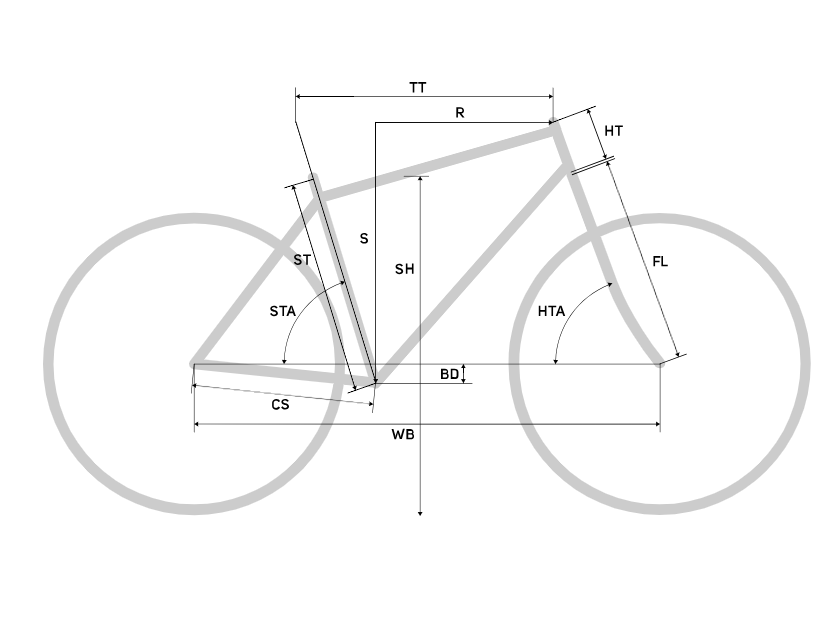

GEOMETRY

Frame Size XXS XS S M L XL
Tyre Sizes 28" 28" 28" 28" 28" 28"
ST Seat Tube [mm] 390 430 470 510 550 590
TT Top Tube [mm] 560 565 580 590 610 630
CS Chain Stay Length [mm] 460 460 460 460 460 460
HTA Head Tube Angle [°] 70.5 70.5 71 71 71.5 71.5
STA Seat Tube Angle [°] 74 74 73.5 73.5 73 73
BD Bottom Bracket Drop [mm] 70 70 70 70 70 70
HT Head Tube [mm] 130 130 140 155 175 205
FL Fork Length [mm] 468 468 468 468 468 468
R Reach [mm] 382 387 393 399 406 418
S Stack [mm] 620 620 631 645 667 695
WB Wheel Base [mm] 1076 1081 1085 1096 1104 1125
SH Stand Over Height [mm] 678 713 748 782 817 854
