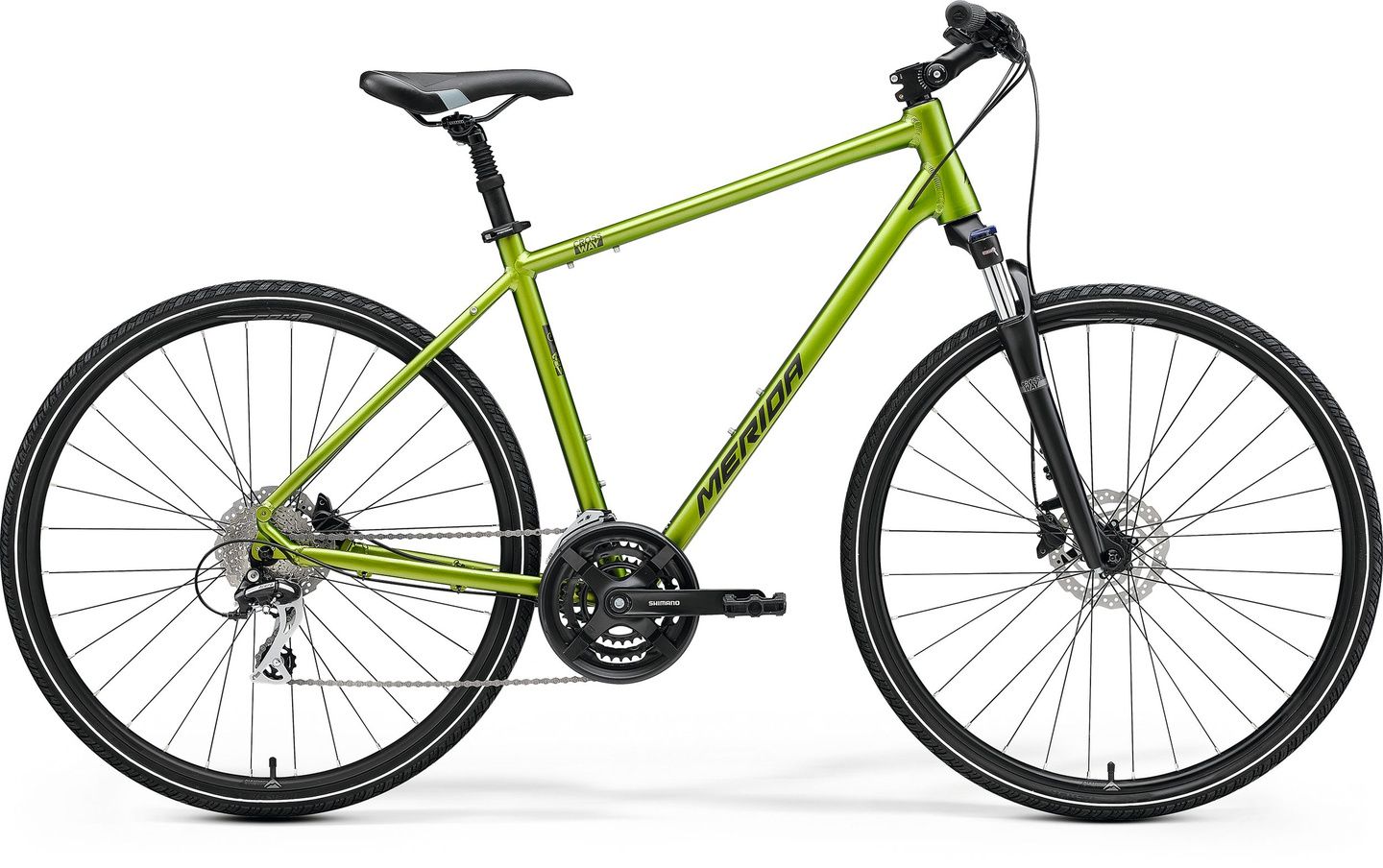

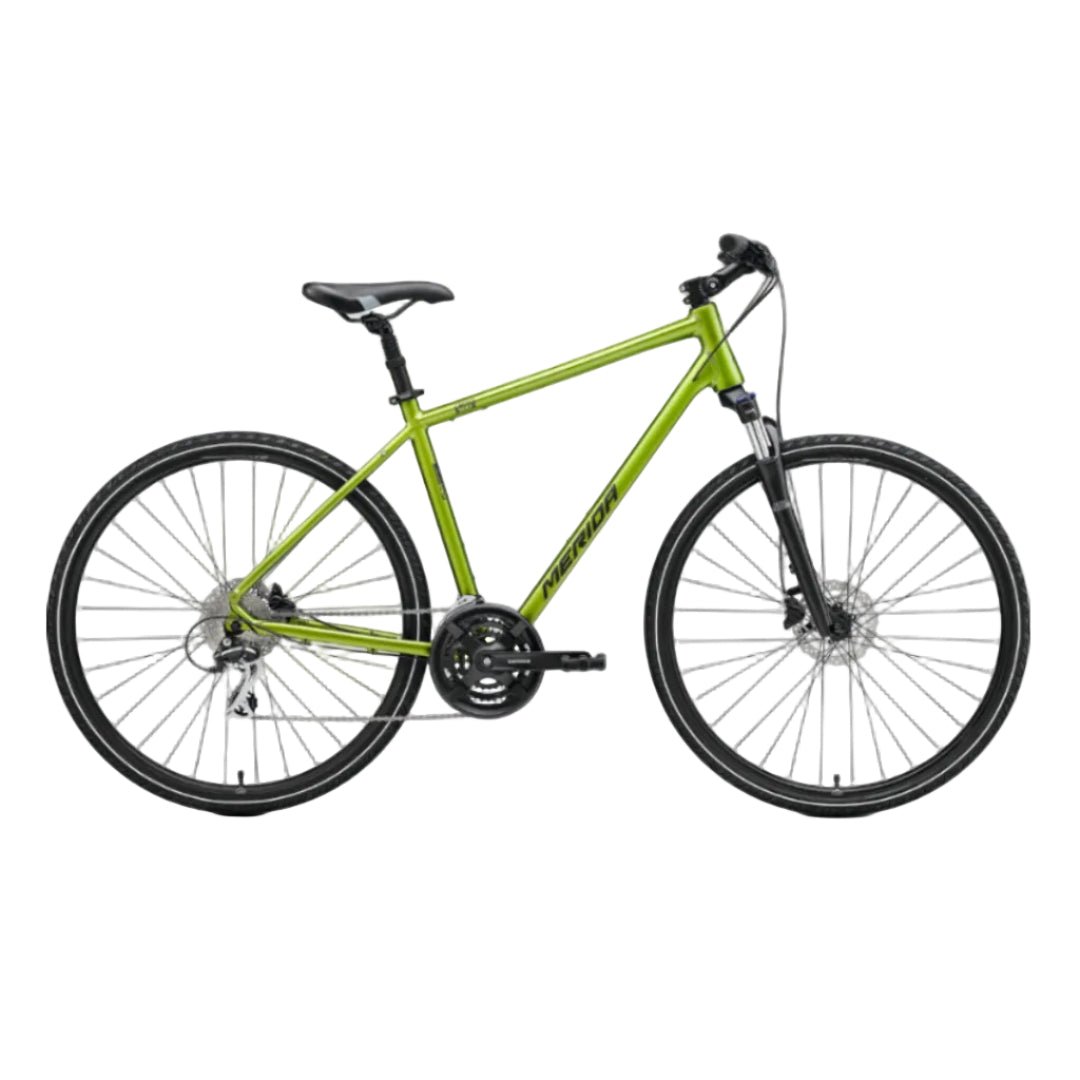

Hydraulic disc brake and suspension fork equipped trekking/hybrid bike at an attractive price. Your reliable disc brake equipped companion around town and cross country.
To go fast, you need to be able to slow down. Our CROSSWAY 20D comes equipped with powerful and low maintenance disc brakes that offer reliable stopping power, whatever the conditions or weather. This bike feels at home on the daily commute in the urban jungle as much on the weekend jaunt around the lanes and offers reliable performance at an attractive price. In combination with the powerful disc brakes, the suspension fork offers additional riding comfort and control.
The CROSSWAY family has been the MERIDA range's backbone since its introduction. They are used worldwide and are proven as a reliable, versatile and fun-packed way of getting around. Designed to provide a comfortable place to take in the surroundings thanks to an upright riding position and comfort focused equipment such as suspension fork, suspension seat posts and adjustable stems, they offer the perfect blend of comfort, enjoyment and all-round functionality. They are suitable for fitness training, commuting and leisurely rides through forests and on trails. Made from high-quality, lightweight aluminium with the ability to mount mudguards, racks and kickstands, the CROSSWAY range is the perfect choice for everyday riding. The fitted 700c wheels cover ground quickly, while the extra volume of the 40 mm wide tyres offers puncture protection, grip and comfort. All CROSSWAY models are available as a low step-through frame, making mounting and dismounting straightforward.
Component | Specification |
Frame | CROSSWAY TFS III |
Frame Size | XS (43) |
Fork | SR Suntour NEX HLO |
Brakes | Power DS100 |
Rotors | Shimano RT10 |
Headset | FSA TH888/NO.10 |
Handlebar | MERIDA CC |
Handlebar Stem | MERIDA TK |
Grip | MERIDA EC |
Derailleur (F) | Shimano FD-TY710 |
Derailleur (R) | Shimano RD-M360 |
Shifters | Shimano SL M310 8*3 Speed |
Seat Post | MERIDA TK |
Seat Clamp | MERIDA COMP QR |
Saddle | MERIDA CROSS SPORT |
Pedal | VP VPE-891 |
Chain | SUNRACE M84 |
Crank | Shimano TY301 |
Freewheel | SUNRACE CSM668 |
Bottom Bracket | FSA TH-7420ST-W, Cartridge Bearing |
Hubs | Shimano TX505 |
Rim | MERIDA CC |
Tyre (Front) | MERIDA K1171 |
Tyre (Rear) | MERIDA K1171 |
Spokes | Black steel |
Max. Weight | 120 kg |
Color | Silk Fall Green Black |
Country of Origin | Taiwan |
FRAME SIZE | Height (CM) |
XS | 150-159 |
S/M | 155-167 |
M/L | 168-183 |
L | 175-189 |
XL | 184-195 |
XXL | 190-200 |

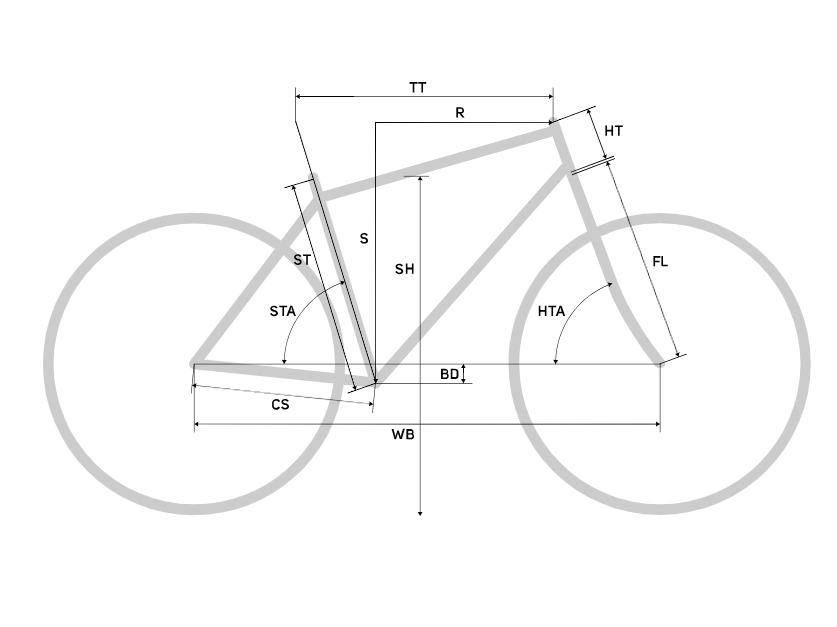

GEOMETRY
Frame Size | XXS | XS | S | M | L | XL |
Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" |
ST Seat Tube [mm] | 390 | 430 | 470 | 510 | 550 | 590 |
TT Top Tube [mm] | 560 | 565 | 580 | 590 | 610 | 630 |
CS Chain Stay Length [mm] | 460 | 460 | 460 | 460 | 460 | 460 |
HTA Head Tube Angle [°] | 70.5 | 70.5 | 71 | 71 | 71.5 | 71.5 |
STA Seat Tube Angle [°] | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
BD Bottom Bracket Drop [mm] | 70 | 70 | 70 | 70 | 70 | 70 |
HT Head Tube [mm] | 130 | 130 | 140 | 155 | 175 | 205 |
FL Fork Length [mm] | 468 | 468 | 468 | 468 | 468 | 468 |
R Reach [mm] | 382 | 387 | 393 | 399 | 406 | 418 |
S Stack [mm] | 620 | 620 | 631 | 645 | 667 | 695 |
WB Wheel Base [mm] | 1076 | 1081 | 1085 | 1096 | 1104 | 1125 |
SH Stand Over Height [mm] | 678 | 713 | 748 | 782 | 817 | 854 |
