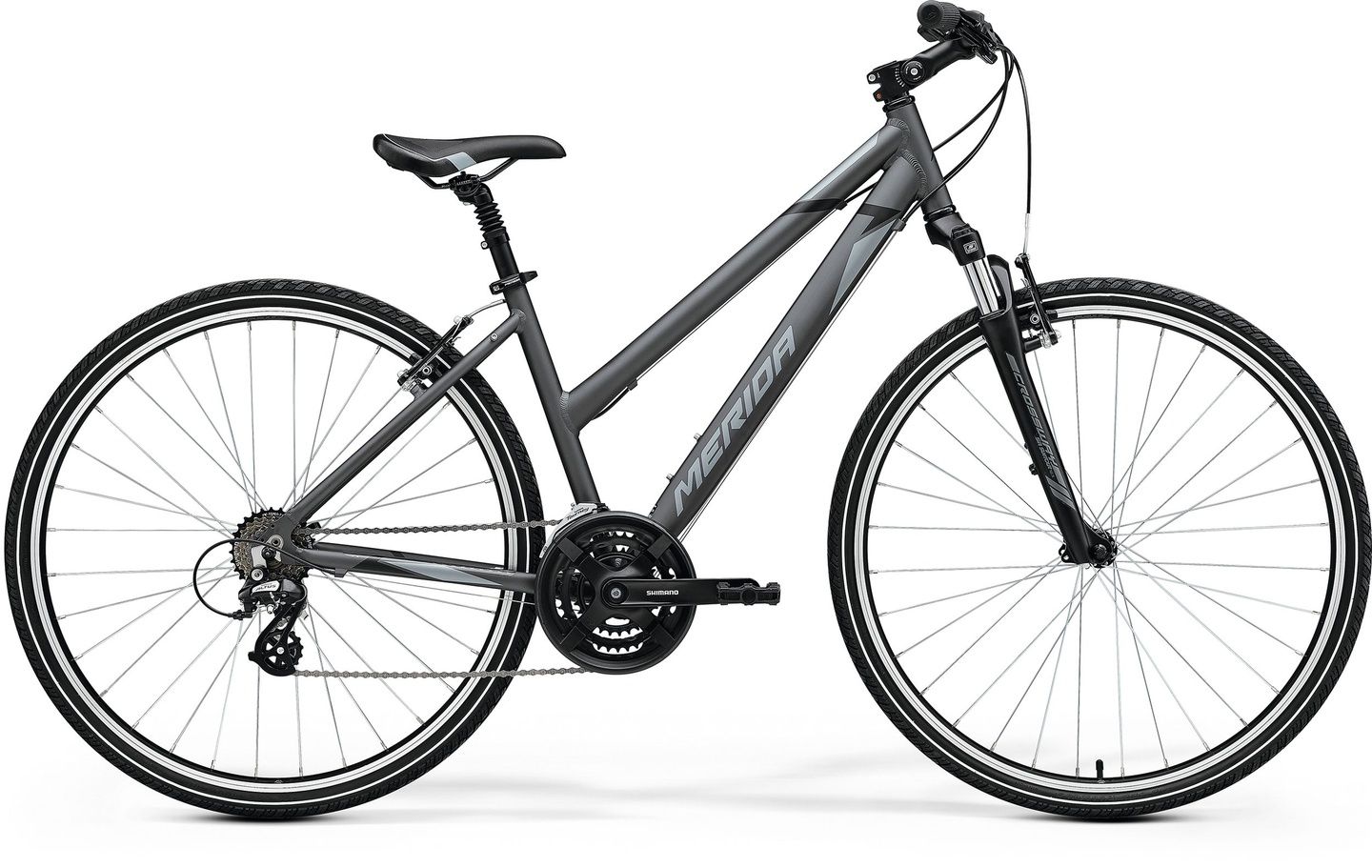

Entry level trekking/hybrid bike equipped with reliable V-brakes and suspension forks at an attractive price point. Your reliable companion around town and cross country.
You don't always have to spend big-ticket money to get a reliable lightweight aluminium hybrid that delivers when it comes to day-to-day usability, built-in weekend fun and all-round riding comfort. Our CROSSWAY 10-V comes with powerful and easy to service V-brakes, a broad gear range that gets you to your destination quickly as well as climbs steeper slopes with ease. A suspension fork and seat post provide extra comfort and riding safety.
The CROSSWAY family has been the MERIDA range's backbone since its introduction. They are used worldwide and are proven as a reliable, versatile and fun-packed way of getting around. Designed to provide a comfortable place to take in the surroundings thanks to an upright riding position and comfort focused equipment such as suspension fork, suspension seat posts and adjustable stems, they offer the perfect blend of comfort, enjoyment and all-round functionality. They are suitable for fitness training, commuting and leisurely rides through forests and on trails. Made from high-quality, lightweight aluminium with the ability to mount mudguards, racks and kickstands, the CROSSWAY range is the perfect choice for everyday riding. The fitted 700c wheels cover ground quickly, while the extra volume of the 40 mm wide tyres offers puncture protection, grip and comfort. All CROSSWAY models are available as a low step-through frame, making mounting and dismounting straightforward.
SPECIFICATIONS:
Component | Specification |
Frame | CROSSWAY DT; MAT aluminium; 700C Max. Wheelsize; 135x9 axle standard; BSA bottom bracket standard |
Fork | Suntour NEX; Coil; 63mm suspension travel |
Front Brake | Promax MTV-117A |
Rear Brake | Promax MTV-117A |
Front Rotor | 0 |
Rear Rotor | 0 |
Chain | KMC NS8 |
Chainwheel | Shimano TY301; 48-38-28 teeth |
Crank/Size | 170 mm-XXS/SM, 175 mm-ML/XXL |
BB Set | FSA TH-7420ST-W, Cartridge Bearing |
DERA-F (Front Derailleur) | Shimano FD-TY510 |
DERA-R (Rear Derailleur) | Shimano RD-M310 |
Freewheel | Shimano MF-TZ500; 14-28 teeth; 7 speed |
Pedal | VP VPE-891 |
Grip | MERIDA EC |
Handle Bar | MERIDA CC; MAT steel; 620mm width; 30mm rise |
Handle Bar Stem | MERIDA TK; MAT aluminium; 25.4mm diameter; adjustable; 100mm |
Head Set | FSA TH888 |
Spacer | 5mm*1 |
Front Hub | Joytech JY-751DSE; 100x9mm width front hub; 32 spoke holes |
Rear Hub | Joytech JY-752DSE; 135x9mm width rear hub; 32 spoke holes |
Rim | MERIDA CC; 17mm inner width; MAT aluminium |
Saddle | MERIDA Cross Sport |
Seat Clamp | MERIDA COMP QR |
Seat Post | MERIDA TK; 27.2mm diameter; 13mm setback; 40mm seatpost suspension travel |
Front Shifter | Shimano ST-EF500 |
Rear Shifter | Shimano ST-EF500 |
Spoke | Steel UCP |
Inner Tube | 700*35/43 A.V |
Tire (F&R) | MERIDA K1171; 700x40C; wire |
Hardware | Dacromet steel |
Bell | YWS-Alloy |
Importer | Extreme Adventure Sports FL 1B 410/2 Green Terrace Lane No 5, South Main Road, Koregaon Park, Pune - 411001 Maharashtra India Web Site: www.exadsports.com |
Manufacturer Name & Address | Merida Industry Co., Ltd 338Dah Tong Road Sec.1, Yuanlinchanghua Taiwan |
Packer Name & Address | Extreme Adventure Sports FL 1B 410/2 Green Terrace Lane No 5, South Main Road, Koregaon Park, Pune - 411001 Maharashtra India Web Site: www.exadsports.com |
Country of Origin | Taiwan |
SIZE CHART
FRAME SIZE | Height (CM) |
XS | 150-159 |
S/M | 155-167 |
M/L | 168-183 |
L | 175-189 |
XL | 184-195 |
XXL | 190-200 |
GEOMETRY
Frame Size | XXS | XS | S | M | L | XL |
Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" |
ST Seat Tube [mm] | 390 | 430 | 470 | 510 | 550 | 590 |
TT Top Tube [mm] | 560 | 565 | 580 | 590 | 610 | 630 |
CS Chain Stay Length [mm] | 460 | 460 | 460 | 460 | 460 | 460 |
HTA Head Tube Angle [°] | 70.5 | 70.5 | 71 | 71 | 71.5 | 71.5 |
STA Seat Tube Angle [°] | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
BD Bottom Bracket Drop [mm] | 70 | 70 | 70 | 70 | 70 | 70 |
HT Head Tube [mm] | 130 | 130 | 140 | 155 | 175 | 205 |
FL Fork Length [mm] | 468 | 468 | 468 | 468 | 468 | 468 |
R Reach [mm] | 382 | 387 | 393 | 399 | 406 | 418 |
S Stack [mm] | 620 | 620 | 631 | 645 | 667 | 695 |
WB Wheel Base [mm] | 1076 | 1081 | 1085 | 1096 | 1104 | 1125 |
SH Stand Over Height [mm] | 678 | 713 | 748 | 782 | 817 | 854 |
