Packing an impressive output of 1600 lumens in its dual LED set-up, the RAY 1600B sees you safely through every situation – from city streets to challenging terrain.
With its two high-power LEDs, the RAY 1600B delivers an impressive output of up to 1600 lumens, making it an exceptional all-rounder that seamlessly transitions from urban streets to challenging trails.
MODE | FLOODLIGHT | HYBRID | FLASH | |||||
---|---|---|---|---|---|---|---|---|
LOW | MEDIUM | HIGH | LOW | MEDIUM | HIGH | DAY FLASH | NIGHT FLASH | |
LUMENS | 200LM | 400LM | 800LM | 400LM | 800LM | 1600LM | 0/1600LM | 400/1600LM |
h:min | 20:00 | 08:30 | 04:00 | 10:30 | 04:30 | 02:12 | 11:00 | 06:00 |
A new double lens casts an up-close flood beam in conjunction with a far-reaching spot beam, ideal for both road and trail use.

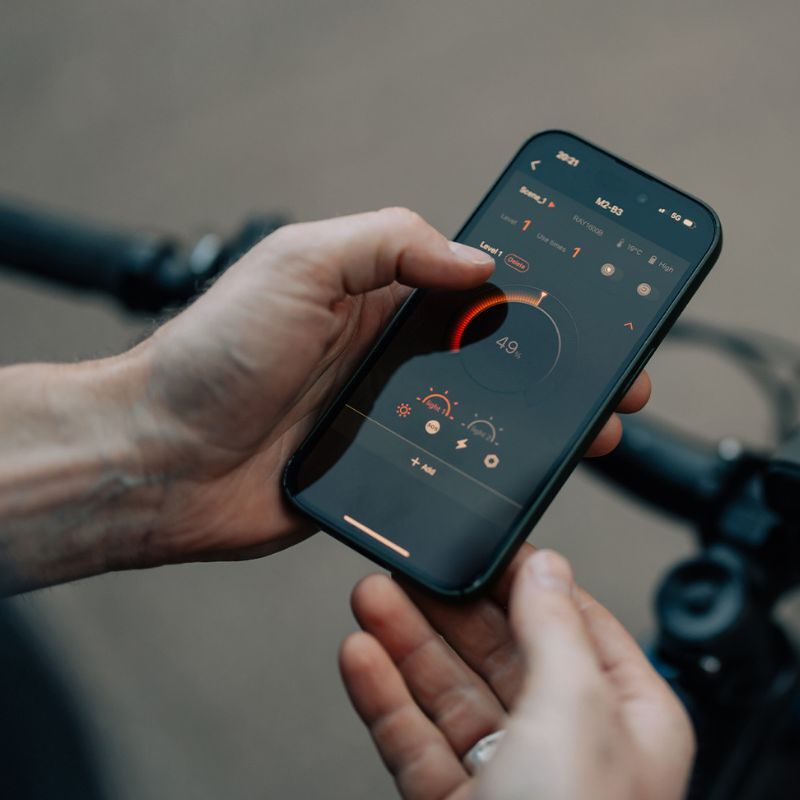

Add new modes and adjust brightness preferences through Magicshine App, or activate the light/vibration sensor to be more than nimble to tackle long rides.
With the built-in smart sensor, the light will automatically switch to a brighter beam when entering a tunnel, or switch to sleep mode in a pit stop to conserve power.

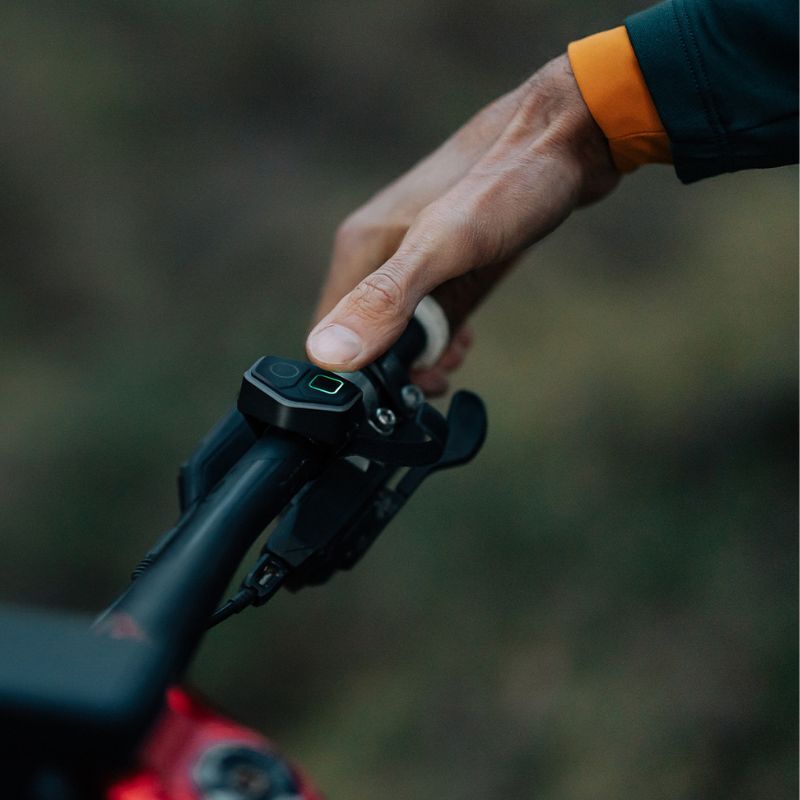

A wireless remote extends the mode switch function to the handlebars, letting you focus solely on the trail ahead. Instantly skip to full output mode with the press of a button.
(For first-time usage, please remove the plastic piece from the button battery.)
Powered by a powerful 5200mAh battery, the RAY 1600B supports a dependable runtime of up to 12 hours. And say goodbye to battery anxiety and prolong your battery with the USB-C port, or juice up your bike computer, smartphone, and other devices on the go.
No more tedious operation! The up-down button on the light unit makes it a snap for you to get the right illumination. Also, precise indicators on the light unit and remote show you the remaining battery capacity. Mode memory function lets you quickly plunge into your next journey.
RAY1600B can also be used as a helmet light which provides extra light sources. This can make you ride safer during the night.
With an IPX6 waterproof rating, the RAY 1600B is flexible and durable enough to penetrate even heavy rain to illuminate your path.
Specifications | Parameter |
---|---|
Max Lumen | 1600 LM |
Light Source | SST-40-WCS-F50-P2/N5 *2 |
Max Throw | 140 m |
Runtime | 12 hrs |
Suitable Handlebar | 25.4mm, 28.6mm, 31.8mm, aero bar |
Brightness Sensor | Support |
Vibration Sensor | Support |
Remote Option | Support |
Beam Intensity | 5000 CD |
Waterproof Rate | IPX6 |
Battery Capacity | 3.6V 5200mAh |
Charger | USB-C |
Charging Time | 3.5 hours (5V 2A) |
Weight | 190 g / 6.7 oz |
Dimensions | 96*41*27 mm / 3.78*1.61*1.06 in |
Material | Aluminum alloy |
Mounting System | Garmin mount |

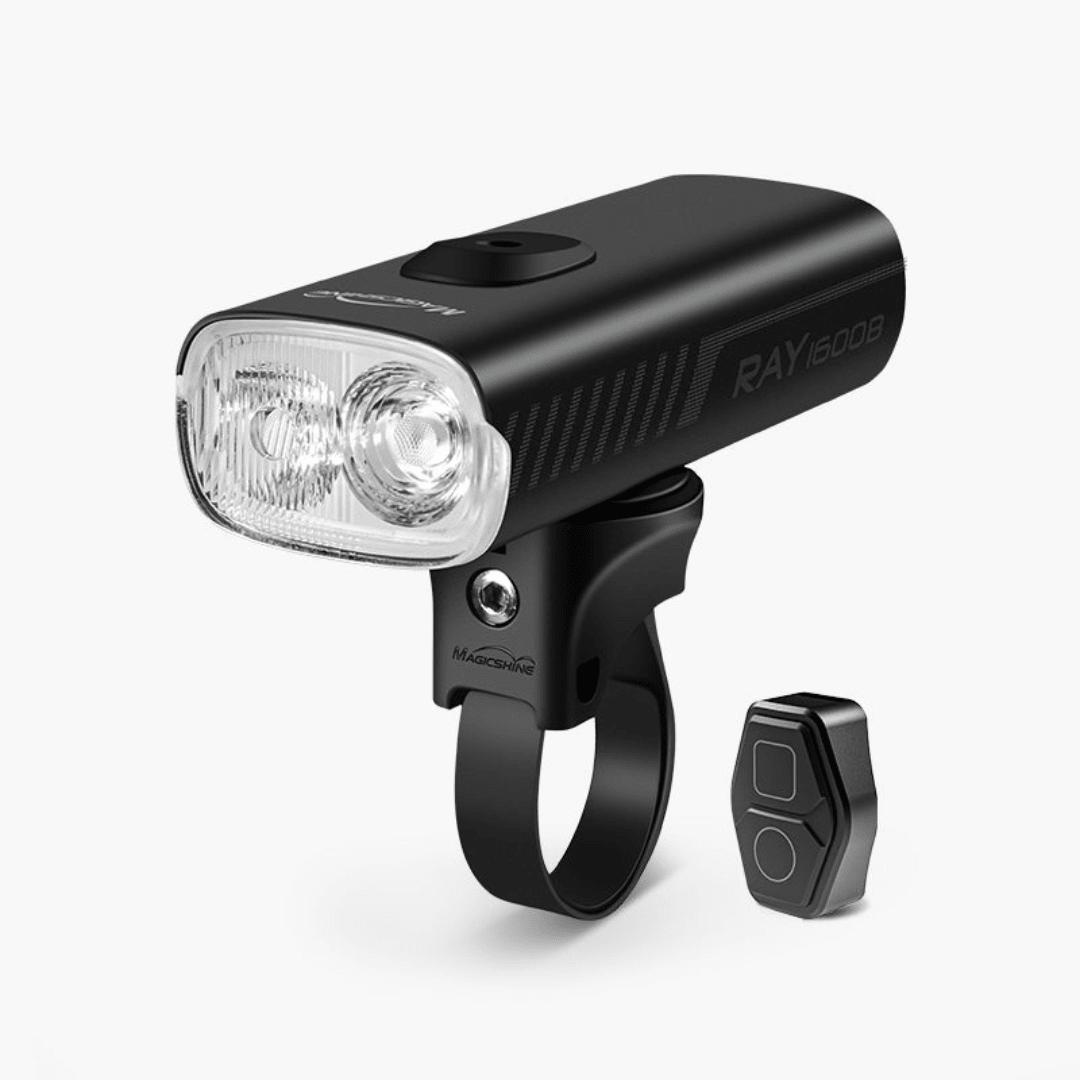

RAY 1600B *1
Handlebar mount *1
GoPro adapter *1
MJ-6508 remote control (incl. strap) *1
Compatible straps *4
3mm hex key *1
USB-C cable *1
User manual *1 (Click here to download)
