Magene T500 Smart Bike Trainer

Magene T500 Smart Bike Trainer - Redefining the Summit of Indoor Training!

Magene T500 Smart Trainer is designed for professional cyclists, featuring Magene’s second-generation self-developed permanent magnet synchronous motor. With a peak torque of 88 Nm, it delivers unparalleled resistance and precision, providing riders with an immersive outdoor-like riding experience from the comfort of their home.

With a maximum power output of 2200W, the T500 smart trainer can handle the extreme sprints and short-distance burst tests of professional cyclists. Even if non-professional users can not reach this level, the high power ceiling extends the lifespan of your equipment, while also leaving room for future performance improvements.

T500 smart trainer supports up to 20% gradient simulation, far exceeding HC-level climbs! It supports high-intensity climbing training, helping you break through fitness plateaus while replicating the steep gradients found in actual races.

No need to plug in, no loss of performance. T500 smart trainer equipped with advanced self-power technology, truly achieving cordless cycling. Whether in your living room, balcony, backyard, or even at the race track for warm-ups, you can break free from power cable limitations and start your training anytime, anywhere.

Features:

• With a maximum power output of 2200W, the T500 smart trainer can handle the extreme sprints and short-distance burst tests of professional cyclists.
• Supports up to 20% gradient simulation
• Features a cooling system that combines passive and active cooling, significantly enhancing heat dissipation and extending the device's lifespan
• Every Pedal Stroke Counts - With ±1% power accuracy, every training session is precise and reliable.
• Simulates a realistic downhill experience, providing a moment of relaxation after training.
• Equipped with advanced self-power technology, truly achieving cordless cycling.
• Feel the Road Without Plugging In: By optimizing motor control, the T500 smart trainer can simulate road feel in self-powered mode. Enjoy 9 immersive road sensations anytime, anywhere.(Road feel simulation requires the Onelap APP)
• Equipped with three-channel Bluetooth, the T500 smart trainer lets you connect up to three devices simultaneously, such as your smartphone, tablet, and other devices.
• Serves as a Bluetooth bridge for heart rate monitors. If your monitor supports only ANT+ and can't connect to your smartphone or tablet, the trainer can link these monitors to Bluetooth-enabled devices
• Compatible with mainstream bike computers and indoor cycling software, such as Onelap, Zwift, TrainerRoad, ROUVY, Kinomap, Wahoo SYSTM X, BKOOL, MY WHOOSH.
• Jump On & Go, No Calibration Required: Ready to Ride Instantly with Zero Calibration Hassle.

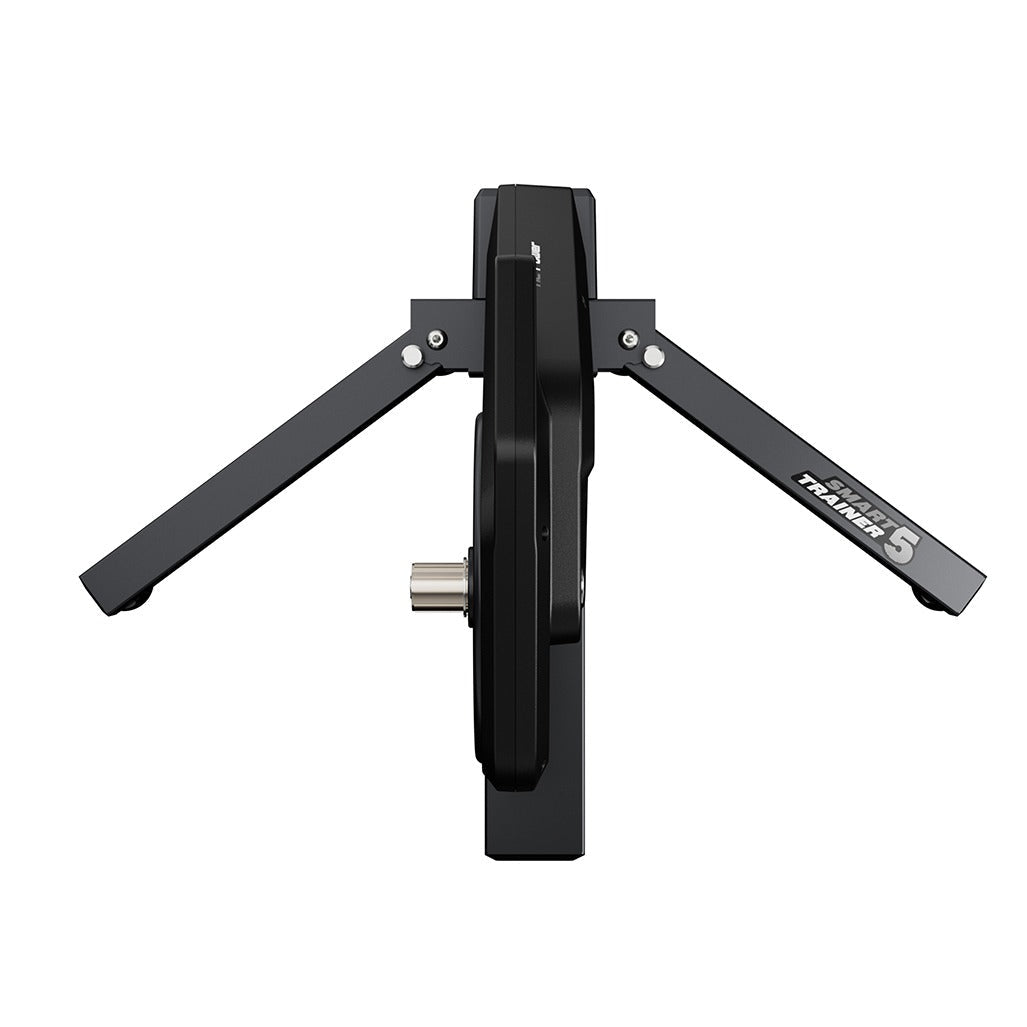

• Easy To Carry: Foldable legs and a large handle make it easy to move around.
• 6 months Onelap subscription for free
• Warranty: 1 year

Specifications:

• Model - T500 Smart Trainer
• Maximum Power - 2200W
• Simulated Maximum Gradient - 20%
• Power Accuracy - ±1%
• Wireless Protocol - BLE FTMS / ANT+ FE-C (can be connected by three Bluetooth devices)
• Output Data - Power, Cadence, Speed
• Heart Rate Belt Bridge - Support
• Road Simulation - Support (OneLap)
• Downhill Simulation - Support
• Transmission System - Permanent magnet synchronous motor
• Moment of Inertia - Dynamic inertia
• Expanded Size - 727*542*515mm
• Folded Size - 193*542*515mm
• Noise Level - Less than 56db (@1.5m & 25km/h)
• Power Supply - 100V~240V；Output：48V 1.35A
• Compatible Wheel - 26''~29'' MTB/700C RD
• Compatible Frame - 130 / 135mm quick release, 12*142mm / 12*148mm thru-axle
• Compatible Cassette - Shimano/Sram 8 ~ 11 speed cassette, Shimano road 12 speed cassette, Sram XDR 12-speed cassette (XDR freehub sold separately)
• Trainer Status Indicator Light - Power On: Red and blue lights flash alternately twice //Standby: Blue light flashes //Riding: Blue light stays on
• Connection Indicator Light (Bluetooth/ANT+) - Not Connected: Blue light flashes //Connected: Blue light stays on
• Weight - 16.5kg
• Handle - Yes

In the box:

• T500 Smart Trainer
• Power Adapter + Power Cable
• Quick Release Skewer
• Freehub body spacer
• 130/135 Quick Release Adapter
• HG Quick Release Cap (Installed)
• HG Thru-axle Cap
• 12*142/148 Thru-axle Adapterr
• Disc Brake Pad Spacer
• Front Wheel Riser
• 4mm bike trainer mat
• Standard 11-speed cassette
• 5mm Hex Wrench
• 17mm open-end wrench
• User Manual
• Note: XDR freehub, XDR thru-axle cap need to purchase separately
