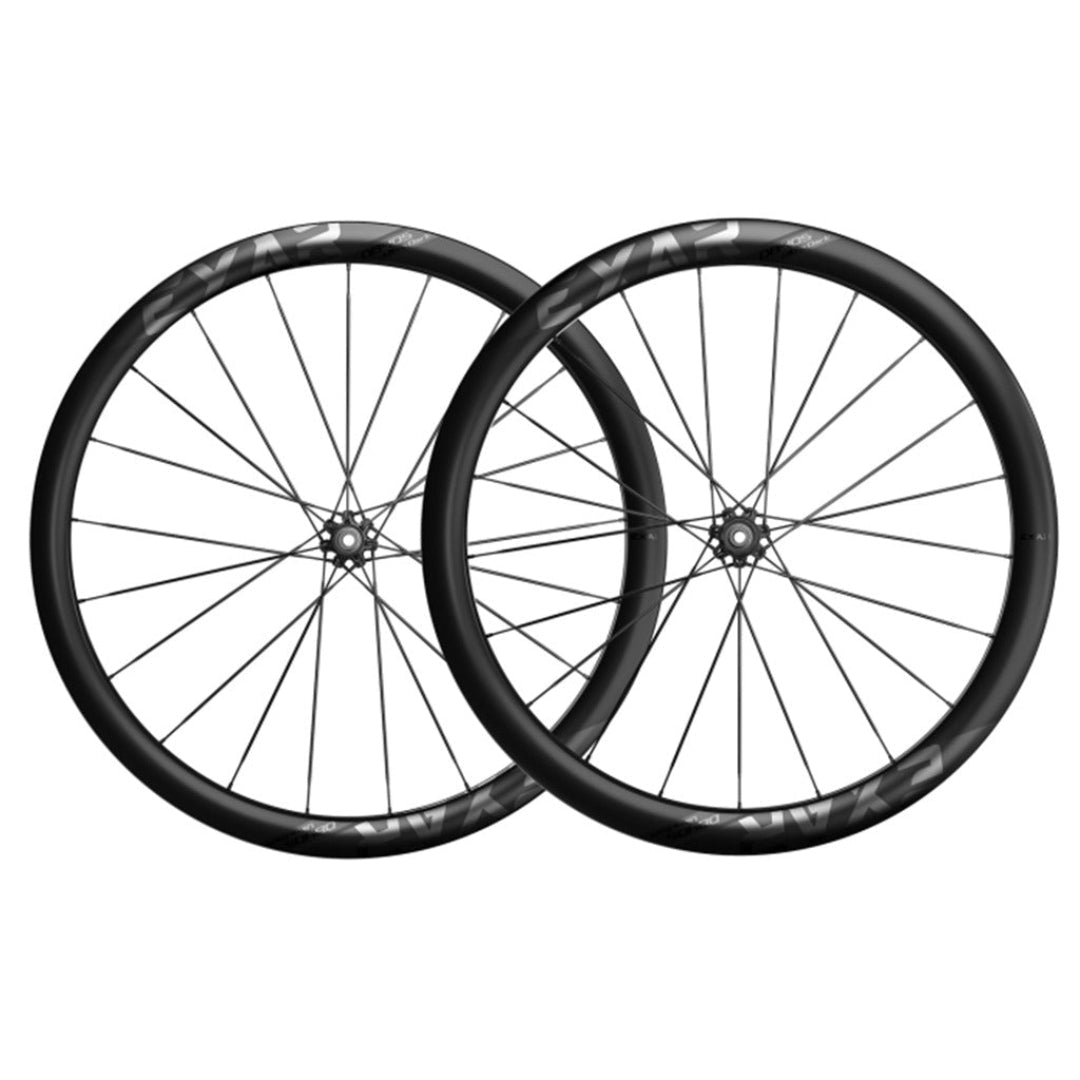

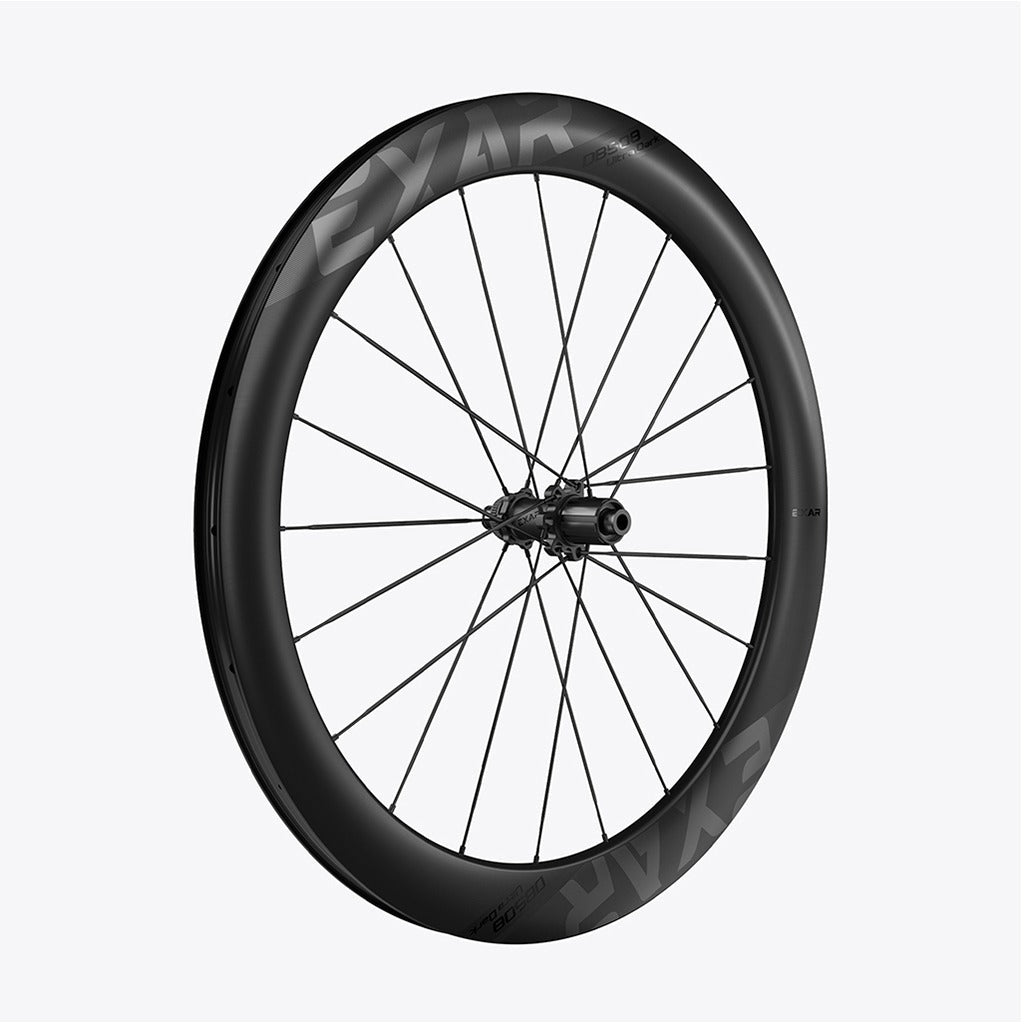

Magene EXAR UltraDark DB508 Carbon Wheelset-50/58mm (Disc Brake)

Born for disc brake, the DB405 UltraDark and DB508 UltraDark have first-class performance, with lower front and higher rear rim height design. The new dark black design goes with versatile frames. Upgrade of hub and spokes even provides faster and more stable response, making the wheelset an optimal choice for performance pursuers.

Features:

Classy Night Black Coating
The new night black paint coating paired with dark logos emits an air of sophistication and power, making it the ultimate choice for riders who seek both style and performance. Perfectly complementing any bicycle frame, it enhances the overall aesthetic of your ride, ensuring you feel the thrill of speed at every moment.

Lighter, Then Faster
EXAR UltraDark carbon fiber wheelset applies HI-MOD carbon fiber. The excellent materials allow great reduction on weight while retaining outstanding stiffness. By reducing drive weight, you will get a faster response while climbing or accelerating.

Lower Front And Higher Rear Wheels
The wheelset combines lower front wheel and higher rear wheel, so as to support riders with better stability. It improves pedaling efficiency by providing excellent aerodynamic performance and crosswind resistance. While the rear wheel maintain high inertia, the front wheel still has excellent controllability. When turning around or in emergency, you can control the bike easily.

Flat Engagement Ratchet, Ensure Stable Performance
Adopt flat ratchet, which has a more stable performance when cruising at all speed. It’s highly free that you could replace the original ratchet with other DT ratchet of different tooth amount. It will response faster when replacing the ratchet with more teeth.

Full Carbon Fiber Spokes, Contribute Ultra-Stiffness
EXAR UltraDark carbon fiber wheelset features VONOA’s carbon fiber spokes. Each spoke weighs only 2.8g, 30% lighter than top-level steel spokes. Carbon fiber spokes have higher tensile strength and can withstand 30% more tensile force. Lower strength loss of transmission brings higher driving efficiency.

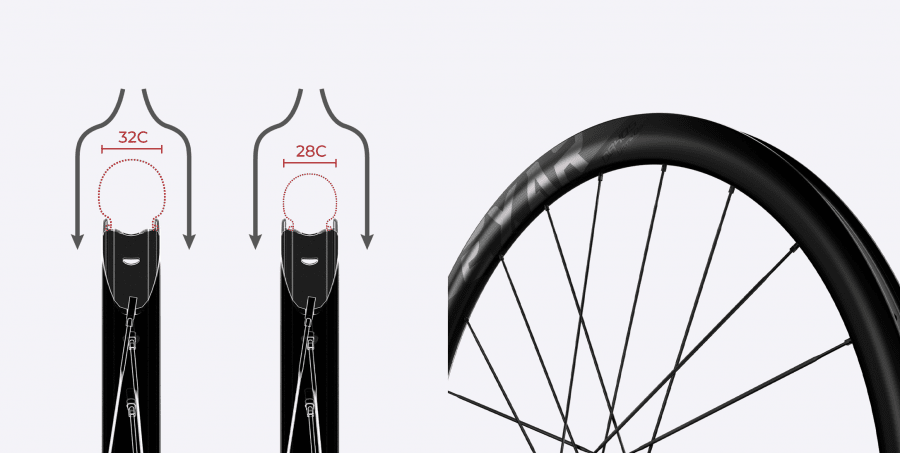

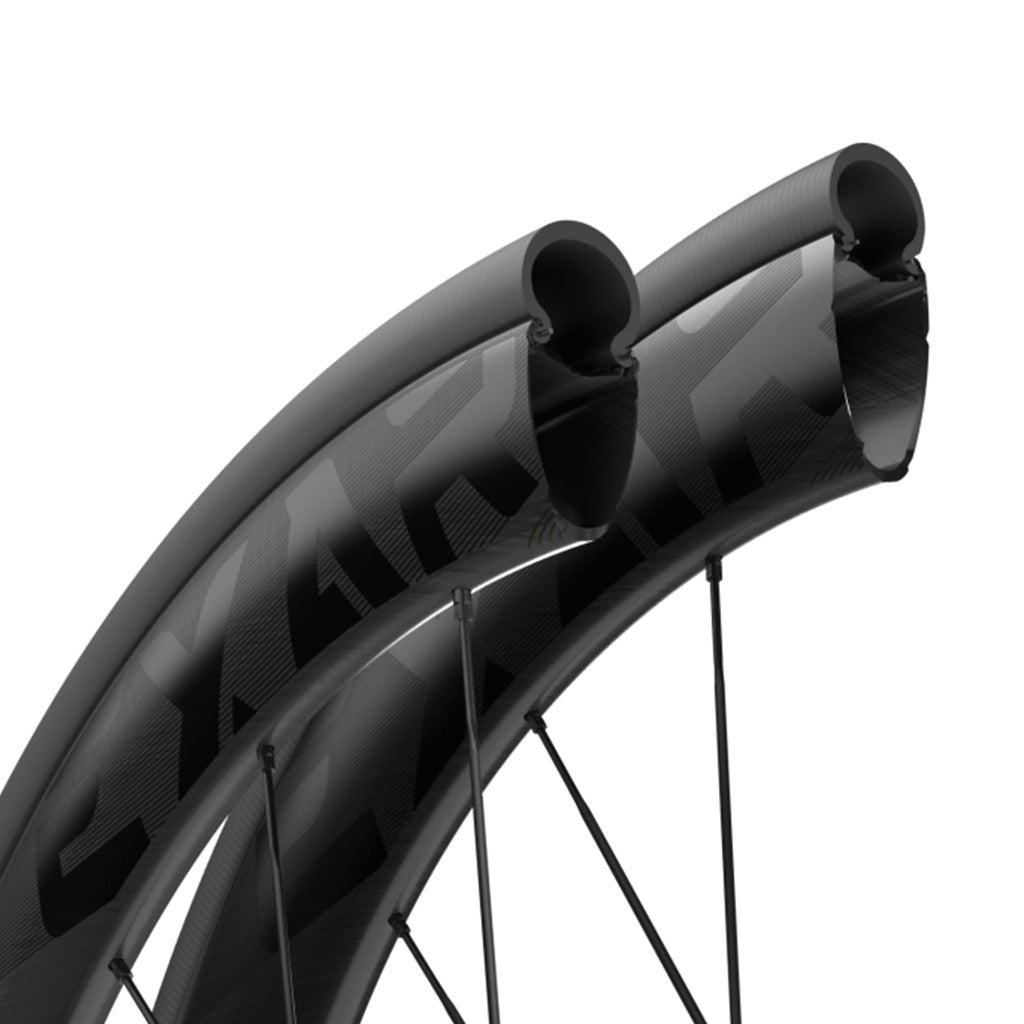

30mm Wide Fat Rim, Aerodynamic And Comfortable
The wheelset adopts 30mm external rim width and 23mm internal rim width, which designs for disc brake only. After installing the 28-32c tire, the contact surface between tire and rim is flat. As a result, It creates a flatter aerodynamic surface and enhances cycling comfort. It ensures optimal aerodynamic performance in complex wind conditions, and you can enjoy cycling more comfortably.

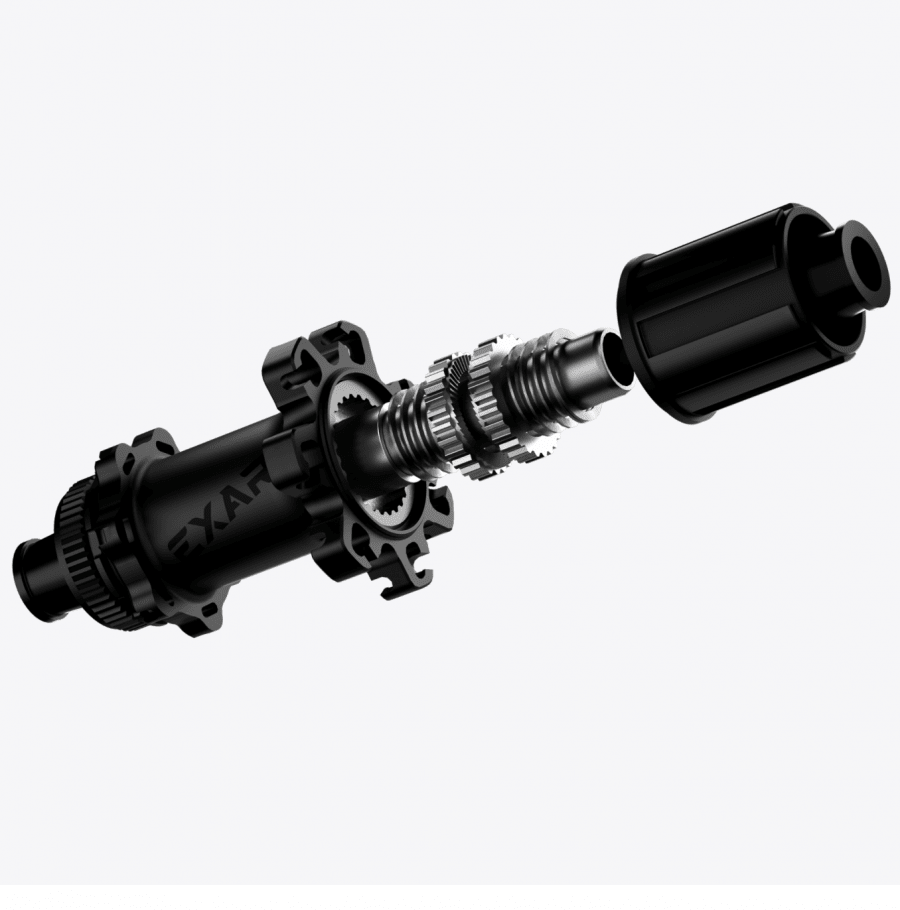

Elaborate Hub Design

Improve flange diameter: The flange diameter has been calculated scientifically in terms of the stiffness of carbon fiber spokes. We reduce the amount of stress concentration point where spoke contacts with hub, thus improving driving stiffness and extending endurance.

Smooth edging on bearing surface: The contact surface of bearing and body is processed with smooth edges to reduce bearing losses, creating precise synergy.

2:1 balanced spoke pattern: The wheelset applies 2:1 balanced lacing pattern, which distributes tension perfectly. The spoke tension of rear-wheel drive side is 130kgf±10%, and non drive side is 110kgf±10%. The balance performance is improved by 100% compared with 1:1 lacing pattern.

More Powerful Designs
The dynamic balance is exclusively designed for TPU inner tube, you will enjoy a stable cycling at high speed. The wheelset is compatible with tubeless tire and clincher tire. It comes tubeless rim tape and rim plug. While installing clincher tire, you could use rim plugs to reduce weight.

Specifications:

• Product Name: UltraDark Series 2024
• Model: DB508 UltraDark
• Brake: Disc Brake
• Rim Height: Front wheel 50mm, Rear wheel 58mm
• Weight: 1390g (Include ±3% tolerance on weight Without rim tape and valve)
• External Rim Width: 30mm
• Internal Rim Width: 23mm
• Rim Material: HI-MOD Carbon Fiber
• Spoke: HI-MOD Carbon Fiber
• Front Wheel Spoke Tension: 110kgf±10%
• Rear Wheel Spoke Tension: Drive side 130kgf±10%, Non-drive side 110kgf±10%
• Front Wheel Spoke Lacing: 21H 2:1, brake side×2, non-brake side radial lacing
• Rear Wheel Spoke Lacing: 21H, 2:1, drive side×2, brake side radial lacing
• Ratchet: 36T（Compatible with DT system. Replaceable ratchet with different tooth amount）
• Frame Spacing: 100/142mm thru-axle
• Freehub Standard: Shimano 11-speed (Campagnolo N3W and Sram XDR freehub are available separately)
• Compatible Cassette: Shimano 8-12 speed
• Compatible Tire Type: Clincher tire, tubeless tire
• Maximum Tire Pressure: 110psi for clincher tire, 100psi for tubeless tire
• Compatible Tire Width: Compatible with 25c tire and above, Suggested tire width is 28c-32c
• Warranty: 2 years

In the box:

• Carbon fiber front wheel x1
• Carbon fiber rear wheel x1
• Tubeless rim tape x2
• Rim plug x50
• tubeless tire valve x2
• User manual x1
