[tab name="DESCRIPTION"]

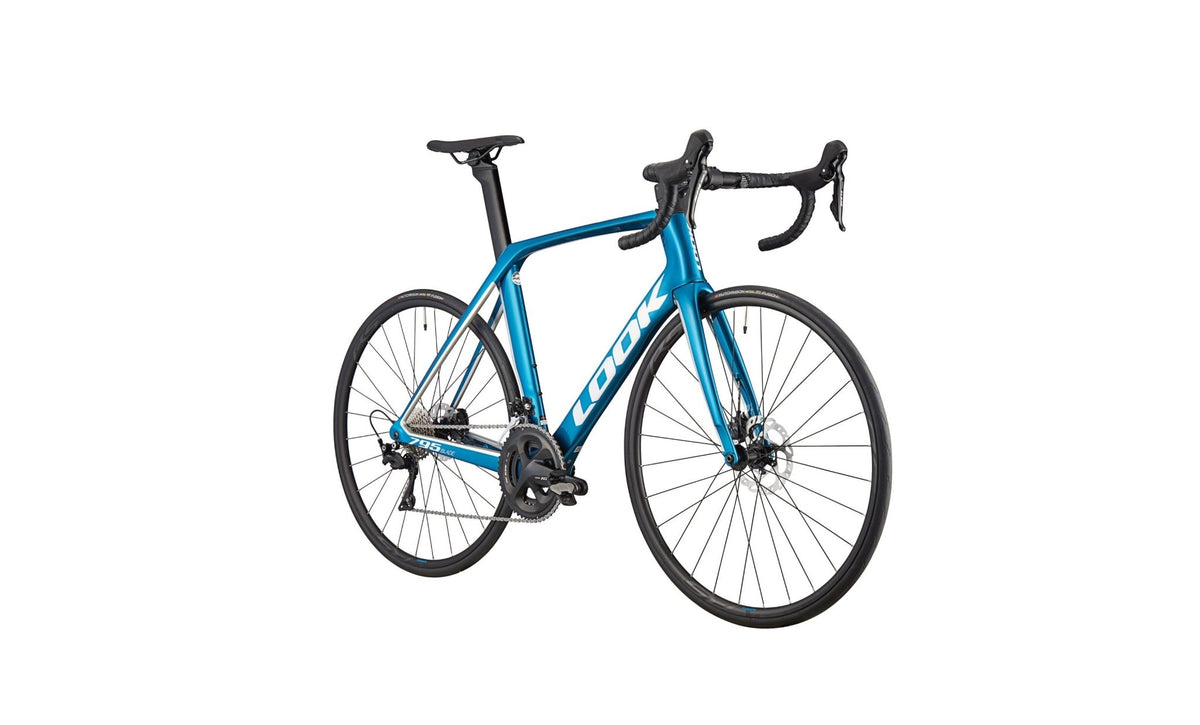

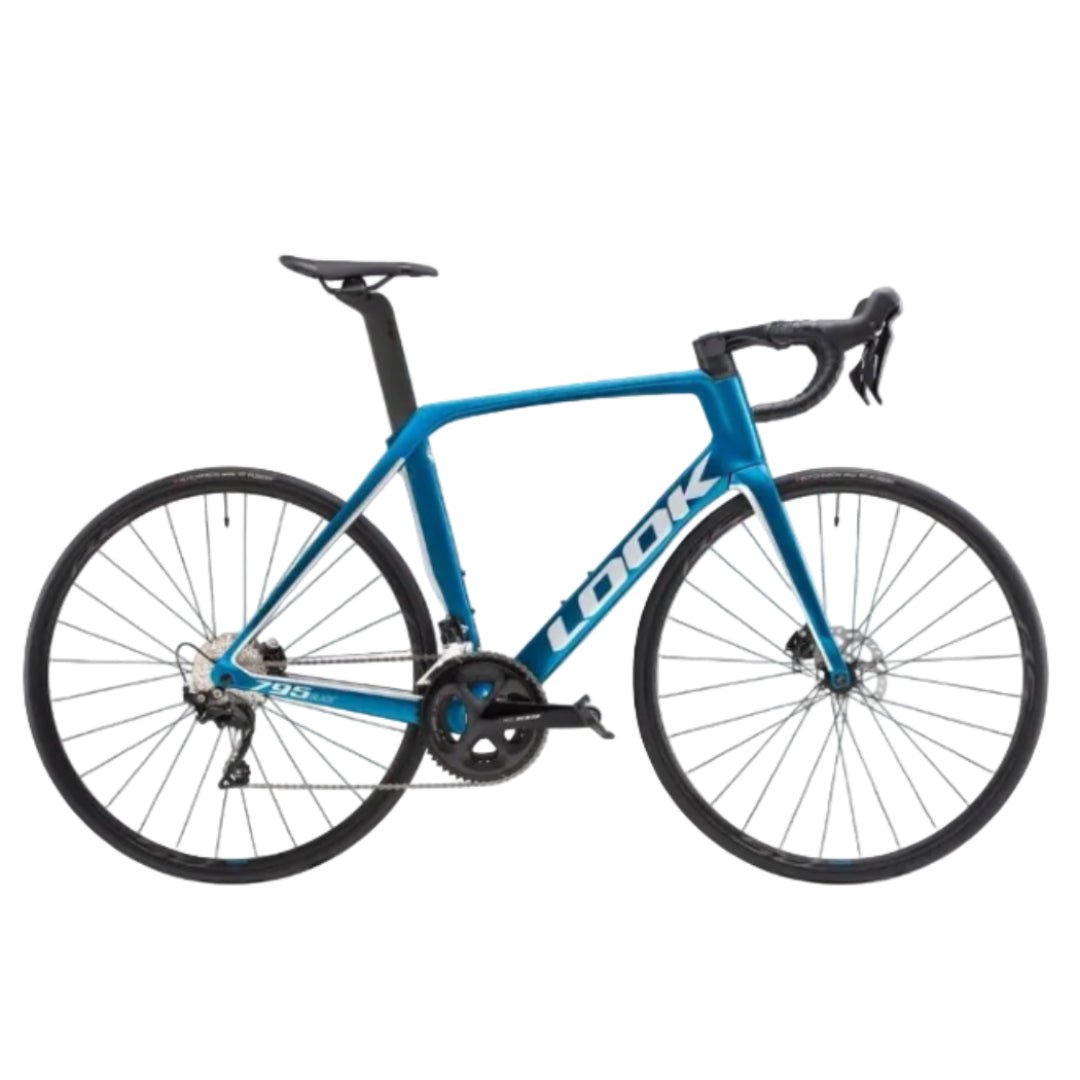

You may lose yourself in the brilliant blue of the 795 BLADE Disc Metallic Blue Silver Glossy, yet the wheels of this high performance carbon bike roll unapologetically on solid ground. An impressively-efficient aero profile is combined with the ultra-effective 3S Wave technology in the seatstays. One thing is for sure: you will never lose your way on this bike.
[tab name="SPECIFICATIONS"]
Frame | LOOK 795 BLADE disc |
---|---|
Seatpost | LOOK AEROPOST 2. carbon 400 mm |
Saddle | San Marco Monza full sit start |
Stem | LOOK ADS (XS 90 mm / S 100 mm / M – L 110 mm / XL 120 mm) |
Handlebar | LOOK LS2 ALLOY (XS – S 40 cm / M-L 42 cm / XL 44 cm) |
Wheels | Shimano WH RS 171 |
---|---|
Tires | Hutchinson Epsilon fold 700x25 mm reinforced (bike delivered with inner tube)TRANSMISSION & BRAKES |
Crankset | Shimano 105 R 7000 (XS-S 170 mm/ M-L 172,5 mm/ XL 175mm) |
Chainrings | Shimano 105 R 7000 52x36 t |
Chain | Shimano HG 601 |
Bottom bracket | BB 386 / Token ninja TF 38624 |
Cassette | Shimano 105 R 7000 11x32 t |
Shifters | Shimano 105 |
Derailleurs | Shimano 105 R 7000 |
Rotors | Shimano centerlock RT 800 Front: 160 mm / Rear: 140 mm |
Seatpost | LOOK AEROPOST 2. carbon 400 mm |
Saddle | San Marco Monza full sit start |
Stem | LOOK ADS (XS 90 mm / S 100 mm / M-L 110 mm / XL 120 mm) |
Handlebar | LOOK LS2 Alloy (XS-S 40 cm / M-L 42 cm / XL 44 cm) |
Please note this is an approximate size guide. Please contact your dealer for more precise sizing information.
Size bike | Cyclist's height (in cms) | Cyclist's height (in inch) |
XS | < 166 | < 65 |
S | 164 - 173 | 65 - 68 |
M | 171 - 180 | 67 - 71 |
L | 178 - 187 | 70 - 74 |
XL | > 185 | > 73 |
Wheels diameter : 686 mm / 27 inch
XS | S | M | L | XL | |
---|---|---|---|---|---|
Stack | 505 | 529 | 553 | 578 | 601 |
Reach | 367 | 377 | 386 | 396 | 406 |
I - Head tube (°) | 71,8 | 71,8 | 73 | 73 | 73 |
A - Seat tube | 445 | 469.7 | 494.4 | 519.2 | 544 |
B - Top Tube horizontal | 494.1 | 510.1 | 526.2 | 545 | 558.3 |
C - Front Center | 567.7 | 585.5 | 584.3 | 601.5 | 618.8 |
D - Trail | 60.1 | 60.1 | 59.9 | 59.9 | 59.9 |
F - Fork offset | 50 | 50 | 43 | 43 | 43 |
G - Chainstays | 415 | 415 | 415 | 415 | 415 |
K - Head tube | 111.9 | 137.1 | 155.7 | 180.8 | 205.9 |
L - Fork | 368 | 368 | 368 | 368 | 368 |
HAV | 65 | 65 | 65 | 65 | 65 |
J - Seat tube (°) | 75,8 | 75,8 | 75,8 | 75,8 | 75,8 |
