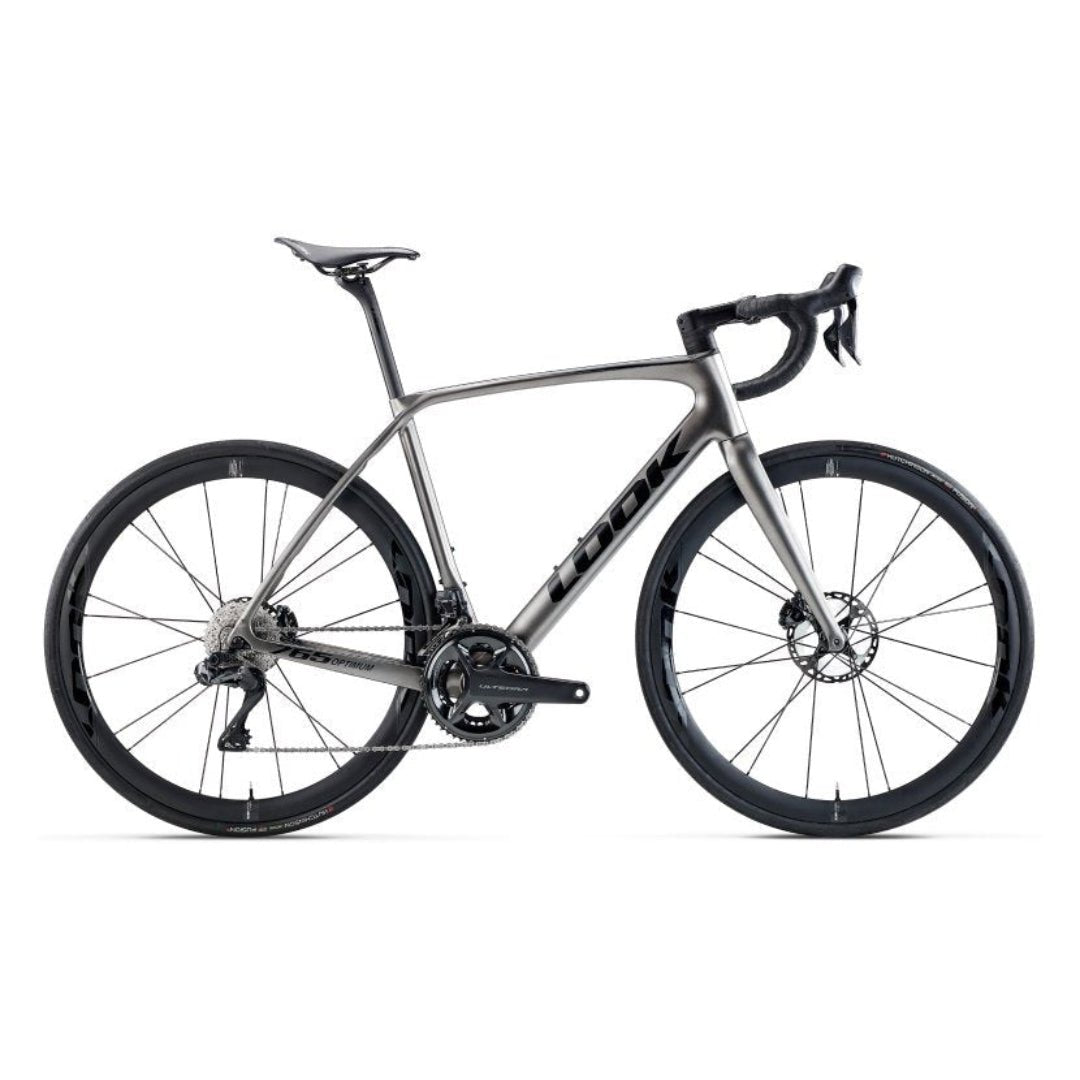

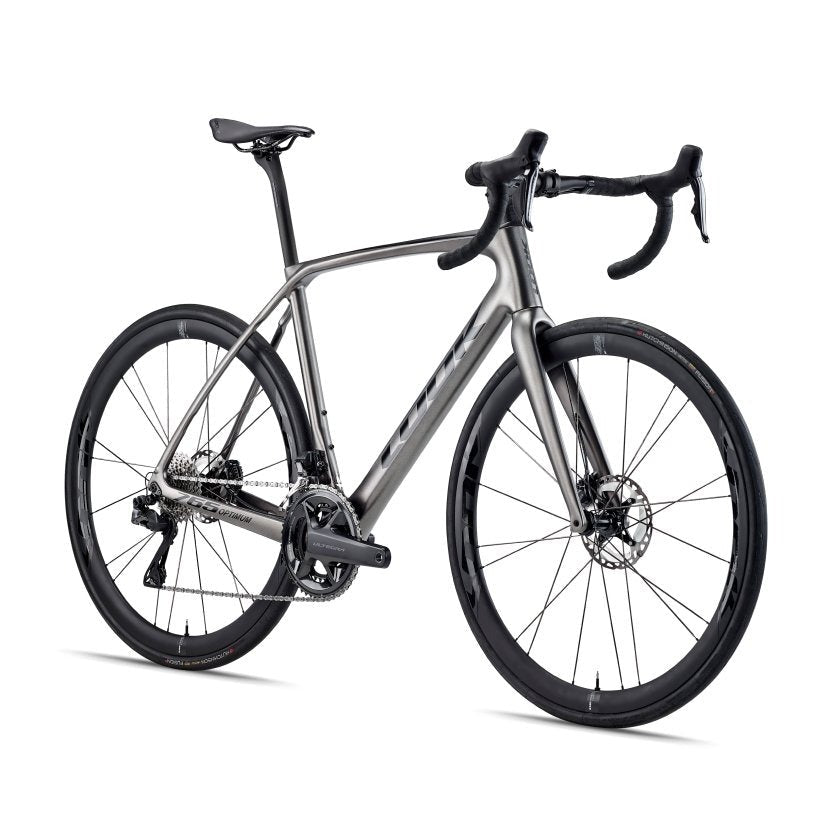

Achieving the perfect balance between performance and comfort, the new 765 OPTIMUM is a light and fast endurance-oriented bike. Hyper versatile, it offers a perfect balance of performance and comfort. A distinctive, multi-talented road bike, designed for ultra-distance racing as well as for your everyday rides.
| Seatpost |
LOOK LS1 Carbon Super Light 27.2 mm 350 mm
|
| Saddle |
LOOK by SAN MARCO Short Fit Dynamic Open Fit
|
| Handlebar |
LOOK Handlebar LS3 Alloy (XS 38 –S 40 / M – L 42 / XL 44)
|
| Stem |
LOOK LS3 Alloy (XS 80/ S 90 / M 100 / L 110 / XL 120)
|
| Wheels |
LOOK R 38 D Carbon Tubeless
|
| Tires |
HUTCHINSON FUSION 5 Tubeless Ready 700 X 30
|
| Chain | SHIMANO M8100 12 Speed |
| Bottom bracket | BB T47 V24 85.5 / Token |
| Cassette | SHIMANO ULTEGRA R8100 11 x 34 |
| Shifters | SHIMANO ULTEGRA DI2 R8170 |
| Derailleurs | SHIMANO ULTEGRA DI2 R8150 |
| Rotors | SHIMANO RT MT800 F: 160 mm R : 140 mm |
| Sizes | XS - S - M - L - XL |
|---|

| 765 Optimum | |||||
| XS | S | M | L | XL | |
| Stack | 534 | 558 | 582 | 606 | 630 |
| Reach | 359 | 369 | 379 | 389 | 399 |
| I - Head tube (°) | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 |
| J - Seat tube (°) | 74 | 74 | 74 | 74 | 74 |
| A - Seat tube | 470 | 490 | 510 | 535 | 560 |
| B - Top Tube horizontal | 511.8 | 528.7 | 545.5 | 562.4 | 579.3 |
| C - Front Center | 576 | 594 | 613 | 630 | 650 |
| D - Trail | 67 | 67 | 67 | 67 | 67 |
| F - Déport de fourche | 50 | 50 | 50 | 50 | 50 |
| G - Chainstays | 415 | 415 | 415 | 415 | 415 |
| K2 - Head tube | 117 | 142 | 170 | 196 | 224 |
| L - Fork | 385.5 | 385.5 | 385.5 | 385.5 | 385.5 |
| HAV | 76 | 76 | 73.5 | 73.5 | 71 |
| Standover | 742 | 766 | 790 | 814 | 838 |
| Bike sizes | Cyclist sizes |
|---|---|
| XS | < 166 |
| S | 164 - 173 |
| M | 171 - 180 |
| L | 178 - 187 |
| XL | > 185 |
