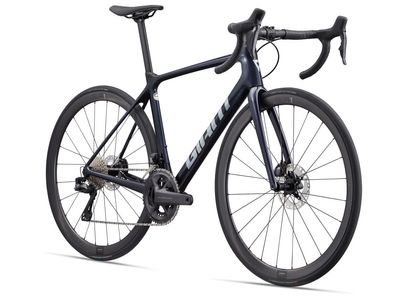

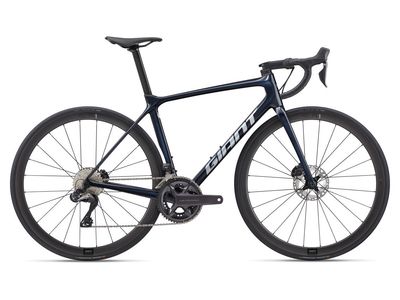

Climb, corner and descend with greater speed, more control and maximum efficiency. From the mountains to the flats, in all conditions, this lightweight composite road racer takes you to the next level.
Class-leading efficiency
Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control
Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mount brakes and thru-axles boost stiffness and improve overall handling, while added frame and fork clearance al
Category | Details |
Sizes | S, M |
Frame Material | Advanced-Grade Composite, disc |
Tire Size | 700C |
Gear | 24 |
Stem | Giant Contact SL XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm |
Front Derailleur | Shimano Ultegra Di2 FD-R8150 |
Seatpost | Giant Variant, composite, -5/+15mm offset |
Rear Derailleur | Shimano Ultegra Di2 RD-R8150 |
Shock | N/A |
Saddle | Giant Fleet SL |
Brakes | Shimano Ultegra Di2 hydraulic, Shimano RT-MT800 rotors [F]160mm, [R]140mm |
Cassette | Shimano Ultegra, 12-speed, 11x34 |
Spoke | Sapim CX-Ray |
Rims | Giant SLR 1 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm |
Colours | Cold Night |
Tire | CADEX Race, tubeless, 700x25c (26.5mm), folding |
Tire Size - Measuring Unit | MM |

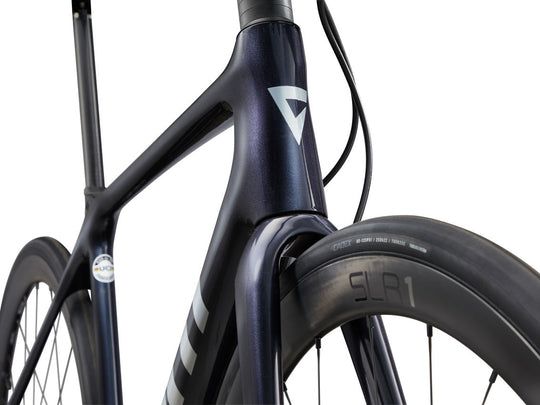

Fork |
Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc
|
Headset | N/A |

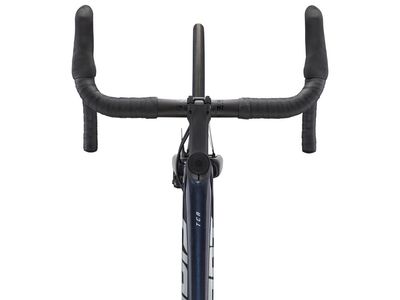

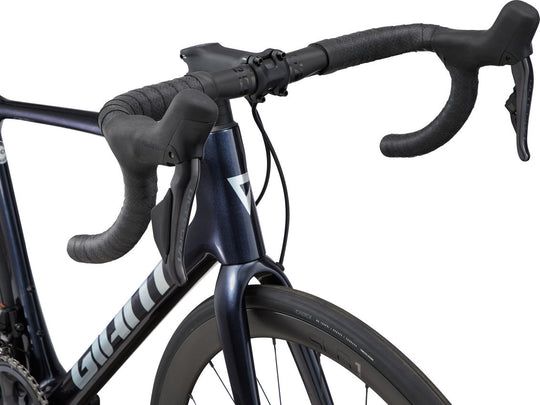

Handlebar |
Giant Contact SLR XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
|
Shifters |
Shimano Ultegra Di2 ST-R8170
|
Grip | Stratus Lite 2.0 |
Crankset |
Shimano Ultegra, 36/52 with Giant Power Pro power meter XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
|
Pedals | N/A |
Hubs |
[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
|
Brake Levers |
Shimano Ultegra Di2 hydraulic
|
Chain | Shimano Ultegra |
Bottom Bracket | Shimano, press fit |
Domestic Warranty | 1 Year |
International Warranty | 1 Year |
Sales Package | Cycle |
Box Content |
SEAT POST WASHER, REFLECTOR, BELL, TIRE SEALENT, COMPUTER MOUNT, BATTERY PACK
|
Ideal For |
All Cycling Enthusiast - Carbon Bike
|
Size | Height Range (CM) |
S | 165 cm - 175 cm |
M | 171 cm - 181 cm |
ML | 177 cm - 187 cm |
L | 183 cm - 193 cm |
XL | 189 cm - 199 cm |

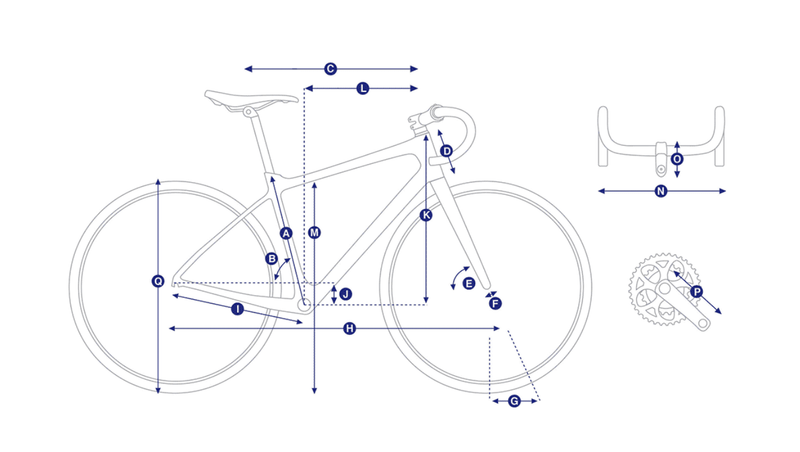

Measurement | S | M | ML | L | XL |
A. Seat Tube Length (mm) | 445 | 470 | 500 | 530 | 560 |
B. Seat Tube Angle | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
C. Top Tube Length (mm) | 535 | 550 | 565 | 580 | 600 |
D. Head Tube Length (mm) | 130 | 145 | 165 | 185 | 200 |
E. Head Tube Angle | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
F. Fork Rake (mm) | 45 | 45 | 45 | 45 | 45 |
G. Trail (mm) | 64 | 59.2 | 59.2 | 59.2 | 59.2 |
H. Wheelbase (mm) | 977 | 980 | 991 | 1006 | 1020 |
I. Chain Stay Length (mm) | 405 | 405 | 405 | 405 | 405 |
J. Bottom Bracket Drop (mm) | 70 | 70 | 67 | 67 | 67 |
K. Stack (mm) | 528 | 545 | 562 | 581 | 596 |
L. Reach (mm) | 383 | 388 | 393 | 402 | 412 |
M. Stand Over Height (mm) | 725 | 747 | 773 | 800 | 816 |
N. Handlebar Width (mm) | 400 | 420 | 420 | 440 | 440 |
O. Stem Length (mm) | 90 | 100 | 110 | 110 | 120 |
P. Crank Length (mm) | 170 | 172.5 | 172.5 | 175 | 175 |
Q. Wheel Size | 700C | 700C | 700C | 700C | 700C |
