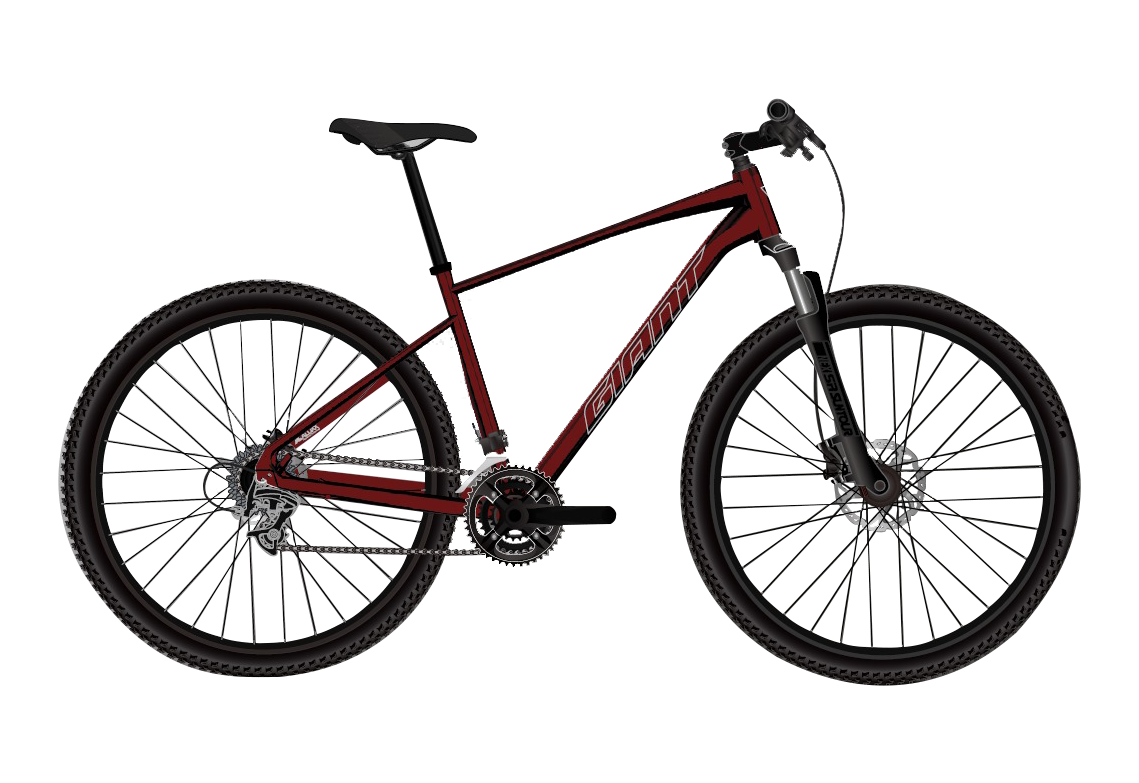

Follow Your Own Route, Wherever It May Lead. With Stable Flat Bar Positioning And Disc Brakes, Roam Disc Handles All Types Of Terrain And Unlimited Adventures.
Agility and control
Updated flat-bar frame geometry puts the rider in a position that balances efficiency with stability, and disc brakes give you added control on rugged roads or dirt.
Smooth-riding comfort
The D-Fuse seatpost and suspension fork absorb road shocks and vibrations allow for a smoother ride.
Integrated rack mounts
Compatible with rear racks, allowing easy cargo capacity for daily trips or longer treks.
Sizes | S,M,L,XL |
Colours | Dried Chilli, Pyrite Brown |
Frame Material | ALUXX-Grade Aluminum |
Tire | Gaint Crosscut, 700x42c, 60 TPI Anti Puncture |
Tire Size | 700C |
Tire Size - Measuring Unit | 633 MM |
Fork | SR Suntour NEX HLO 700C |
Stem | Giant Sport |
Seatpost | Giant D-Fuse, alloy |
Shifters | Shimano Cues U4000 |
Rear Derailleur | Shimano Cues U4000 |
Grip | Ergo Connect lock rim |
Crankset | RPL-240 P |
Saddle | Giant Ergo Contact |
Pedals | Nylon Body And Cage |
Brakes | Tektro TKD-143 |
Hubs | Alloy |
Cassette | Shimano CSLG3009 |
Brake levers | Tektro TKD-143 |
Spoke | stainless |
Chain | Shimano CNLG500 |
Rims | Giant double wall aluminum |
Bottom Bracket | Cartridge |
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size. Available sizes may vary from country to country.
Size | S | M | L | XL |
Height | 160 cm 170 cm | 170 cm 180 cm | 180 cm 190 cm | 190 cm 200 cm |
S | M | ML | L | XL | ||
A | Seat Tube Length (mm) | 420 | 460 | 460 | 500 | 550 |
B | Seat Tube Angle | 73° | 73° | 73° | 73° | 73° |
C | Top Tube Length (mm) | 590 | 600 | 600 | 610 | 625 |
D | Head Tube Length (mm) | 115 | 130 | 130 | 145 | 160 |
E | Head Tube Angle | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
F | Fork Rake (mm) | 42 | 42 | 42 | 42 | 42 |
G | Trail (mm) | 85 | 85 | 85 | 85 | 85 |
H | Wheelbase (mm) | 1088 | 1098 | 1098 | 1109 | 1125 |
I | Chain Stay Length (mm) | 450 | 450 | 450 | 450 | 450 |
J | Bottom Bracket Drop (mm) | 62 | 62 | 62 | 62 | 62 |
K | Stack (mm) | 606 | 620 | 620 | 634 | 648 |
L | Reach (mm) | 404 | 410 | 410 | 416 | 427 |
M | Stand Over Height (mm) | 725 | 756 | 756 | 788 | 827 |
N | Handlebar Width (mm) | 640 | 680 | 680 | 680 | 680 |
O | Stem Length (mm) | 70 | 80 | 80 | 90 | 100 |
P | Crank Length (mm) | 170 | 170 | 170 | 175 | 175 |
Q | Wheel Size | 700C | 700C | 700C | 700C | 700C |
