A pure gravel race machine focused on one thing: taking the lead and staying there. Ok, two things…

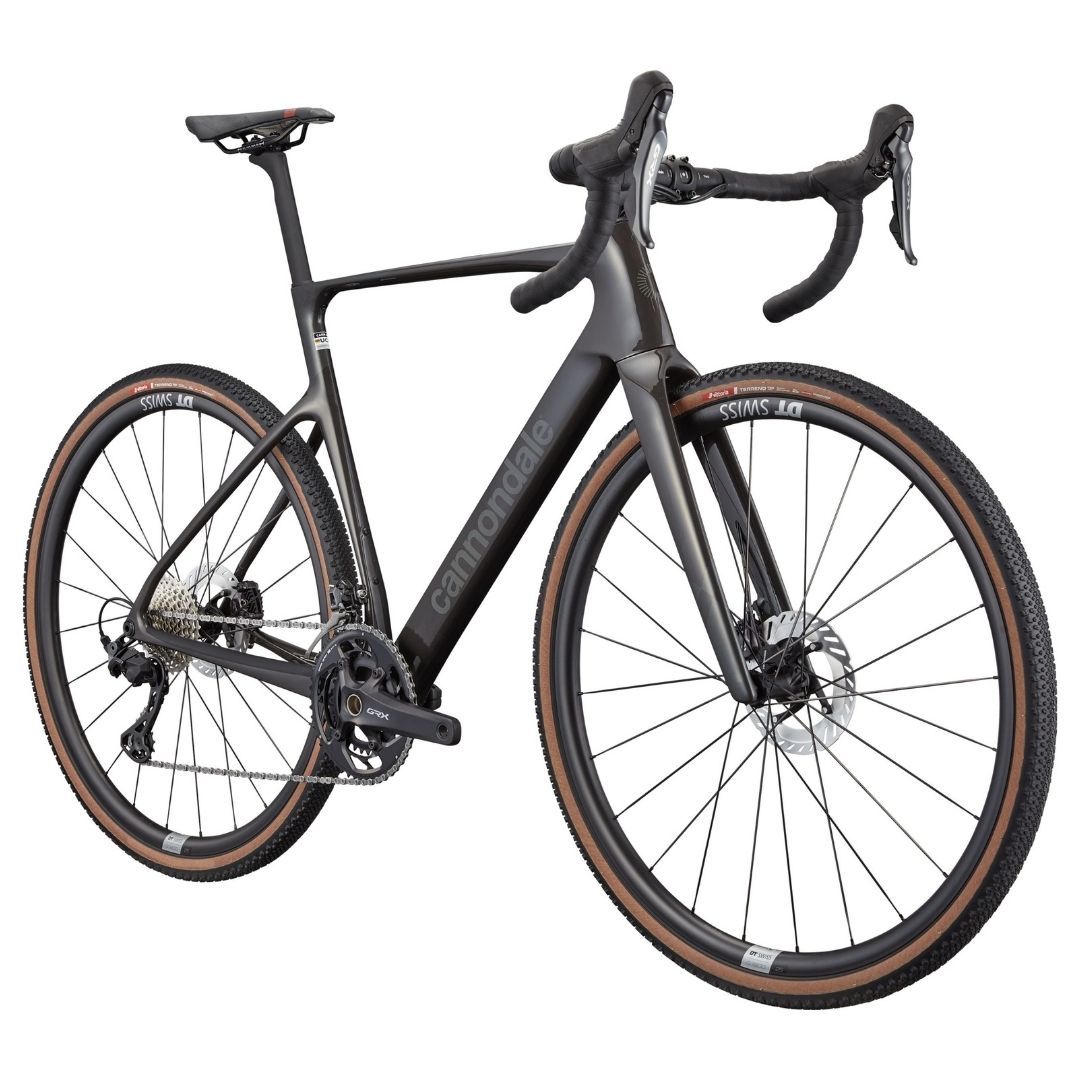

Ready, Set, Thrash. SuperX 3 channels Cannondale’s racing pedigree, turning every stretch of gravel into a proving ground. The carbon frame is as light as it is tough, paired with DT Swiss GR1800 wheels and Vittoria Terreno tries to make short work of gravel and dirt. Shimano GRX 820 delivers crisp, consistent shifting, and flat-mount hydraulic brakes ensure steady control. Vittoria Terreno tires bite into loose terrain, keeping you fast and focused from start to finish. SuperX 3 turns every race into an opportunity to leave your mark.
Elite gravel racing, KOM hunting, Going like hell
| Details | |
| Item | Specification |
| Platform | SuperX |
| Model Name | SuperX 3 |
| Model Code | C17045U |
| Frameset | |
| Item | Specification |

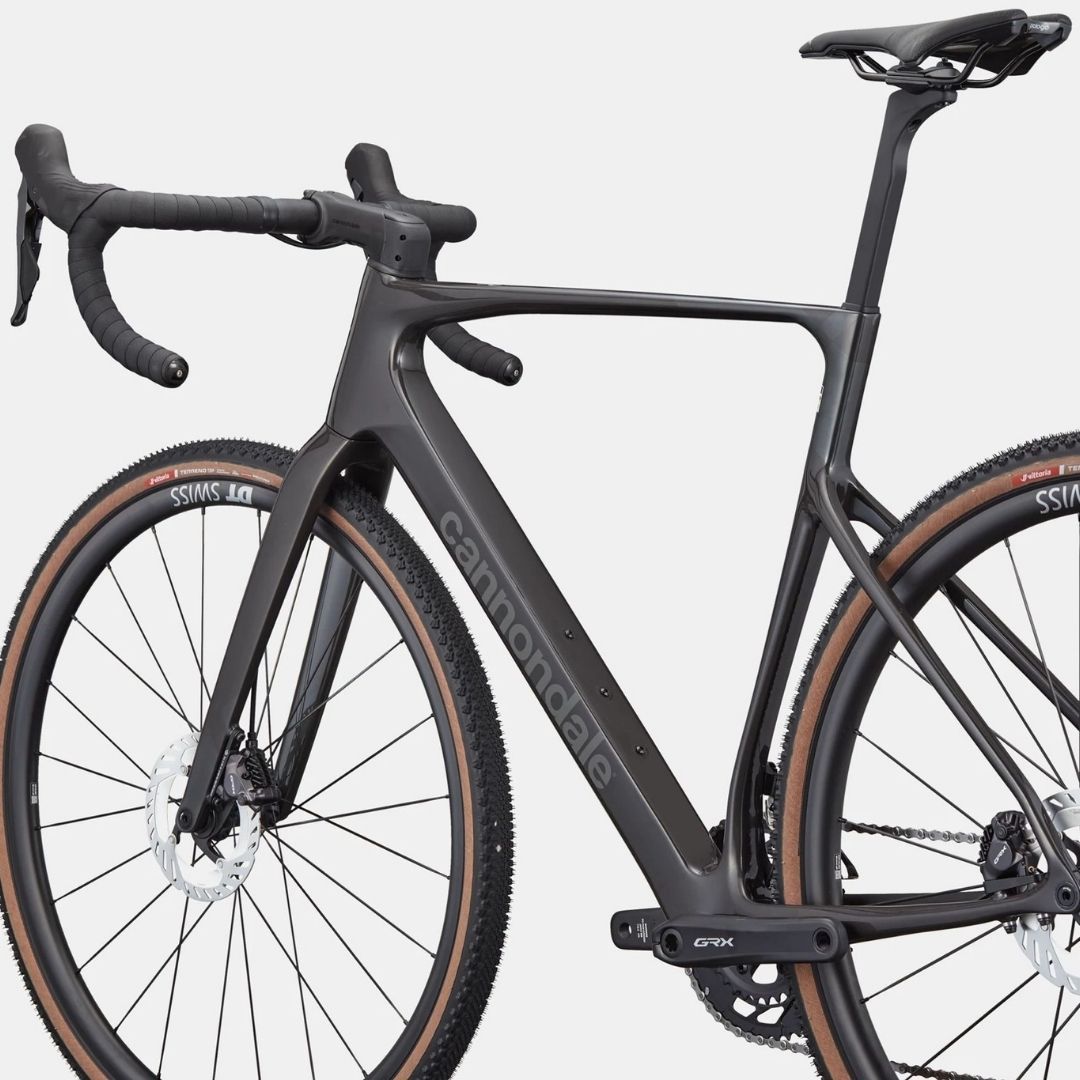

| Frame | SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH BSA 68mm threaded BB, flat mount disc, integrated seatpost binder |
| Fork | SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset |
| Headset | Integrated, 1-1/8" – 1.5" |
| Drivetrain | |
| Item | Specification |

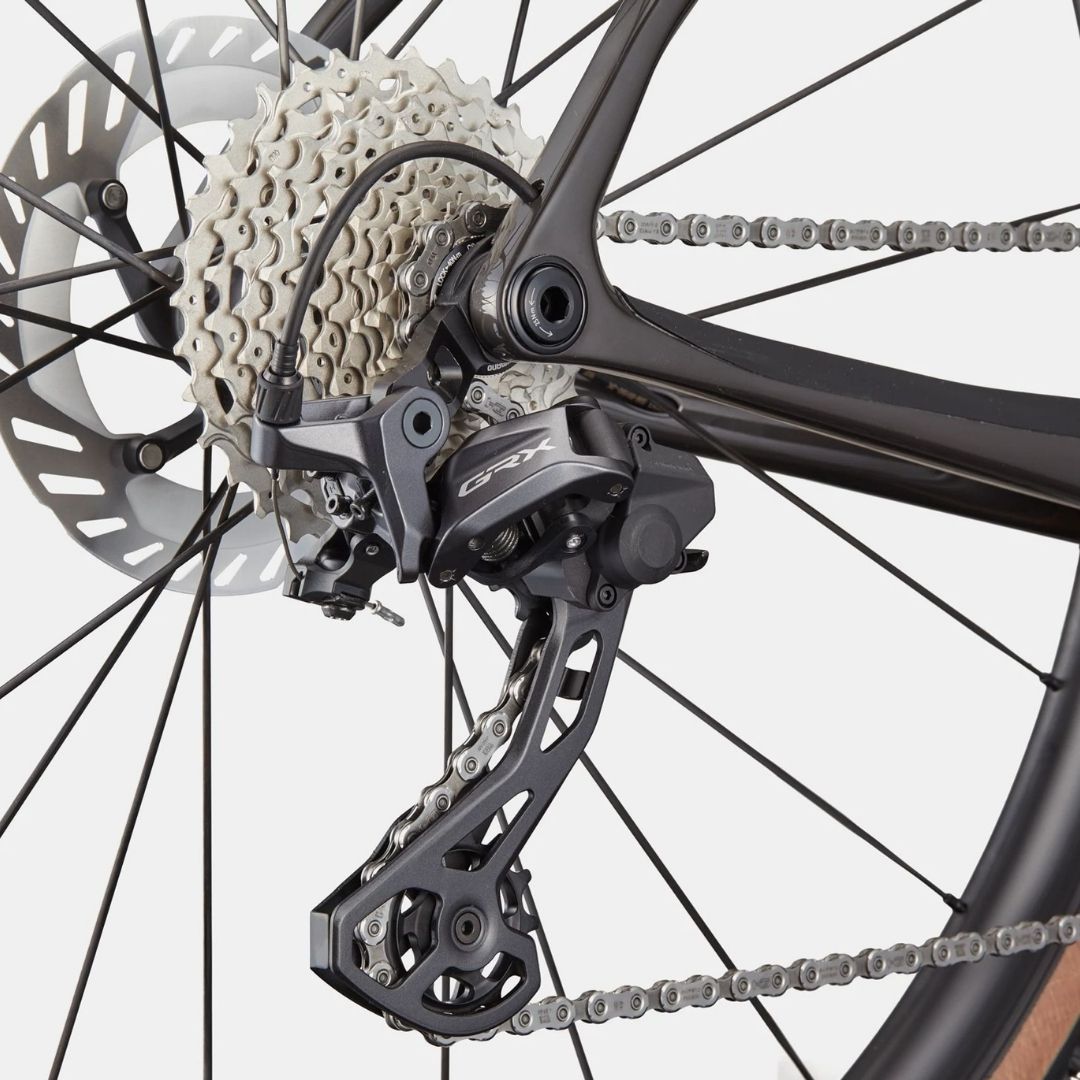

| Rear Derailleur | Shimano GRX 820, Shadow RD+ |
| Front Derailleur | Shimano GRX 820, braze-on |
| Shifters | Shimano GRX 820, 12-speed |
| Chain | Shimano M8100, 12-speed |

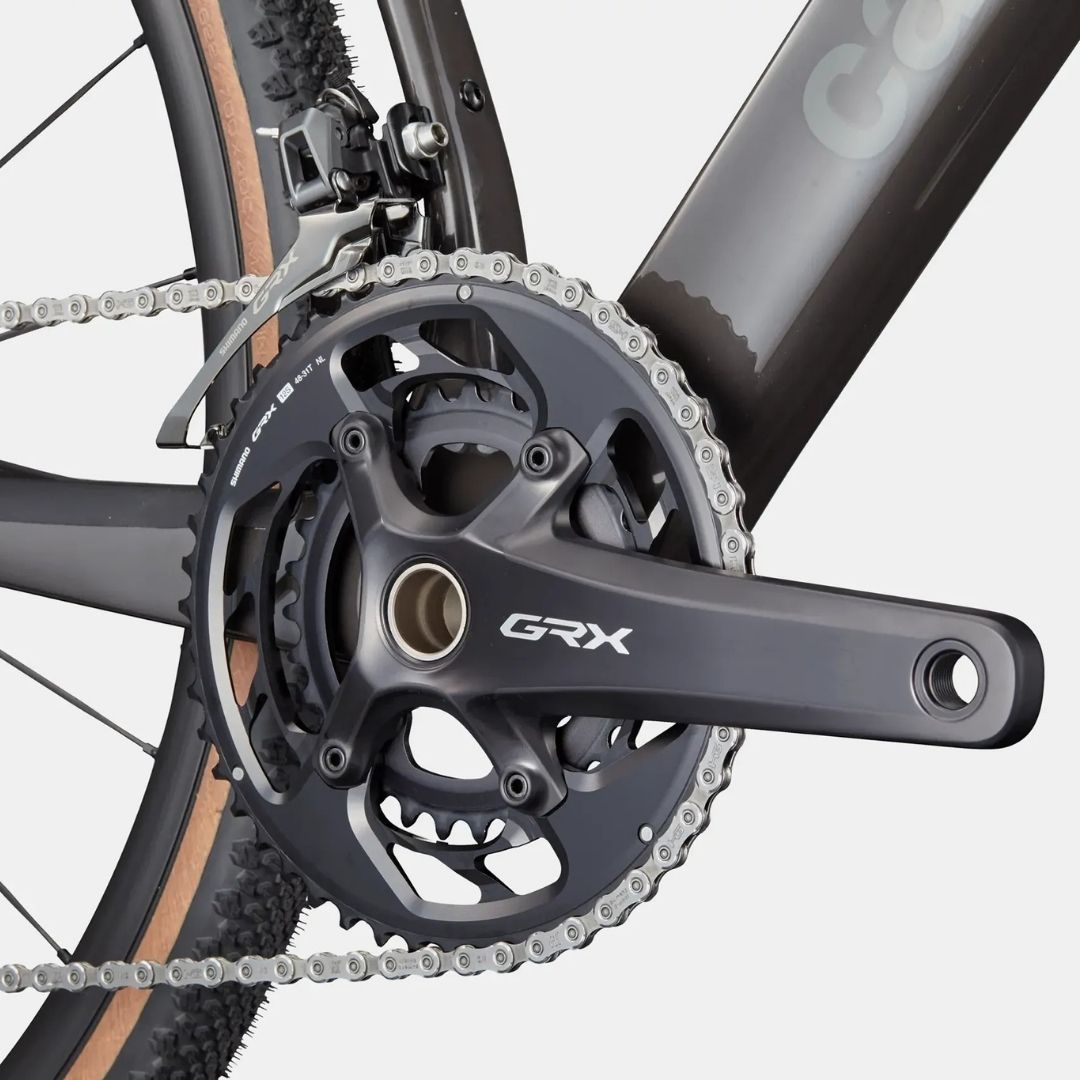

| Crank | Shimano GRX RX820, 48/31: 170mm (51cm), 172.5mm (54–56cm), 175mm (58–61) / Note: size 46cm gets 165mm GRX RX610 cranks, 46/30 |
| Rear Cogs | Shimano 105 7100, 11–36, 12-speed |
| Bottom Bracket | Shimano BSA 68 |
| Brakes | |
| Item | Specification |
| Brakes | Shimano GRX 820, 160/160mm CL800 rotors |
| Brake Levers | Shimano GRX RX820 hydraulic disc |
| Wheels | |
| Item | Specification |
| Rims | DT Swiss G1800 Spline, 24mm inner width, 25mm depth, 24h, tubeless ready |
| Spokes | DT Swiss Aero Comp |
| Tire Size | 40 |
| Wheel Size | 700c |
| Hubs | (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock |
| Tyres | |
| Item | Specification |
| Tyres | Vittoria Terreno T50, 700x40c, tubeless ready |
| Front Tyre | Vittoria Terreno T50, 700x40c |
| Rear Tyre | Vittoria Terreno T50, 700x40c |
| Components | |
| Item | Specification |

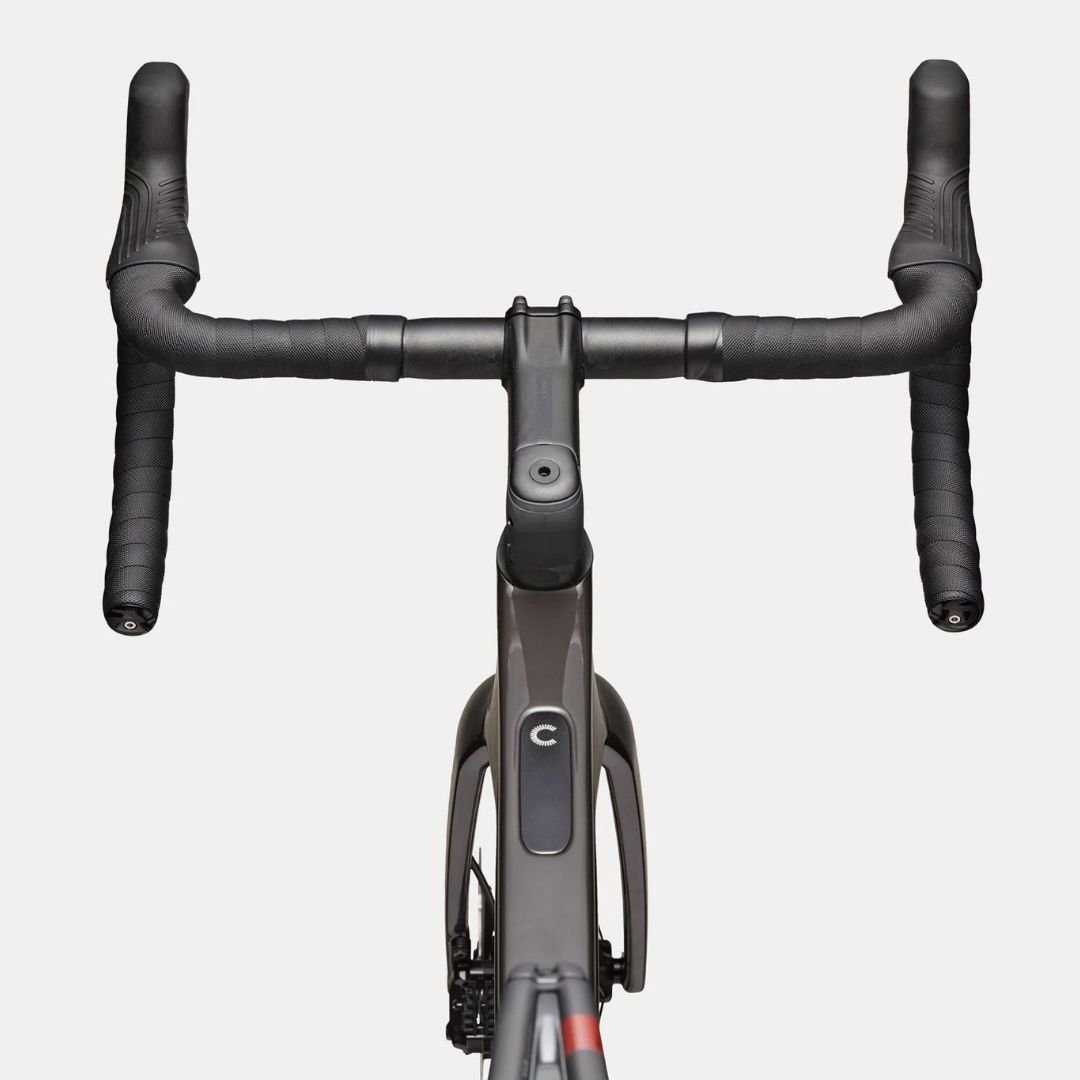

| Handlebar | Cannondale C2, 7050 Alloy, Compact: 400mm (46–51cm), 420mm (54–61cm) |
| Stem | Cannondale C1 Conceal, Alloy, 31.8, -6°: 90mm (46–51m), 100mm (54–56cm), 110mm (58–61cm) |
| Grips | Cannondale Bar Tape, 3.5mm |
| Saddle | Prologo Dimension AGX STN |
| Seatpost | Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 20mm offset (51–61cm) |
| Extra | |
| Item | Specification |
| Extra 1 | Tubeless valves |
Please note that, based on component availability and other factors, specifications are subject to change without notice.
