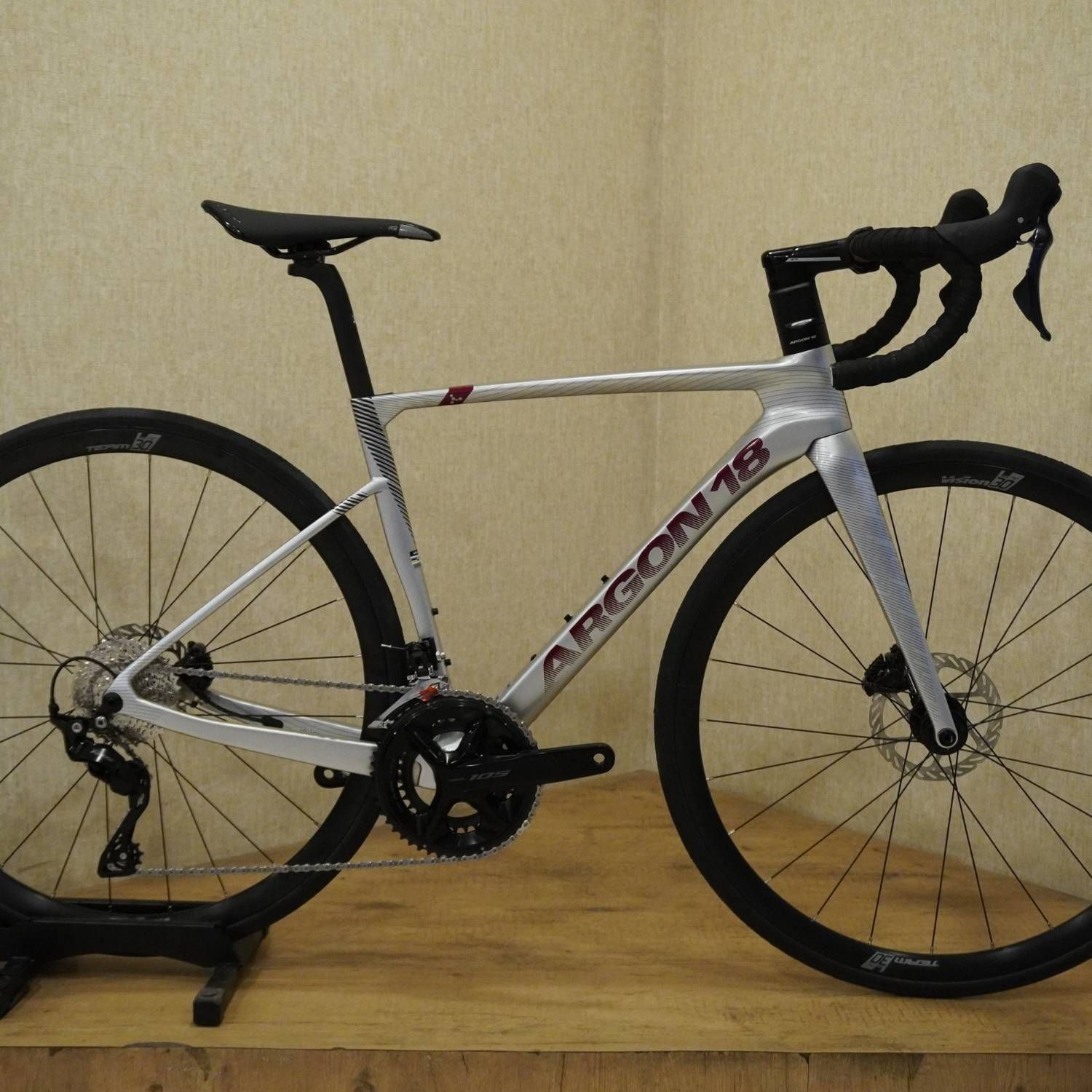

Argon 18 SUM - Podium Grey Gloss

Home/Store/Bikes/Road Bikes

Product Details

Brand: ARGON18

SKU: Sum Silver 105 Vision CL (ICR)

All Together Faster

Decisions, decisions… made easy. With a bike that gives you flat-out advantage on the climbs, the sprints and the straightaways, the only decision you’ll need to make is how nice you want to be to the other guys.

A rider-oriented design approach ensures a frame that is both rooted and responsive, with a ride experience most aero frames can’t match. With a layup engineered to maximise aerodynamics while keeping weight low, the design process for the Sum allowed us to strip away all unnecessary weight within the new aero profile tube shapes - all while maintaining maximum power transfer.

Technology

3D System : Get the best fit window without compromising the safety, steerer stiffness, or looks of your bike with Argon 18's 3D Technology.
Road Race Geometry : Our road race geometry is designed around the razor-sharp reflexes and precision handling required for racers of all levels.
Topological Compliance System : Proprietary design method to offer exceptional vertical compliance and dampened road-induced vibrations while retaining maximum stiffness. Each bike model featuring TCS technology was individually analysed to optimize frame topology and carbon layup.
Argon Fit System : Argon 18's fit system offers size-specific geometries to provide optimal performance and positioning for all sizes, guaranteeing no rider left behind.
Elite Level Layup : We believe the discerning cyclist deserves more than just trickle-down technology. Our Elite level bikes benefit from the same attention to detail as our Pro level ones.

Specifications (Components)

Frameset

Component	Specification
Frame	SUM
Fork	SUM specific
Headset	FSA Headset NO.55R 1.5” + 3D
Integrated Cables	Yes

Wheels & Tyres

Component	Specification
Wheels	Vision Team 30
Tyres	Continental Ultra Sport 700x25
Maximum Tyre Clearance	30C (32 mm)

Groupset

Component	Specification
Bottom Bracket	Shimano Ultegra SM-BB72
Front Derailleur	Shimano 105 R7100
Rear Derailleur	Shimano 105 R7100
Crankset	Shimano 105 FC-R7100 (50/34)
Chain	Shimano 105 CS-R7100
Cassette	Shimano 105 CS-R7100 (11-34)

Brakes

Component	Specification
Brakes	Shimano 105 R7120
Brake Levers	Shimano 105 R7120
Rotors	Avid DB16SEP21
Rotor Size	Front: 160 mm / Rear: 140 mm

Cockpit & Other Components

Component	Specification
Handlebar	Control Tech
Stem	FSA SMR-II
Bar Tape	Prologo
Saddle	Prologo Kappa RS
Seatpost	SUM specific

Geometry & Fit – Stack & Reach

Size	XXS (44–46)	XS (47–50)	S (51–53)	M (54–56)	L (57–59)	XL (60–62)
A. Seat Tube Height (cm)	39.5	42.5	46.0	50.5	55.0	59.5
B. Seat Tube Angle (°)	75.0	74.5	74.0	73.5	73.0	72.5
C. Head Tube Angle (°)	71.2	72.1	72.7	72.7	72.7	73.0
D. Top Tube Length (cm)	50.3	52.0	53.8	55.7	57.8	60.0
E. Chainstay Length (cm)	41.0	41.0	41.0	41.0	41.0	41.0
F. Wheelbase (cm)	96.7	97.2	97.5	99.0	100.6	102.0
G. BB Drop (cm)	6.9	7.3	7.7	7.7	7.7	7.7
H1. Head Tube Length 3D (0 mm) (cm)	6.9	8.5	10.1	12.6	15.2	18.0
H2. Head Tube Length 3D (15 mm) (cm)	8.4	10.0	11.6	14.1	16.7	19.5
H3. Head Tube Length 3D (25 mm) (cm)	9.4	11.0	12.6	15.1	17.7	20.5
I. Standover Height (cm)	67.6	70.0	72.7	76.6	80.4	84.1

Fit – Stack & Reach (All Measurements in cm)

Size	XXS (44–46)	XS (47–50)	S (51–53)	M (54–56)	L (57–59)	XL (60–62)
J. Stack 3D (0 mm)	47.1	49.3	51.6	54.0	56.5	59.2
J. Stack 3D (15 mm)	48.5	50.7	53.0	55.4	57.9	60.6
J. Stack 3D (25 mm)	49.5	51.7	54.0	56.4	58.9	61.6
K. Reach 3D (0 mm)	37.5	38.2	38.9	39.7	40.5	41.4
K. Reach 3D (15 mm)	37.0	37.7	38.5	39.3	40.1	41.0
K. Reach 3D (25 mm)	36.7	37.4	38.2	39.0	39.8	40.7
Saddle Height – Min	56.5	59.5	63.0	67.5	72.0	76.5
Saddle Height – Max	71.5	74.5	78.0	82.5	87.0	91.5
