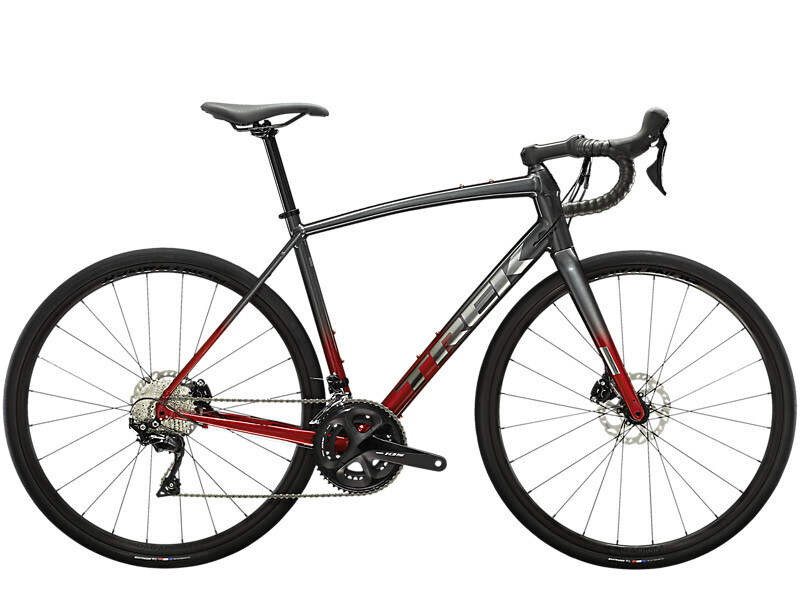

Trek Domane AL 5 Disc - Lithium Grey to Crimson Fade
TrekDomaneAL5DGrey
₹175,899.00
In stock
1
Product Details
Brand:
TREK
IN-STORE PICKUP ONLY
Trek Bicycles & Bontrager Spares/Accessories are only available for in-store pickup from our Pune Bike Shop.
Please Call or Whatsapp (+91) 7020425618 to talk to our Product Specialists.
Domane AL 5 Disc is fast, smooth and confident. Our best alloy Domane is built with a race-worthy Shimano 105 group set, powerful hydraulic disc brakes and a vibration-absorbing fork and handlebar to keep you feeling fresh on long, competitive rides.
[tab name="FEATURES"]
It's right for you if...
You want a comfortable, high-performance alloy road bike built with higher-end components. You're planning to crank out lots of fun, fast miles on the road and even light gravel rail trails.
The tech you get
A 2x11 Shimano 105 drivetrain has a wide range of gears for riding on any terrain. The lightweight aluminium frame has mudguard mounts and a stable Endurance Geometry for a confident, comfortable ride. Plus, tubeless-ready rims and hydraulic disc brakes for stopping power in any conditions. A carbon fork and IsoZone handlebar absorb fatiguing road vibration.
The final word
Our best aluminium Domane boasts race-worthy parts and a comfortable ride quality that can’t be matched on long rides and rough roads.
Why you'll love it
- This versatile bike is fully capable of taking on rough roads, challenging rides, races and even light gravel riding
- The unique IsoSpeed Carbon fork, which swoops forward toward the dropouts, absorbs vibrations from the road so your arms won't fatigue as quickly
- Setting your wheels up as tubeless reduces the overall weight of your bike and the chance you’ll get a flat
- Bigger tyre clearance lets you run wider tyres for more traction and stability on rail trails and other light gravel roads
- DuoTrap S compatibility makes it easy to wirelessly track your rides, so you can set goals and watch yourself reach them
Premium alloy frame
Every Domane AL Disc has a lightweight aluminium frame with internal cable routing and smooth welds for race-ready looks and performance.
Long-haul comfort
The endurance geometry, wide tyres and carbon fork keep you comfortable when you’re setting distance records.
High-value performance
The Domane AL Disc is built in Trek's road racing heritage, which means it's a road bike you won't outgrow as your rides get longer and faster.
Any road, any adventure
Disc brakes, extra tyre clearance and mounts for a rack and mudguards give it the versatility for any all-road adventure.
[tab name='SPECIFICATIONS']
| Frameset | |
| Frame |
100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
|
| Fork |
Domane AL carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
|
| Frame fit | Endurance |
| Wheels | |
| Hub front |
Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
|
| Skewer front |
Bontrager Switch thru axle, removable lever
|
| Hub rear |
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
|
| Skewer rear |
Bontrager Switch thru-axle, removable lever
|
| Rim |
Bontrager Affinity Disc, Tubeless Ready, 28-hole, 21 mm width, presta valve
|
| Spokes | 14 g stainless steel |
| Tyre |
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c
|
| Max tyre size |
35c without fenders, 32c with fenders
|
| Drivetrain | |
| Shifter |
Shimano 105 R7020, 11-speed
|
| Front derailleur |
Shimano 105 R7000, 31 mm clamp
|
| Rear derailleur |
Shimano 105 R7000, long cage, 34T max cog
|
|
*Crank
|
Size: 52
Shimano 105 R7000, 50/34 (compact), 170 mm length |
|
Size: 54, 56
Shimano 105 R7000, 50/34 (compact), 172.5 mm length |
|
|
Size: 58
Shimano 105 R7000, 50/34 (compact), 175 mm length |
|
| Bottom bracket |
Prowheel PW-BB73+, 68/73 mm, threaded external
|
| Cassette |
Shimano 105 HG700-11, 11-34, 11-speed
|
| Chain | Shimano HG601 |
| Components | |
|
*Saddle
|
|
| Seatpost |
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
|
|
*Handlebar
|
Size: 52
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width |
|
Size: 54, 56
Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 42 cm width |
|
|
Size: 58
Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 44 cm width |
|
| Handlebar tape |
Bontrager Supertack Perf tape
|
|
*Stem
|
Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|
| Head set |
FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
|
| Brake |
Shimano 105 hydraulic disc
|
| Brake rotor |
Shimano SM-RT70, CenterLock, 160 mm
|
| Weight | |
| Weight |
56 – 22.16 lb / 10.05 kg
|
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
|
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
[tab name="SIZING"]
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | |
| Rider Height | 150.0 - 153.0 cm | 156.0 - 162.0 cm | 163.0 - 168.0 cm | 168.0 - 174.0 cm | 174.0 - 180.0 cm | 180.0 - 185.0 cm | 185.0 - 191.0 cm |
| 4'11.1" - 5'0.2" | 5'1.4" - 5'3.8" | 5'4.2" - 5'6.1" | 5'6.1" - 5'8.5" | 5'8.5" - 5'10.9" | 5'10.9" - 6'0.8" | 6'0.8" - 6'3.2" | |
| Inseam | 71.0 - 73.0 cm | 74.0 - 77.0 cm | 76.0 - 79.0 cm | 78.0 - 82.0 cm | 81.0 - 85.0 cm | 84.0 - 87.0 cm | 86.0 - 90.0 cm |
| 28.0" - 28.7" | 29.1" - 30.3" | 29.9" - 31.1" | 30.7" - 32.3" | 31.9" - 33.5" | 33.1" - 34.3" | 33.9" - 35.4" |
All measurements provided in cm unless otherwise stated.
| Frame size number | 52 cm | 54 cm | 56 cm | 58 cm |
| Wheel size | 700c | 700c | 700c | 700c |
| A — Seat tube | 47.5 | 50 | 52.5 | 54.8 |
| B — Seat tube angle | 74.2° | 73.7° | 73.3° | 73.0° |
| C — Head tube length | 14.5 | 16 | 17.5 | 19.5 |
| D — Head angle | 71.3° | 71.3° | 71.9° | 72.0° |
| E — Effective top tube | 53 | 54.2 | 55.4 | 56.7 |
| G — Bottom bracket drop | 8 | 8 | 7.8 | 7.8 |
| H — Chainstay length | 42 | 42 | 42 | 42.5 |
| I — Offset | 5.3 | 5.3 | 4.8 | 4.8 |
| J — Trail | 5.9 | 5.9 | 6.1 | 6 |
| K — Wheelbase | 100.3 | 101 | 100.8 | 102.2 |
| L — Standover | 73.5 | 75.4 | 77.6 | 79.6 |
| M — Frame reach | 37.1 | 37.4 | 37.7 | 38 |
| N — Frame stack | 56.1 | 57.5 | 59.1 | 61.1 |
