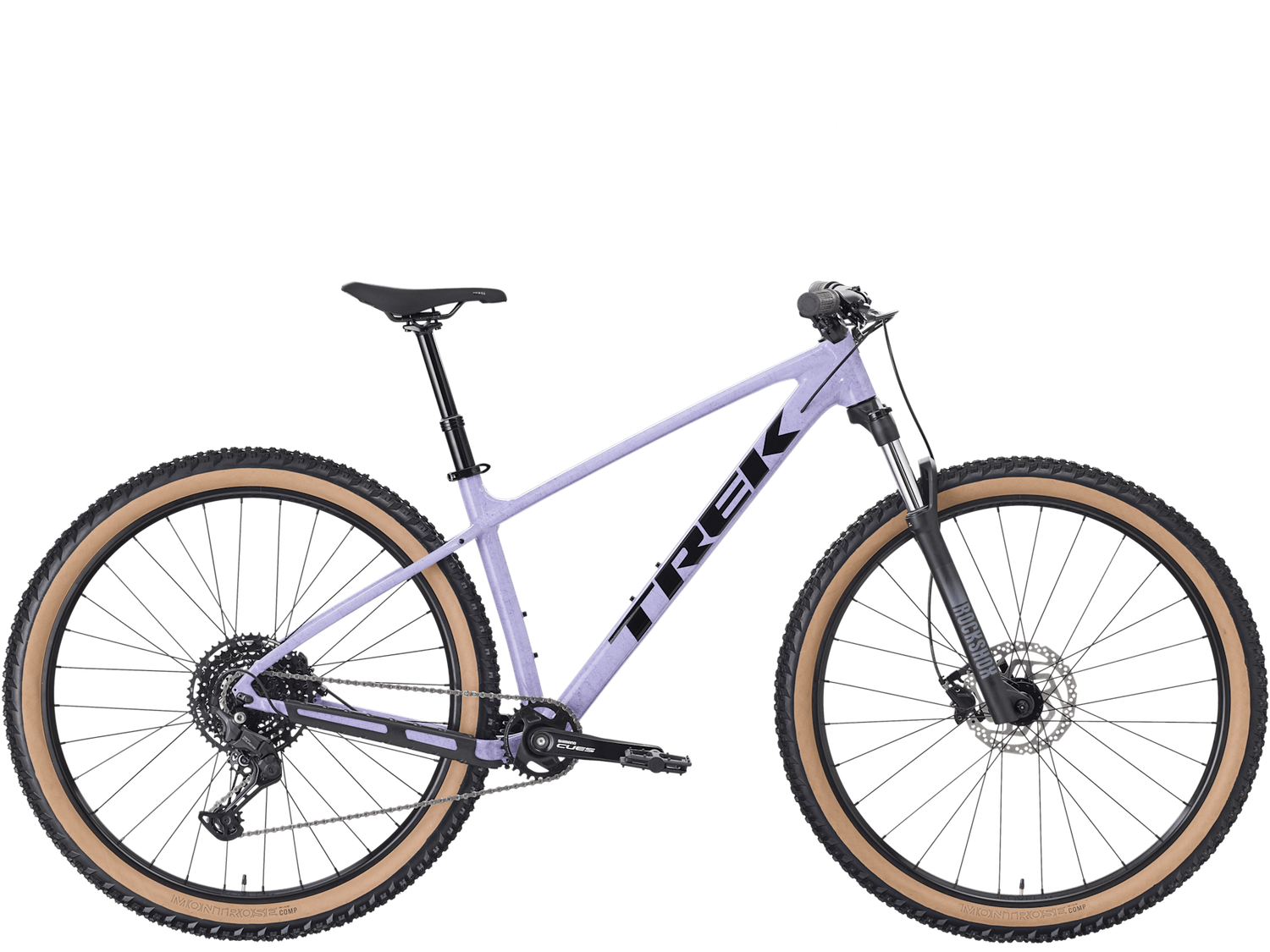

Trek Marlin 6 Gen 3 - Gloss Lavender Haze - 2026
Trek
IN-STORE PICKUP ONLY
Trek Bicycles & Bontrager Spares/Accessories are only available for in-store pickup from our Pune Bike Shop.
Please Call or Whatsapp (+91) 7020425618 to talk to our Product Specialists.
The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.
| Category | Component | Specification / Size Details |
|---|---|---|
| Frameset | Frame |
XS: Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew S / M / ML / L / XL: Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
| Fork |
XS / S: RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel M / ML / L / XL: RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
|
| Wheels | Front Hub | Formula DC-20, alloy, 6-bolt, 100 mm |
| Rear Hub | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm | |
| Rear Skewer | 173x5 mm QR | |
| Rim |
All sizes: Bontrager Kovee, double-wall, Tubeless-Ready, 23 mm width, Presta valve M / ML / L / XL: 32-hole XS / S / M / ML / L / XL: 28-hole |
|
| Tyre |
XS / S: Maxxis IKON, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.35" M / ML / L / XL: Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.35" |
|
| Rim Strip | Bontrager TLR | |
| Drivetrain | Shifter | Shimano U6000, 10-speed |
| Rear Derailleur | Shimano CUES U6000 GS | |
| Crank |
XS / S / M / ML: Shimano U4000, 30T chainring, 170 mm length L / XL: Shimano U4000, 30T chainring, 175 mm length |
|
| Bottom Bracket | Shimano, 73 mm, threaded cartridge, 122.5 mm spindle | |
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed | |
| Chain | Shimano LG500 | |
| Pedal | VP-536 nylon platform | |
| Components | Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost |
XS / S: TranzX JD-YSI34, 100 mm travel, 31.6 mm, 350 mm length M: 125 mm travel, 405 mm length ML / L / XL: 150 mm travel, 456 mm length |
|
| Handlebar |
XS: Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width S: Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width M / ML / L / XL: Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Trek Line Comp, nylon lock-on | |
| Stem |
XS / S: Bontrager Comp, 31.8 mm, 7°, 35 mm length M / ML / L: 31.8 mm, Blendr compatible, 7°, 50 mm length XL: 31.8 mm, Blendr compatible, 7°, 60 mm length |
|
| Headset | Semi-integrated, 1-1/8" | |
| Brake | Shimano MT200 hydraulic disc | |
| Brake Rotor |
All sizes: Shimano RT26, 6-bolt, 160 mm M / ML / L / XL: 180 mm |
|
| Brake Set | Shimano MT200 hydraulic disc | |
| Weight | Bike Weight (M) | 15.00 kg / 33.07 lbs |
| Weight Limit | Maximum total weight (bike + rider + cargo): 136 kg / 300 lbs | |
| Note | Specifications subject to change without notice due to supply chain variations. Compatible parts may be substituted at any time. |
To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.
| Size | Rider Height (cm) | Rider Height (ft/in) | Inseam (cm) | Inseam (in) |
|---|---|---|---|---|
| XS | 145 – 155 | 4'9" – 5'1" | 69 – 73 | 27" – 29" |
| S | 155 – 165 | 5'1" – 5'5" | 74 – 78 | 29" – 31" |
| M | 165 – 177 | 5'5" – 5'10" | 79 – 83 | 31" – 33" |
| ML | 173 – 180 | 5'8" – 5'11" | 81 – 86 | 32" – 34" |
| L | 177 – 188 | 5'10" – 6'2" | 84 – 89 | 33" – 35" |
| XL | 188 – 195 | 6'2" – 6'5" | 89 – 91 | 35" – 36" |
| 2XL | 195 – 203 | 6'5" – 6'8" | 91 – 97 | 36" – 38" |
All measurements provided in cm unless otherwise stated.
| Specification | XS (14.5") | S (15.5") | M (17.5") | ML (18.5") | L (19.5") | XL (21.5") |
|---|---|---|---|---|---|---|
| Wheel size | 27.5" | 27.5" | 29" | 29" | 29" | 29" |
| A — Seat tube (cm) | 34.0 | 37.0 | 41.9 | 44.4 | 47.0 | 52.1 |
| B — Seat tube angle | 73.8° | 73.8° | 71.9° | 71.9° | 71.9° | 71.9° |
| Effective seat tube angle | 74.0° | 74.0° | 73.0° | 73.0° | 73.0° | 73.0° |
| C — Head tube length (cm) | 9.0 | 10.0 | 9.0 | 9.0 | 10.0 | 12.0 |
| D — Head angle | 66.5° | 66.5° | 69.5° | 69.5° | 69.5° | 69.5° |
| E — Effective top tube (cm) | 55.1 | 57.9 | 60.2 | 61.8 | 63.8 | 65.9 |
| F — Bottom bracket height (cm) | 31.3 | 31.3 | 31.0 | 31.0 | 31.0 | 31.0 |
| G — Bottom bracket drop (cm) | 4.5 | 4.5 | 5.8 | 5.8 | 5.8 | 5.8 |
| H — Chainstay length (cm) | 43.3 | 43.3 | 43.8 | 43.8 | 43.8 | 43.8 |
| I — Offset (cm) | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 |
| J — Trail (cm) | 11.0 | 11.0 | 9.3 | 9.3 | 9.3 | 9.3 |
| K — Wheelbase (cm) | 109.2 | 112.1 | 110.0 | 111.6 | 113.7 | 115.9 |
| L — Standover (cm) | 65.8 | 69.2 | 74.8 | 75.8 | 75.7 | 76.9 |
| M — Frame reach (cm) | 39.0 | 41.5 | 41.8 | 43.4 | 45.1 | 46.6 |
| N — Frame stack (cm) | 56.3 | 57.2 | 60.2 | 60.2 | 61.1 | 63.0 |
