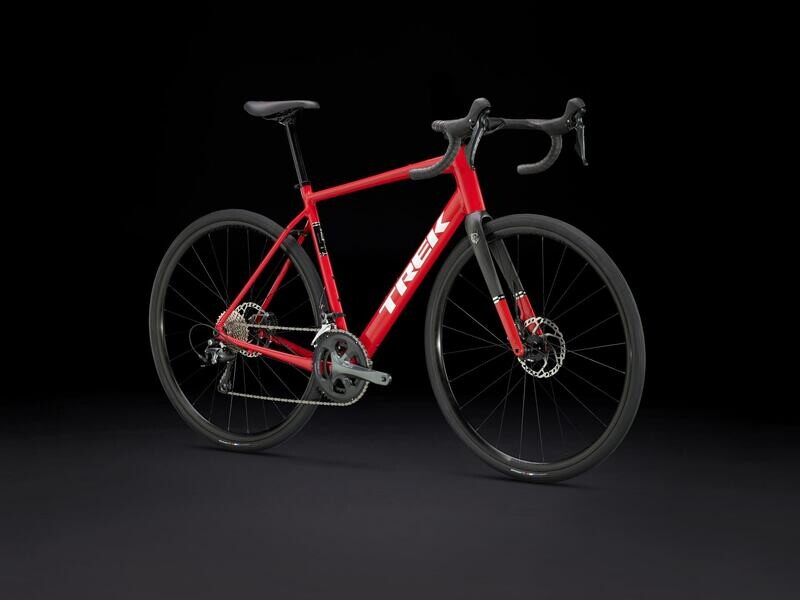

Trek Domane AL 4 Gen 4 - Viper Red
SKU 5301527
₹151,199.00
SIZE
In stock
1
Save this product for later
Trek Domane AL 4 Gen 4 - Viper Red
Product Details
Brand: TREK
SKU: Domaneal4discRD
IN-STORE PICKUP ONLY
Trek Bicycles & Bontrager Spares/Accessories are only available for in-store pickup from our Pune Bike Shop.
Please Call or Whatsapp (+91) 7020425618 to talk to our Product Specialists.

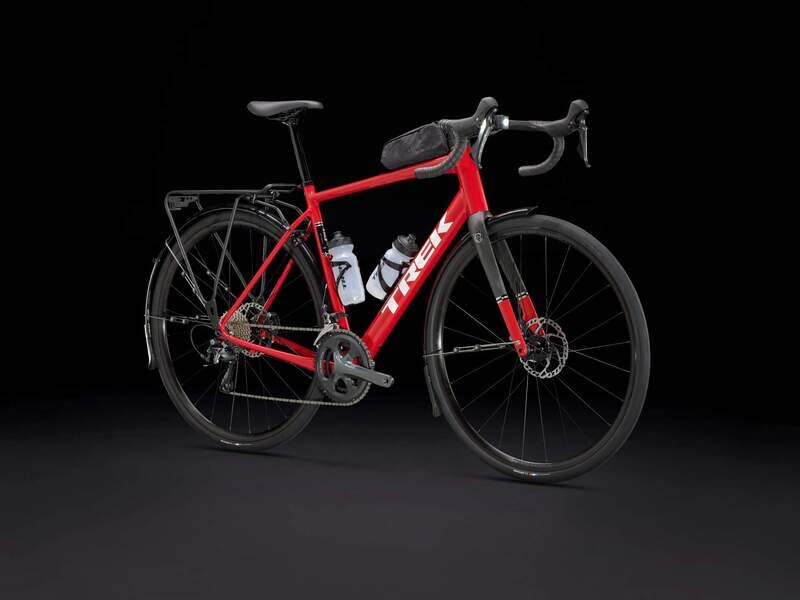

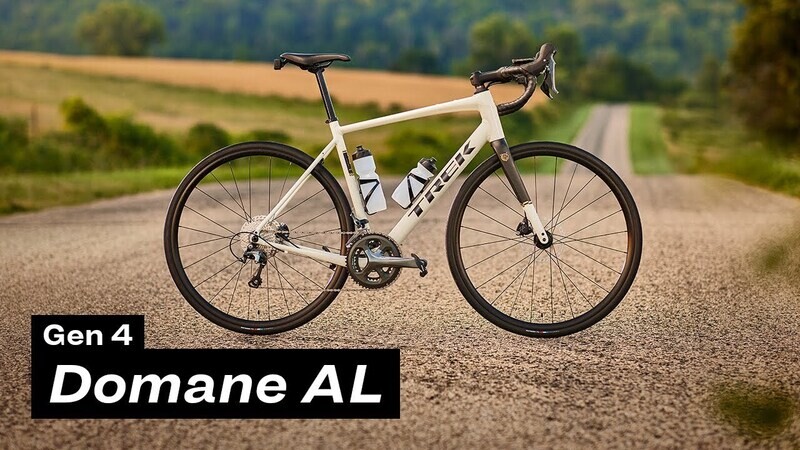

The Domane AL 4 is a speedy and versatile road bike that's a perfect starting point for anyone looking to get into road riding. With an Alpha Aluminium frame, clearance for larger tyres, a 10-speed Shimano Tiagra drivetrain, top tube mounts and an all-day road comfort geometry – Domane AL 4 is perfect for casual pedalling, group rides, fast commutes and even venturing beyond tarmac paths to most gravel roads.
FEATURES
It's right for you if...
You're looking to venture into the world of road bikes and want one that's comfortable, smooth and most importantly, won't break the bank. You want to ride primarily on roads but also want a bike that can handle a rail trail or crushed gravel path, too. Days spent pedalling under the sun sound perfect and you need a bike that's comfortable enough to let you ride as long as you see fit.
The tech you get

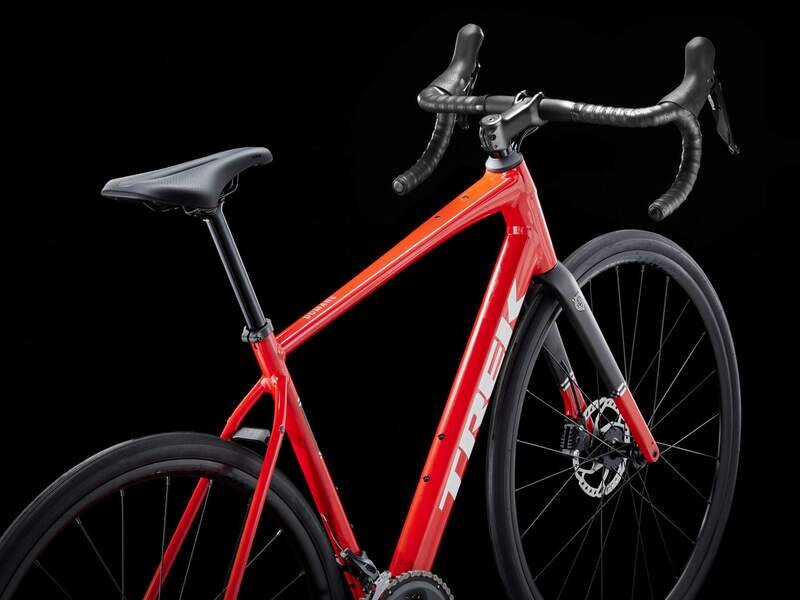

A 100 Series Alpha Aluminium frame with advanced tube shaping for high-end looks and ride quality, a 10-speed Shimano Tiagra drivetrain, powerful disc brakes for all-weather stopping, super-durable wheels, integrated frame mounts for carrying additional gear, 32 mm tubeless-ready road tyres for added cushion and flared handlebars for extra control and stability.
The final word
The Domane AL 4 is a true road bike and the perfect option if you're just getting into riding. It's comfortable for long days, quick enough to hang with the group and extremely versatile for when you're ready to venture off road.
Why you'll love it
- A totally versatile and smooth ride that's a perfect choice for your first performance road bike
- Room for bigger tyres let you ride everything from smooth tarmac to most gravel roads in comfort.

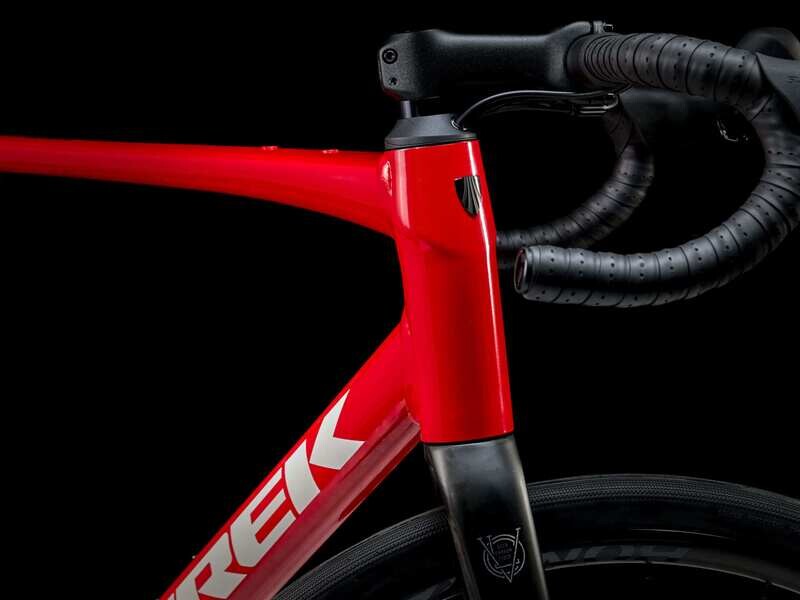

- Internal cable routing and an integrated cockpit provides premium looks and a clean aesthetic

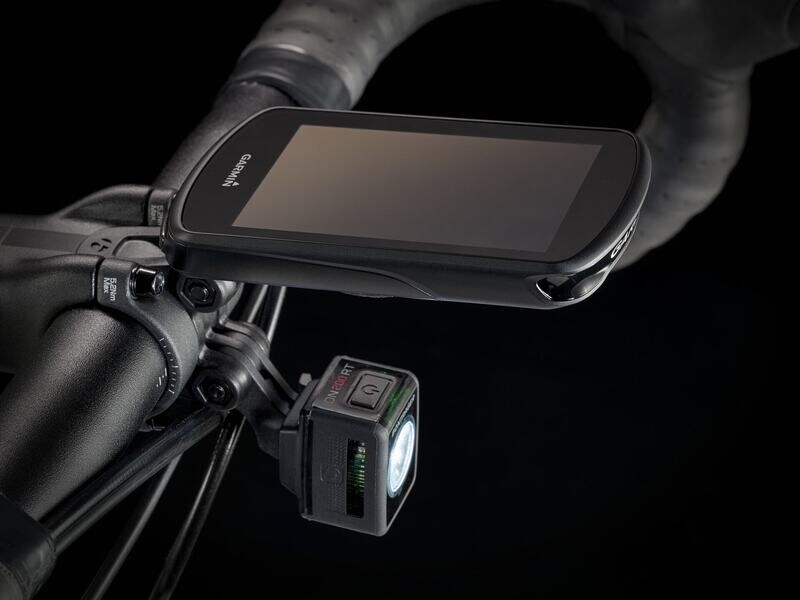

- Rack, mudguard and top tube mounts make it easy to carry all the gear you'll need
- Powerful disc brakes allow for super fast stopping power in all conditions
SPECIFICATIONS
| Frameset | |
| Frame |
100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle
|

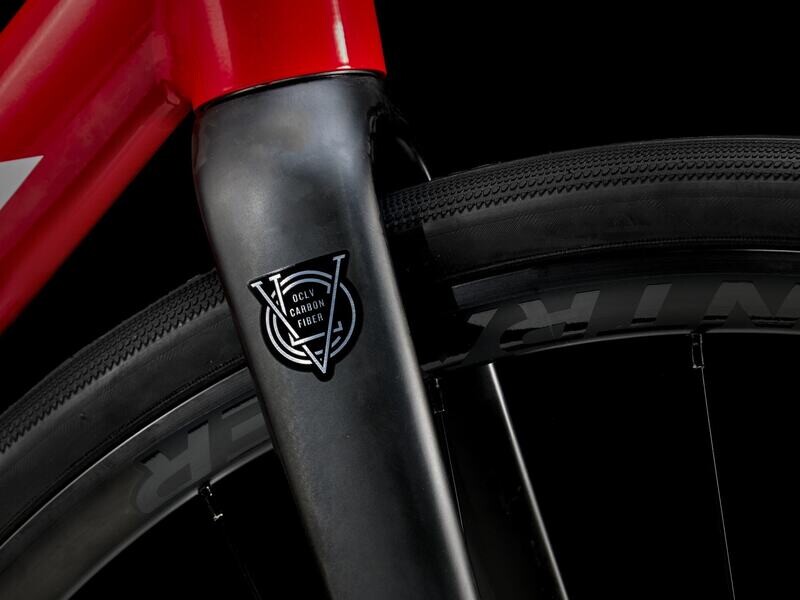

| Fork | |
| Weight | |
| Weight | 56 - 10.35 kg / 22.82 lbs |
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
|
| Drivetrain | |

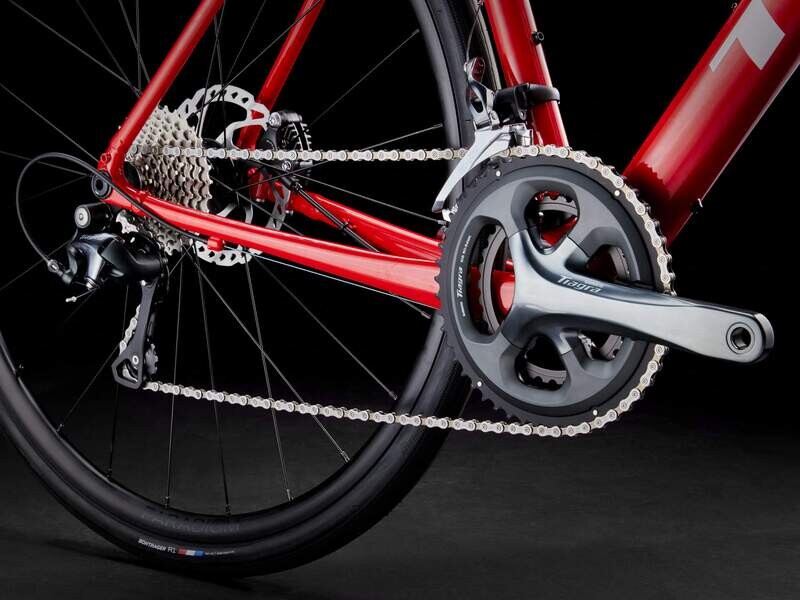

| Shifter | Shimano Tiagra R4720, 10-speed |
| Front derailleur | Shimano Tiagra 4700, 31.8 mm clamp |
| Rear derailleur | Shimano Tiagra 4700, long cage, 34T max cog |
|
*Crank
|
Size: 49, 52 Shimano Tiagra 4700, 50/34, 170 mm length |
| Size: 54, 56 Shimano Tiagra 4700, 50/34, 172.5 mm length |
|
| Size: 58 Shimano Tiagra 4700, 50/34, 175 mm length |
|
| Bottom bracket | Shimano RS501 BSA |
| Cassette | Shimano 10-speed, 11-32T |
| Chain | Shimano Tiagra HG54, 10-speed |
| Max. chainring size | 1x: 50T, 2x: 50/34 |
| Wheels | |
| Hub front | Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Hub rear |
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle
|
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Rim |
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
|
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |

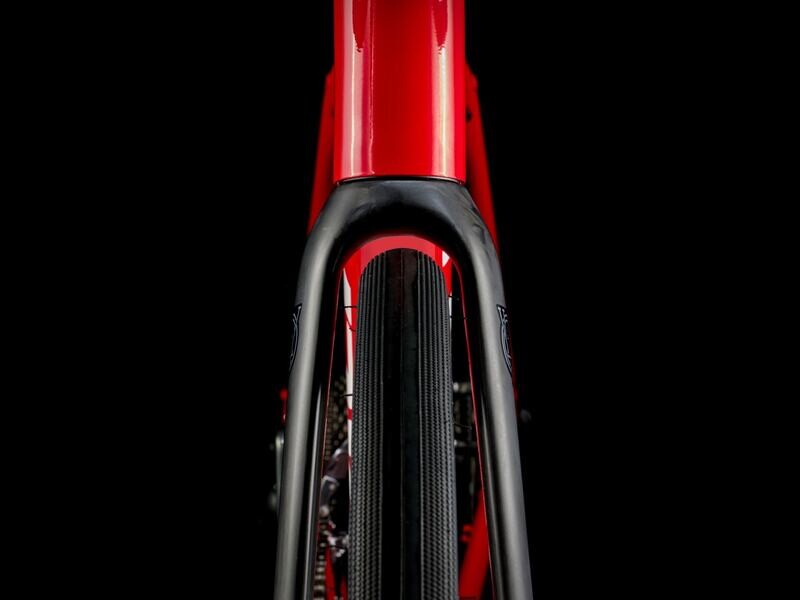

| Max tyre size | 38mm without mudguards, 35mm with mudguards |
| Components | |
| Saddle | Verse Short, steel rails, 145 mm width |
|
*Seatpost
|
Size: 49 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length |
| Size: 52, 54, 56, 58 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length |
|
|

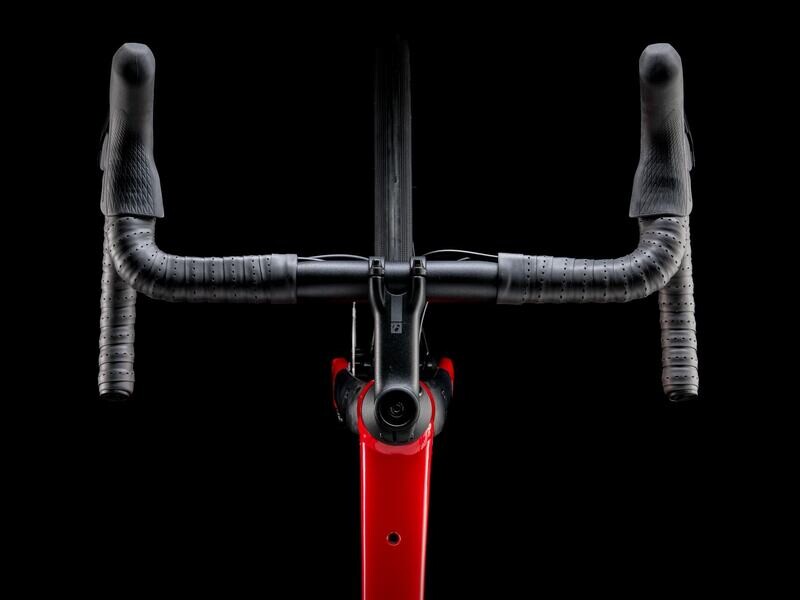

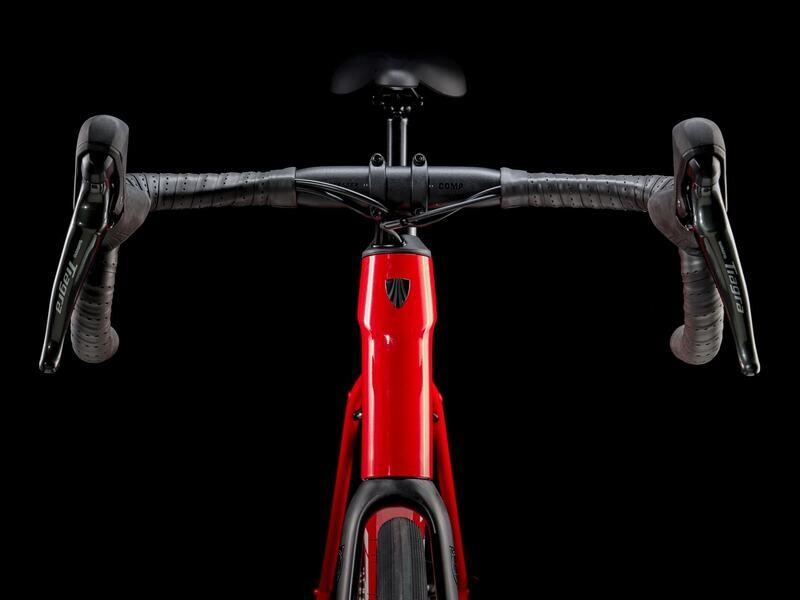

*Handlebar
|
Size: 49
Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width |
|
Size: 54, 56
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width |
|
|
Size: 58
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
|
*Stem
|
Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
| Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
| Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|

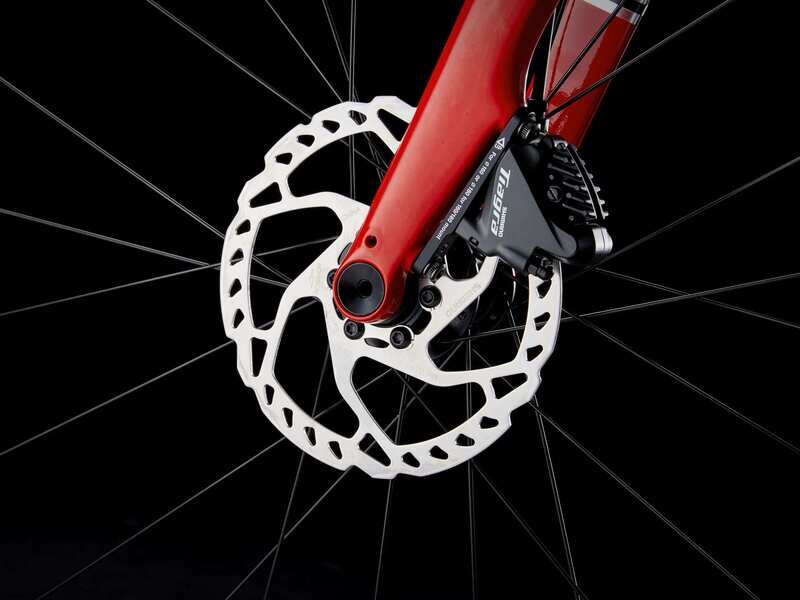

| Brake | Shimano Tiagra hydraulic disc |
| Brake rotor | Shimano RT66, 6-bolt, 160 mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
SIZING AND GEOMETRY
| Size | 44 | 49 | 52 | 54 | 56 | 58 | 61 |
| Rider Height | 150 - 153 cm 4'11" - 5'0" |
156 - 163 cm 5'1" - 5'4" |
163 - 168 cm 5'4" - 5'6" |
168 - 174 cm 5'6" - 5'9" |
174 - 180 cm 5'9" - 5'11" |
180 - 185 cm 5'11" - 6'1" |
185 - 191 cm 6'1" - 6'3" |
| Inseam | 71 - 73 cm 28" - 29" |
74 - 77 cm 29" - 30" |
76 - 79 cm 30" - 31" |
78 - 82 cm 31" - 32" |
81 - 85 cm 32" - 33" |
84 - 87 cm 33" - 34" |
86 - 90 cm 34" - 35" |
All measurements provided in cm unless otherwise stated.
| Frame size number | 49cm | 52cm | 54cm | 56cm | 58cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 44 | 47.5 | 50 | 52.5 | 54.8 |
| B — Seat tube angle | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° |
| C — Head tube length | 12.3 | 14.5 | 16 | 17.5 | 19.5 |
| D — Head angle | 70.8° | 71.3° | 71.3° | 71.9° | 72.0° |
| E — Effective top tube | 51.6 | 53 | 54.2 | 55.4 | 56.7 |
| G — Bottom bracket drop | 8 | 8 | 8 | 7.8 | 7.8 |
| H — Chainstay length | 42.5 | 42 | 42 | 42 | 42.5 |
| I — Offset | 5.3 | 5.3 | 5.3 | 4.8 | 4.8 |
| J — Trail | 6.6 | 5.9 | 5.9 | 6.1 | 6 |
| K — Wheelbase | 100.1 | 100.3 | 101 | 101.8 | 102.2 |
| L — Standover | 71.7 | 73.5 | 75.4 | 77.6 | 79.6 |
| M — Frame reach | 36.8 | 37.1 | 37.4 | 37.7 | 38 |
| N — Frame stack | 54 | 56.1 | 57.5 | 59.1 | 61.1 |
