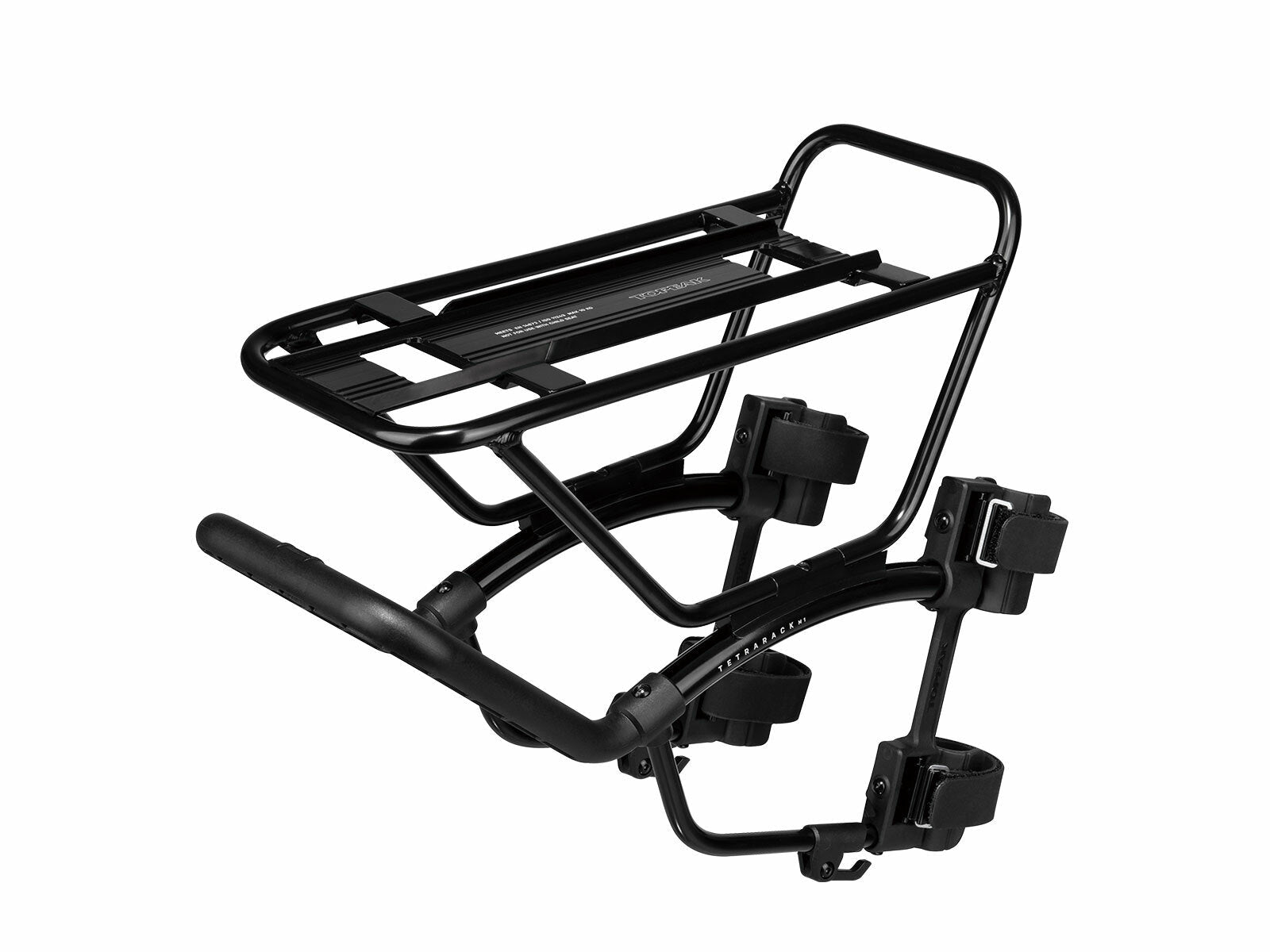

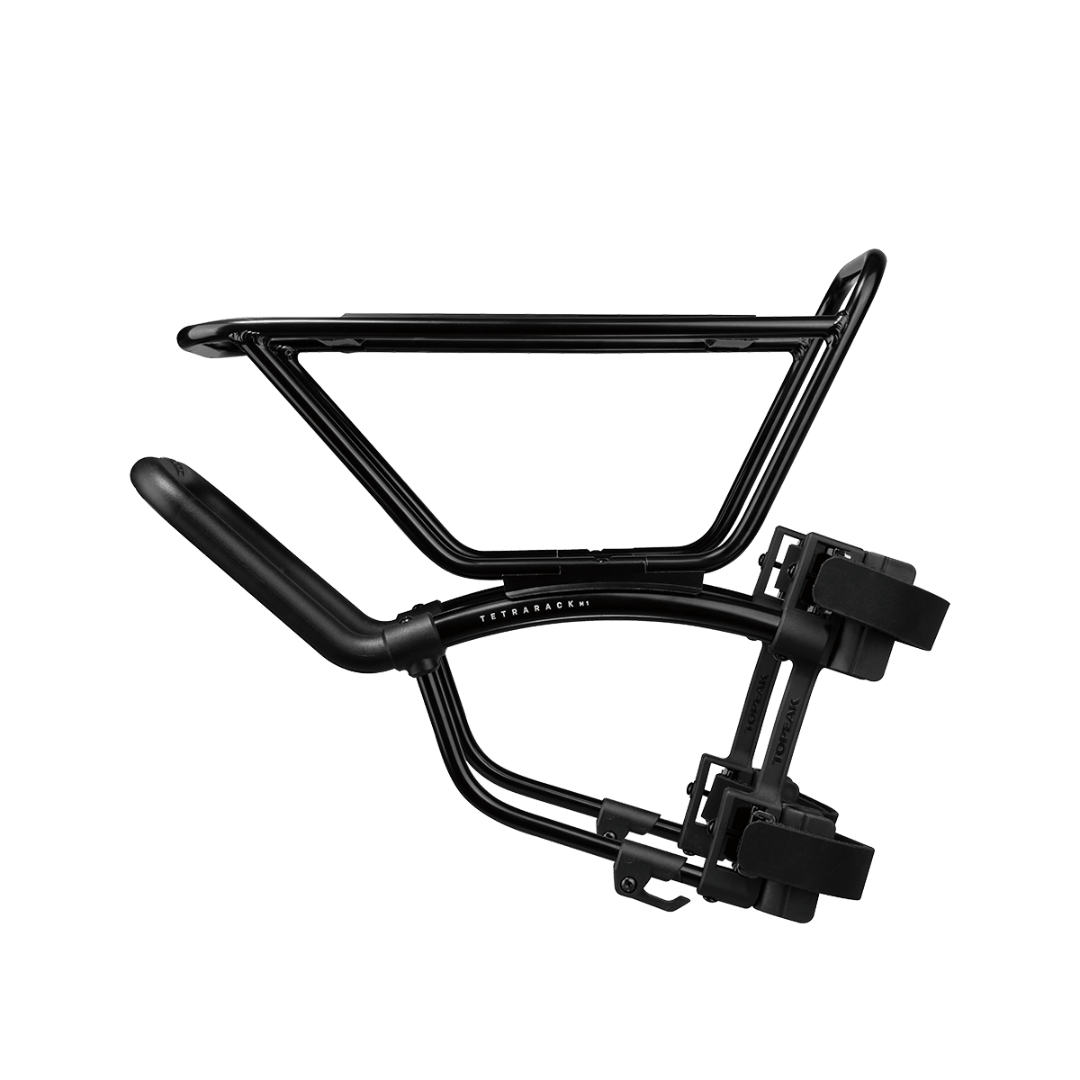

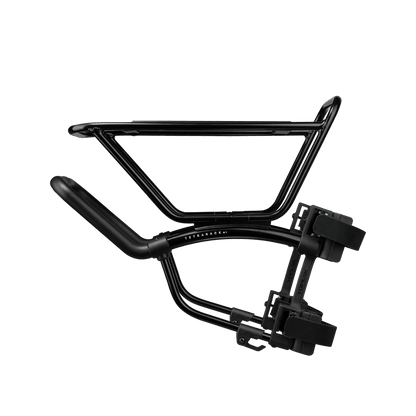

Topeak Tetrarack M1
Topeak Tetrarack M1

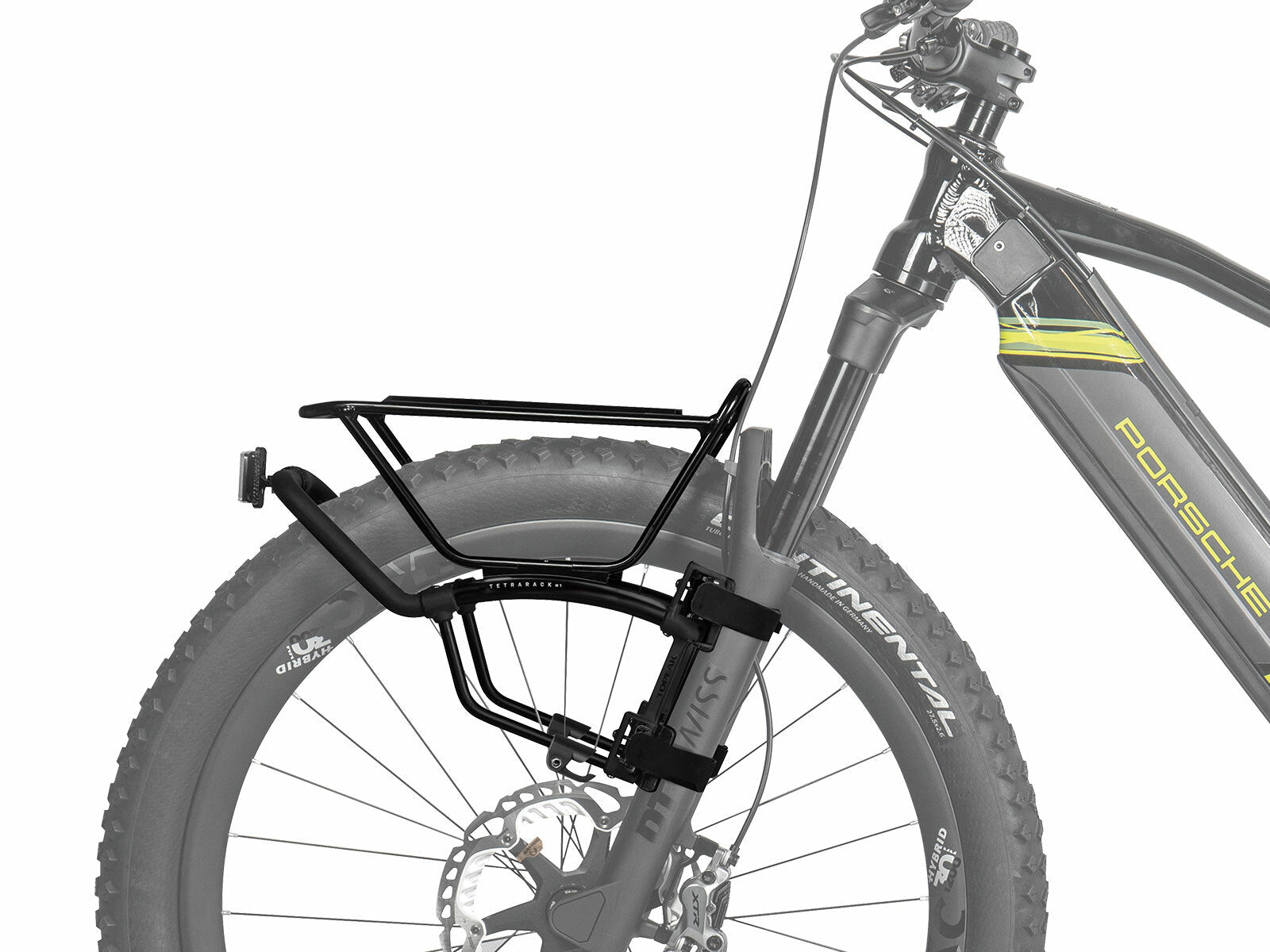

The perfect quick-mount front rack system for MTB suspension forks or rigid forks without rack eyelets. This one-size-fits-all front rack features an innovative top plate that adjusts to a level independent of the fork angle. Integrated QuickTrack® system allows Topeak TrunkBags to slide and lock into place and release with the push of a button. Innovative hook and loop strap mounting system cinches down tight to keep the load stable and allow mounting on a wide range of bikes. Also compatible with KLICKfix® / RackTime® Snapit or Vario system bags. *TetraRack is not recommended for carbon forks and seat stays
SPECIFICATIONS
| ATTACHMENTS | Fork with hook and loop straps |
| ADJUSTMENT | Strut slots |
| MATERIAL | Aluminum / Engineering grade polymer / Nylon straps |
| COMPATIBILITY | Topeak MTX / RX TrunkBags, RackTime® Snapit / Vario system bags |
| MAX LOAD | 10 kg / 22 lb |
| ADDED FEATURE | Clamp for front reflector, Tail Light Mount |
| SIZE | 37. 4 x 32.2 x 16.5 cm / 14.7” x 12.7” x 6.5” |
| WEIGHT | 910 g / 2.01 lb |
FEATURES
Strut slot adjustments allow the rack top plate to be level independent of the fork angle
Adjustable straps with padded feet securely attach rack to fork legs
Compatible with Topeak QuickTrack® system bags
Compatible with KLICKfix® / RackTime® Snapit or Vario system bags
Included clamp allows mounting of reflector
Compatible with front fork width within 115-145mm. Ensure not to exceed max weight capacity. ( 10kg / 22lb )
USER GUIDE
Choose your language to download TETRARACK M1
