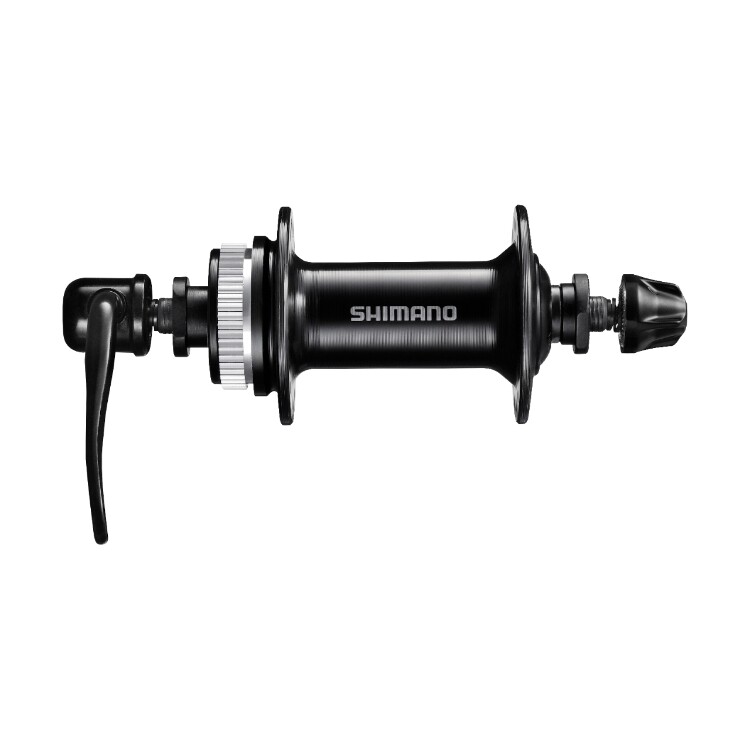

Shimano Tourney TX Front Hub Disc Brake 8/9/10-speed
SKU EHBTX505A5
₹670.00
SIZE
In stock
1
Save this product for later
Shimano Tourney TX Front Hub Disc Brake 8/9/10-speed
Product Details
Brand: SHIMANO
UPC: 689228870130
[tab name="DESCRIPTION"]
SHIMANO TOURNEY TX - Rear FREEHUB - CENTER LOCK - Disc Brake - Quick Release - 8/9/10-speed
For disc brake MTBs, the SHIMANO TX505-8 secures via a quick release.
FEATURES
- Durable, long-lasting performance
- Quality construction prevents axle bending
- Quick and easy assembly
- CENTER LOCK
[tab name="SPECIFICATION"]
| MODEL NO | HB-TX505 |
| SERIES | SHIMANO |
| Color | Black |
| Color|1 Hub shell | Black |
| Color|1 Quick release | Black |
| Brake type |
CENTER LOCK disc brake
|
| O.L.D. (mm) | 100 |
| Spoke hole|28H | ✔ |
| Spoke hole|32H | ✔ |
| Spoke hole|36H | ✔ |
| External serration disc brake rotor lock ring|without | ✔ |
| Axle fixing method |
Quick release
|
| Quick release skewer length (mm)|129 | ✔ |
| Quick release skewer length (mm)|133 | ✔ |
| Flange distance (mm) | 60.2 |
| Offset (mm) | 5.3 |
| P.C.D. left / right (mm) | 44/44 |
| Flange diameter (mm) |
52.8 (32H/36H) 53.8 (28H)
|
| Flange diameter Left/Right (mm) |
52.8 (32H/36H), 53.8 (28H)
|
| Seal | Contact |
