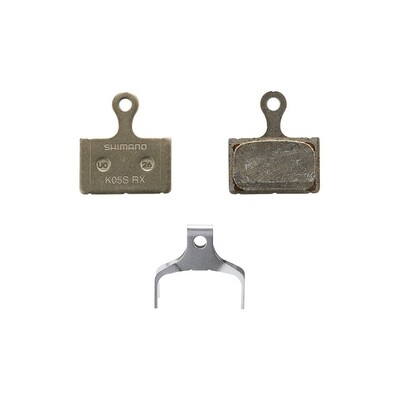

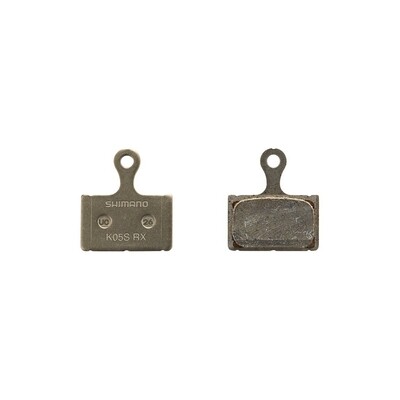

Shimano Disc Brake Pad Resin K05S-RX 1 Pair

[tab name='DESCRIPTION']

• Lining material: Resin (5th generation)
• Less noise and better modulation
• New resin friction material
• 50% better wear resistance than K03S
• 110% better wear resistance than K02S
• Without Radiator fin
• Pad shape: Narrow type, K
• Piston: For 2-piston brake caliper
• Back plate: Stainless
• 1-pair package

COMPATIBLE MODEL

BR-M9100, BR-M9110, BR-M8110, BR-R9270, BR-R8170, BR-R7170, BR-R9170-F, BR-R9170-R, BR-R8070-F, BR-R8070-R, BR-R7070-F, BR-R7070-R, BR-4770-F, BR-4770-R, BR-RS805-F, BR-RS805-R, BR-RS505-F, BR-RS505-R, BR-RS405-F, BR-RS405-R, BR-RS305-F, BR-RS305-R, BR-U5000, BR-RX810-F, BR-RX810-R, BR-RX400-F, BR-RX400-R

COMPATIBLE SERIES

XTR M9100 Series, DEORE XT M8100 Series, DURA-ACE R9150 Series, ULTEGRA R8050 Series, SHIMANO 105 R7100 Di2 Series, SHIMANO 105 R7000 Series, TIAGRA 4700 Series, METREA U5000 Series, GRX 11-speed, GRX 10-speed, CYCLOCROSS / ON-ROAD DISC BRAKE, SHIMANO

[tab name='TECHNICAL FEATURE']

Technical features for SHIMANO disc brake pad

Resin pad

• Flexible compound
• Less noise
• Focus on controllable performance
• Designed for dry and wet conditions

Metal pad

• Rigid compound
• Longer service life
• High power in severe conditions
• Designed for muddy and sandy conditions

New resin friction material

• Consistently smooth and quiet braking operation
• Predictable braking power

The durability of the resin pad has increased by 40% from MY19 (3rd generation). In addition, with this change (5th generation), the durability has been further increased by 50%. This change only applied to the brake pad for the 2-piston brake caliper.

How to read model no.

①	Pad shape
②	Lining generation
③	Back plate material A= Alloy S= Stainless Ti= Titanium C= Composite (Alloy & Stainless)
④	Lining material R= Resin M= Metal
⑤	With or without radiator fin X= Without fin F= With fin

Pad life comparison

Resin disc brake pad

Previous model	Current model	New model
	40% durability up against old model	50% durability up against current model
B01S	B03S	B05S-RX
G02A	G03A	G05A-RX
G02S	G03S	G05S-RX
J02A	J03A	J05A-RF
K02Ti	K03Ti	K05Ti-RX
K02S	K03S	K05S-RX
L02A	L03A	L05A-RF
D01S	D03S-RX	–
H01A	H03A-RF	–
–	N03A-RF	–
