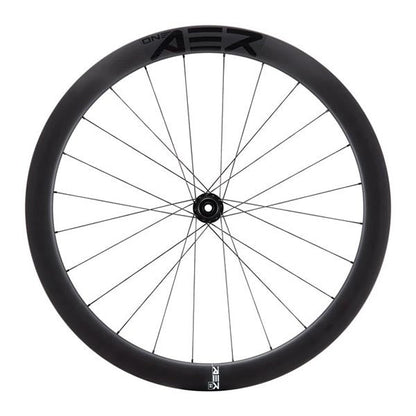

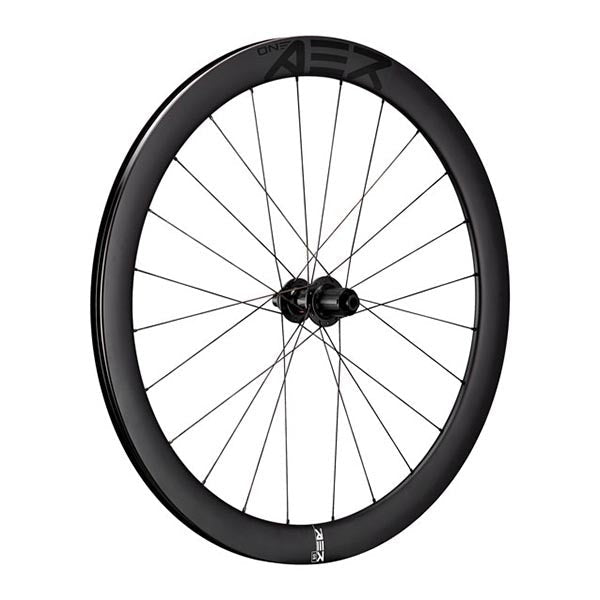

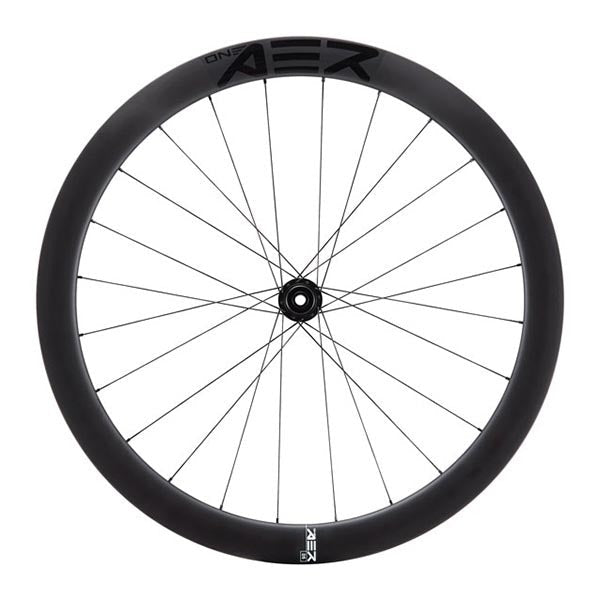

ONEAER D5

The ONEAER D5 features 48mm deep rims, balancing strength and weight for optimal performance on climbs and descents. Tubeless ready for better compliance and less rolling resistance, allowing you to pedal fast and sharp.

Features

• Weight: 1660 grams
• Rim Height: 48 mm
• Brake Type: Disc Brake
• Tubeless Ready (TLR): Yes
• Clincher (inner-tubes): Yes
• Hub: DT SWISS 370
• Spoke: Pillar Double Butted

Specifications

General

• Weight (± 3%): 1660 g
• Front / Rear Weight: 780 / 880 g
• Brake Type: Disc Brake
• Tubeless Ready: Yes
• Clincher (inner-tubes): Yes
• Maximum Rider Weight: 120 kg

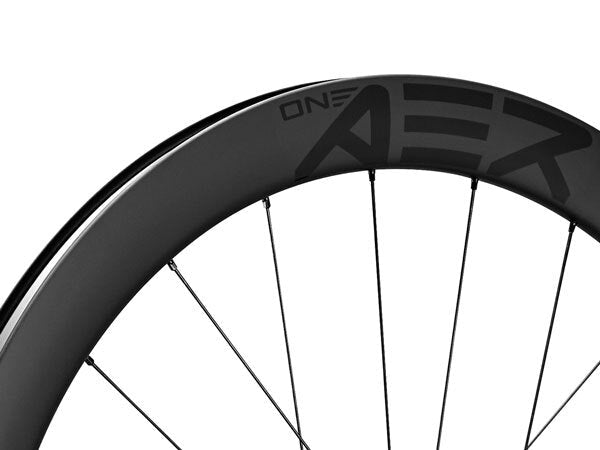

Rim

• Material: 100% Carbon Fiber
• Height: 48.1 mm
• External Width: 26.3 mm
• Internal Width: 20.1 mm
• Recommended Tire Width: 700 x 25 ~ 32c
• Maximum PSI / Bar: 120 / 8.3
• Outer Spoke Holes: Yes (Rim Tape Required)

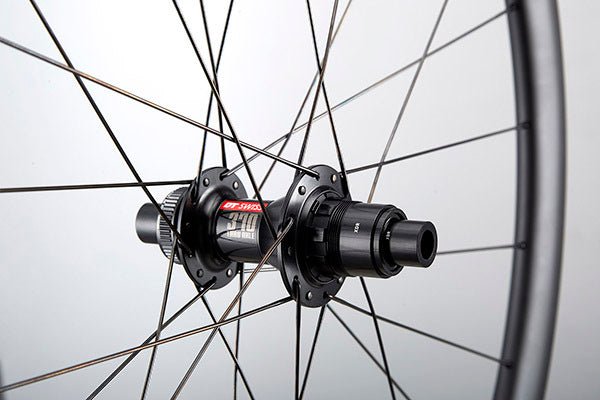

Hub

• Model: DT SWISS 370
• Type: J Band
• Break Interface: Center Lock
• Axle System: 12 x 100 / 12 x 142 mm
• Freehub System: 3 Pawl
• Cassette Body: SHIMANO 11-12s, SRAM XDR 12s

Spoke

• Model: Pillar Double Butted
• Front / Rear Count: 24 / 24
• Material: Black Stainless
• Nipple: External Type Alloy

Additional Information

All of our wheels are handcrafted and quality controlled by experienced builders. Each wheel comes with an ID certificate and technical data accessible via QR code.
