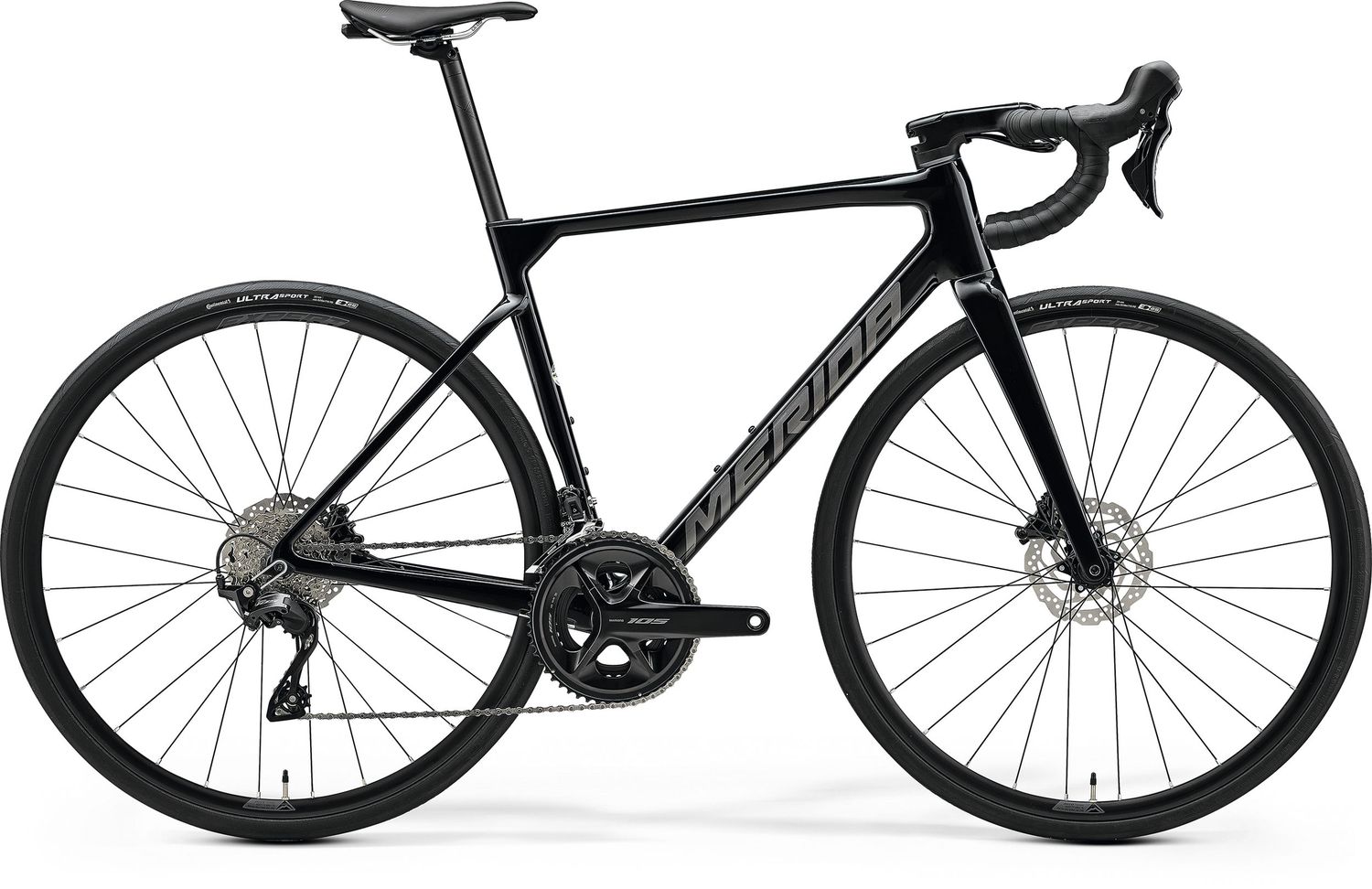

Pairing our carbon frame with Shimano's electronic Di2 105 groupset, the SCULTURA 5000 offers incredible bang for your buck. Sharing the same build as the SCULTURA 6000 but with a budget friendly wheelset, it's ripe for upgrades - or just riding straight away.
You want nimble handling, fast acceleration, impressive comfort and low weight, but you don't want to spend the world. Look no further than our SCULTURA 5000. A lightweight CF3 full carbon frame and fork combination with World Tour proven geometry, coupled with class-leading compliance that helps reduce road buzz, and the hugely popular Shimano 105 Di2 12-speed groupset are just some of the key points that make the SCULTURA 5000 a real winner.
The fifth generation of our lightweight racer marries outstanding handling with improved comfort and an even more aerodynamic chassis. Thanks to incorporating selected aero details from our test and award-winning REACTO aero bike, the SCULTURA is the most aerodynamic version ever. Yet, it remains true to its lightweight, agility and rider comfort focus; in fact it takes these factors to the next level, so far that Cycling Weekly gave it the highly sought after 'Best Value Race Bike of the Year 2024' award. The SCULTURA demonstrates outstanding compliance, providing the rider with class-leading riding comfort that will help to keep the body fresh for the final sprint or ascent. Available in CF5 and CF3 carbon frame versions, both sharing their geometry with the World Tour proven REACTO, our classic road bike combines outstanding comfort with whippet-like acceleration and class-leading climbing pedigree.
Component | Details |
Brakes | Shimano 105 (Hydraulic Disc) |
Frame |
SCULTURA CF3 V (Carbon, 700x30C max wheelsize, 100x12/142x12mm axle standard, Pressfit 86.5)
|
Frame Size | 3XS, XXS, XS, S, M, L, XL |
Fork | SCULTURA CF3 Disc (Carbon, 700x30C max wheelsize) |
Color | Metallic Black (Gunmetal Grey) |
Front Derailleur | Shimano 105 Di2 |
Rear Derailleur | Shimano 105 Di2 |
Rotors | Shimano RT64 (160mm) |
Shifter Front | Shimano 105 disc Di2 |
Shifter Rear | Shimano 105 disc Di2 |
Brake Lever | Shimano 105 |
Brake Front | Shimano 105 (Hydraulic Disc) |
Brake Rear | Shimano 105 (Hydraulic Disc) |
Chain | Shimano M6100-12 |
Crank |
Shimano 105 R7100 (52-36 teeth, Length: 165 mm (3XS-XXS), 170 mm (XS), 172.5 mm (S/M/L), 175 mm (XL))
|
Freewheel | Shimano 105 R7101 (11-34 teeth, 12-speed) |
Tyre Front | Maxxis Highroad (700x28C, Fold, Tubeless Ready) |
Tyre Rear | Maxxis Highroad (700x28C, Fold, Tubeless Ready) |
Wheelset |
Vision Team 35 Clincher Disc (100x12mm front hub, 142x12mm rear hub, 19mm inner width, 35mm height, Centerlock, Aluminium, Tubeless Ready - tape & valves not included)
|
Handlebar Stem |
MERIDA EXPERT SL 2PII (Aluminium, -9° stem angle, Sizes: 90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL), Includes MERIDA SMART MOUNT)
|
Handlebar | MERIDA EXPERT SLII (Aluminium, 380mm (XXS-XS), 400mm (S-M-L-XL)) |
Headset | MERIDA TEAM SL (VP-MRBHB (OP-203 neck)) |
Seat Post | MERIDA EXPERT CC (27.2mm diameter, 15mm setback, Carbon) |
Saddle |
MERIDA EXPERT SL (6% recycled & 23% natural material, V-mount, Includes MERIDA minitool)
|
Approx. Weight |
8.7 kg (Weighed at frame size M; Weight may vary depending on bike size, finish, or possible specification changes due to supply chain issues)
|
Max. Weight | 120 kg |
