ENTRY-LEVEL RIDERS
FITNESS DIRT ROAD RIDING

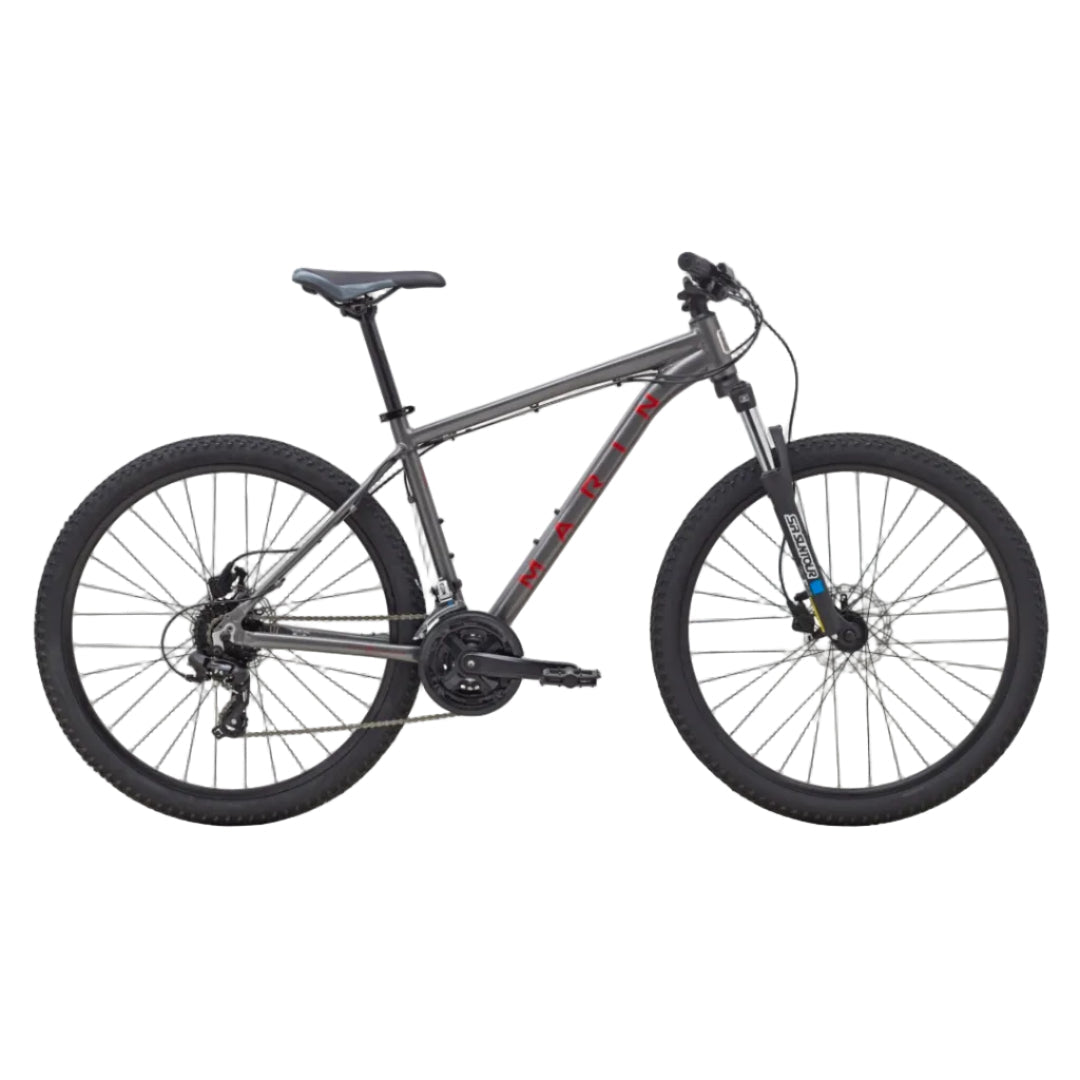

The Sky Trail is built around a Series 1 aluminium hardtail frame and SR/Suntour XCE fork with 100mm travel and preload adjustment. A smooth-shifting Shimano 3x8 drivetrain helps get you up and down the hills, while powerful hydraulic disc brakes provide smooth and steady braking.
Key upgrades over the Bolinas Ridge 1:
Frame | Series 1 6061 Aluminum, 27.5" Wheels, 68mm BB shell, 135mm Forged Dropouts, Disc Brake |
Front Suspension | SR Suntour XCE, 100mm Travel, Preload Adjustment |
Rim | Double-Wall Alloy Rims 32H |
Hub Rear | QR Alloy Hubs |
Hub Front | QR Alloy Hubs |
Spokes | Stainless Steel |
Tires | MTB. 27.5 x 2.1" |
Derailleur Rear | Shimano RD-TX800, 8-Speed |
Derailleur Front | Shimano Altus FD-M313 |
Shift Lever | Shimano Altus SL-M315, 3x8 Speed |
Crankset | Forged Aluminum, 42x34x24T, 170mm |
Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
Chain | KMC |
Cassette | Shimano Altus CS-HG200, 11-32T, 8 Speed |
Brakes Front | Alhonga HJ-OD07, Hydraulic Disc, 160mm Rotor, Shimano M515 Pad Compatible |
Brakes Rear | Alhonga HJ-OD07, Hydraulic Disc, 160mm Rotor, Shimano M515 Pad Compatible |
Brake Levers | Alhonga Hydraulic |
Handlebar | Allov. 20 mm rise. 740 mm wide |
Stem | Alloy, 45mm |
Grips | Entity MTB |
Headset | Zero Stack (ZS) Threadless. ZS 44/28 6 | 44/30 |
Seatpost | Alloy. 27.2mm |
Saddle | Entity MTB |
Pedals | Flat Platform (Included) |
[tab name= "GEOMETRY"]
S | M | L | |
STACK | 610 | 610 | 650 |
REACH | 383.5 | 398.5 | 417 |
HEADTUBE ANGLE | 69° | 69° | 69° |
HEADTUBE LENGTH | 100 | 100 | 105 |
SEATTUBE ANGLE | 73° | 73° | 73° |
SEATTUBE LENGTH | 406 | 456 | 506 |
TOPTUBE EFFECTIVE | 570 | 585 | 605 |
BB HEIGHT | 299 | 299 | 299 |
BB DROP | 47 | 47 | 47 |
CHAINSTAY | 430 | 430 | 430 |
WHEELBASE | 1072 | 1087 | 1107 |
STANDOVER HEIGHT | 713 | 753 | 793 |
FORK OFFSET | 46 | 46 | 46 |
SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 |
HANDLEBAR WIDTH | 740 | 740 | 740 |
STEM LENGTH | 45 | 45 | 45 |
CRANK LENGTH | 170 | 170 | 170 |
