URBAN WARRIOR
OUT OF THE BOX RIDING

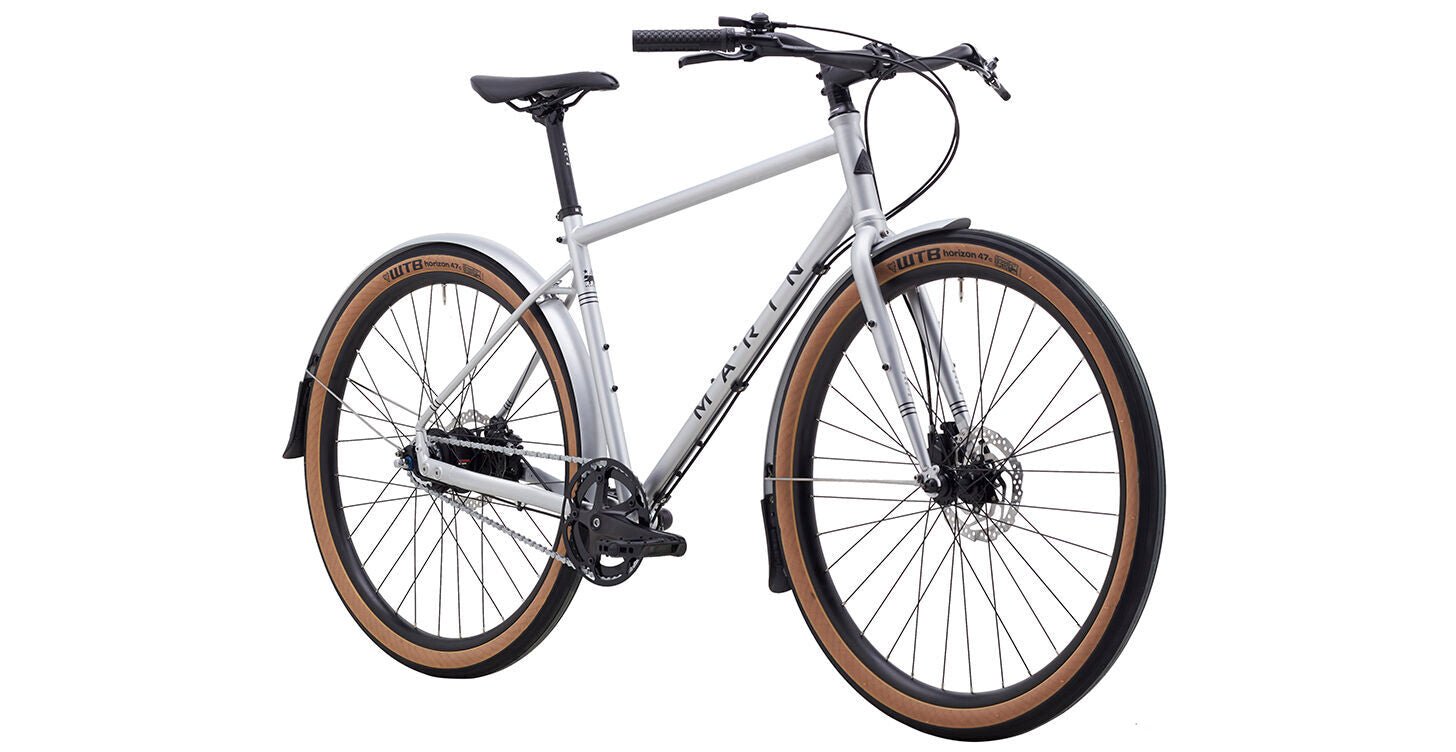

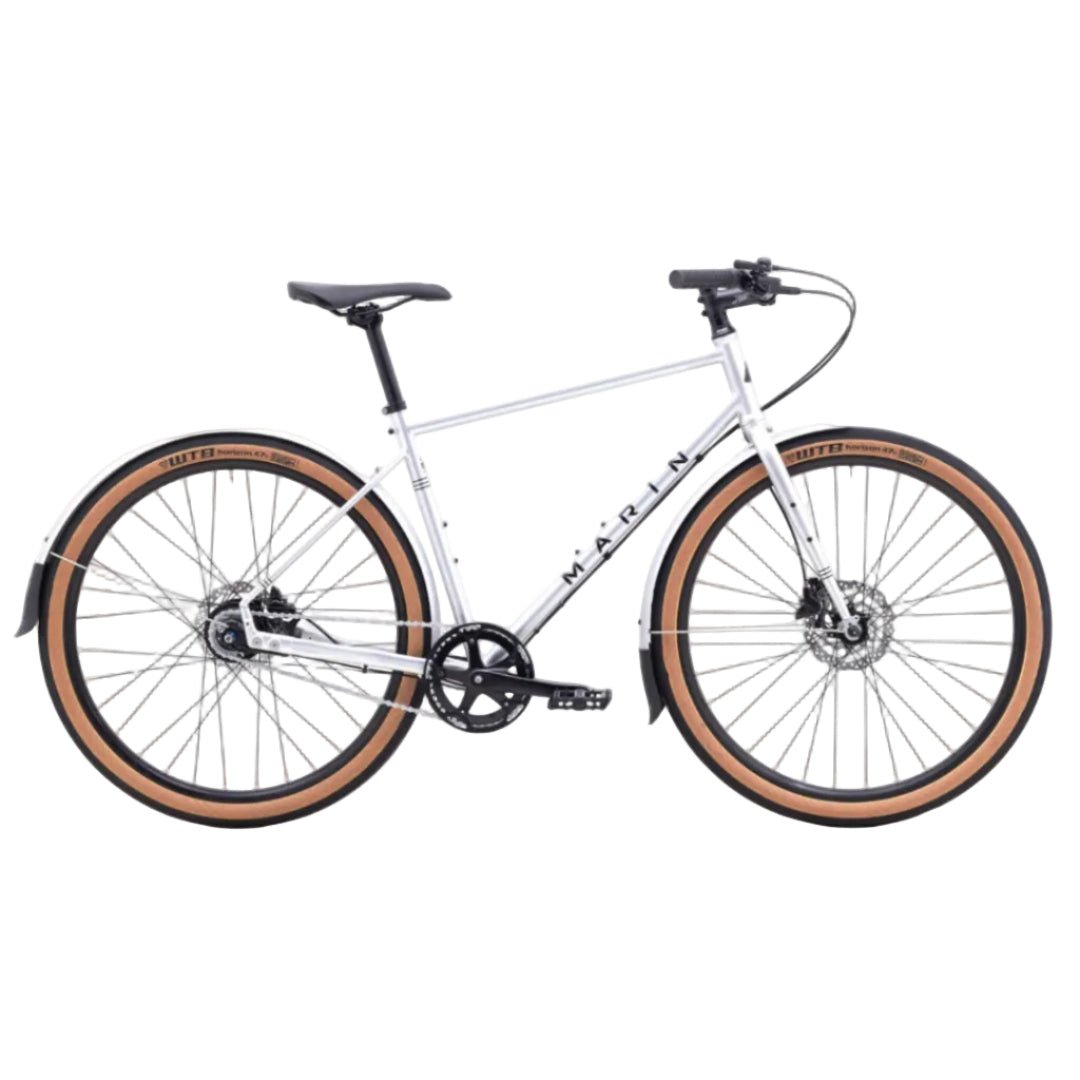

The Muirwoods RC is the ultimate mountain bike based commuter with a Series 2 CrMo frame featuring new slider dropouts for chain tensioning, an internally geared 8-speed Shimano Nexus hub, and 650Bx47mm “Road Plus” tires that accelerate quickly and roll almost as fast as skinnier road tires while eating up potholes and curbs.
[tab name= " SPECIFICATIONS"]
FRAME |
Series 2 Double Butted CrMo w/Marin Slider Dropouts, 650B Wheels, Flat Mount Disc Brake, Fender and Rack Mounts, Rear Kickstand Mount
|
FORK |
CrMo, Fender and Rack Eyelets, IS Disc Mount
|
RIMS |
Marin Aluminum Double Wall, 27mm Inner, Disc Specific
|
HUB, REAR |
Shimano Nexus 8-Speed Internally Geared Hub, Centerlock Disc, 32H
|
HUB, FRONT |
Forged Aluminum Alloy, Centerlock Disc, 32H
|
SPOKE, NIPPLES |
14g Black Stainless Steel |
TIRES |
WTB Horizon, 650Bx47mm, Wire Bead
|
DERAILLEUR, REAR | - |
DERAILLEUR, FRONT | - |
SHIFT LEVER |
MicroSHIFT 8-Speed Thumb Shifter
|
CRANKSET |
Forged Aluminum, Alloy Ring Guard, 42T
|
BOTTOM BRACKET |
Sealed Cartridge Bearings, Square Taper
|
CHAIN | KMC Z410RB w/ Anti-Corrosion Coating |
CASSETTE |
Shimano Nexus Cog, 19T |
BRAKE, FRONT |
Shimano BR-M201 Hydraulic Disc, 160mm Rotor
|
BRAKE, REAR |
Shimano BR-M201 Hydraulic Disc, 160mm Rotor
|
BRAKE LEVERS |
Shimano BL-M201 Hydraulic
|
HANDLEBAR |
Marin Alloy Swept-Back City Bar, 31.8mm Clamp
|
STEM | Marin 3D Forged Alloy |
GRIPS | Marin Locking |
HEADSET | FSA No.8D, Sealed Cartridge Bearings |
SEATPOST | Marin Alloy, 27.2mm |
SADDLE |
Marin Beyond Road Concept
|
PEDALS | Commute Platform |
FENDER | Custom Extruded Aluminum Alloy w/ Stainless HardwareCustom Extruded Aluminum Alloy w/ Stainless Hardware |
Specifications, pricing, and availability are subject to change without notice.
[tab name= " SIZING AND GEOMETRY"]
SIZE GUIDE :
Size | Rider height range |
XS | 4'11" to 5'2" |
S | 5'2" to 5'6" |
M | 5'6" to 5'10" |
L | 5'10" to 6'2" |
XL | 6'2" to 6'4" |
GEOMETRY:
Size | S | M | L | |
A | Stack | 588.99 | 598.41 | 607.85 |
B | Reach | 382.43 | 377.94 | 384.26 |
C | Headtube Angle | 70.5° | 70.5° | 70.5° |
D | Headtube Length | 100 | 110 | 120 |
E | Seattube Angle | 73.5° | 73° | 73° |
F | Seattube Length | 381 | 431.8 | 482.6 |
G | Toptube Effective | 556.9 | 560.9 | 570.1 |
H | BB Height | 291 | 291 | 291 |
I | BB Drop | 60 | 60 | 60 |
J | Chainstay | 445 | 445 | 445 |
K | Wheelbase | 1054.19 | 1053.04 | 1062.7 |
L | Standover Height | 624.2 | 670.4 | 715 |
M | Fork Offset | 41 | 41 | 41 |
Seatpost Diameter | 27.2 | 27.2 | 27.2 | |
Handlebar Width | 640 | 640 | 640 | |
Stem Length | 75 | 75 | 90 | |
Crank Length | 170 | 170 | 175 |
All lengths in millimeters
